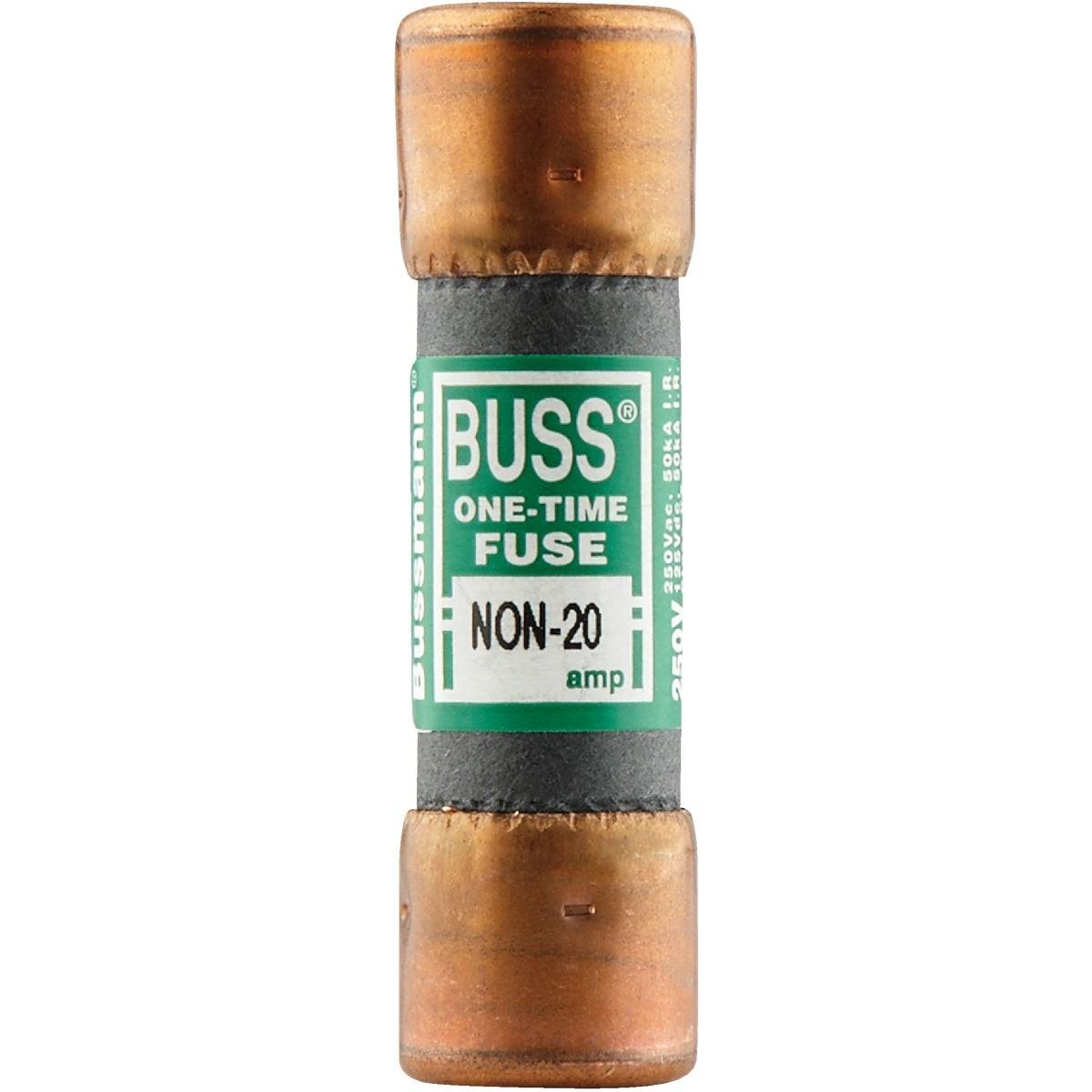

Bussmann NON-20 20A NON Cartridge Fuse

Product Description

Bussmann NON-20 is a non-current limiting fuse designed for general use. It features a 20 amp rating and is suitable for applications requiring a reliable fuse solution. The cylindrical body design enhances its compatibility across standard installations.

• Rated for 20 amps, 250 volts AC and 125 volts DC.
• Interrupt rating of 50 kA for maximum safety.
• Constructed from durable melamine material.

Product Highlights

This Bussmann fuse is ideal for light-duty circuit locations and offers a non-indicating feature for easy integration in various setups.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part No: NON-20

Technical Specifications

• Type: Non-Current Limiting
• Class: H/K5
• Series: NON
• Element: Single
• Material: Melamine
• Body Size: 0.56 in Diameter x 2 in Length
• Body Type: Cylindrical
• Voltage Rating: 250 VAC, 125 VDC
• Amperage Rating: 20 A
• Interrupt Rating: 50 kA
• Mounting Type: Holder
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Non-Rejection
• Indicating/Non-Indicating: Non-Indicating
