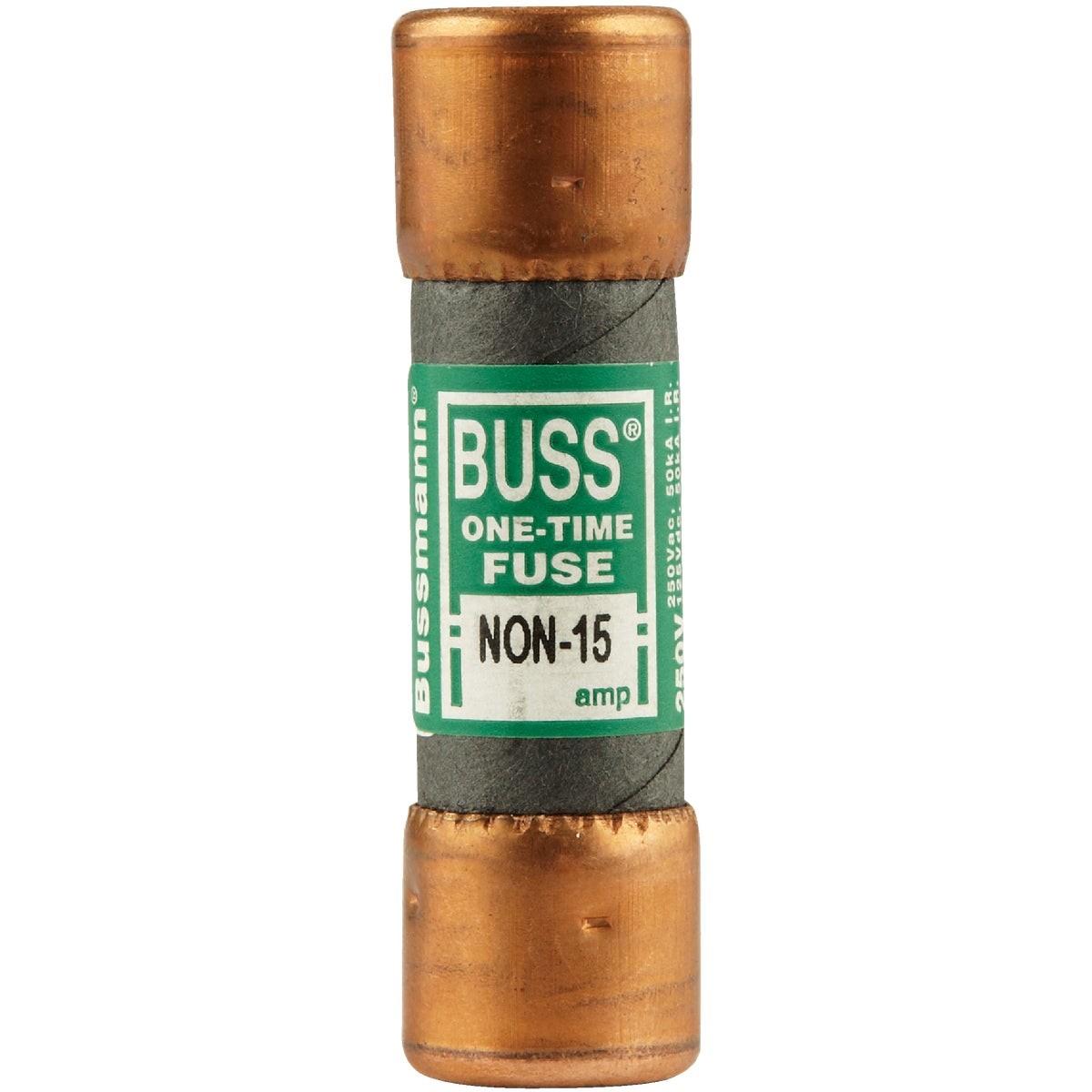

Bussmann NON-15 Bussmann 15A NON Cartridge General Purpose Cartridge Fuse

Product Description

The Bussmann NON-15 is a 15 amp general purpose fuse designed for circuits that do not experience temporary surges. It operates at a voltage rating of two hundred fifty VAC and one hundred twenty-five VDC with a fifty kA interrupt. The cylindrical body type provides a secure fit in various applications.

• Fast acting non-current limiting fuse
• Suitable for light duty circuit locations
• Available in a holder mounting type

Product Highlights

This fuse is ideal for protecting lighting and heating circuits from potential overloads. Its rejection style ensures compatibility with a variety of holders.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer Part Number: NON-15

Technical Specifications

• Body Size: 0.56 in diameter x 2 in length
• Element: Single
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 15 A
• Interrupt Rating: 50 kAIC
• Class: H
• Body Type: Cylindrical
