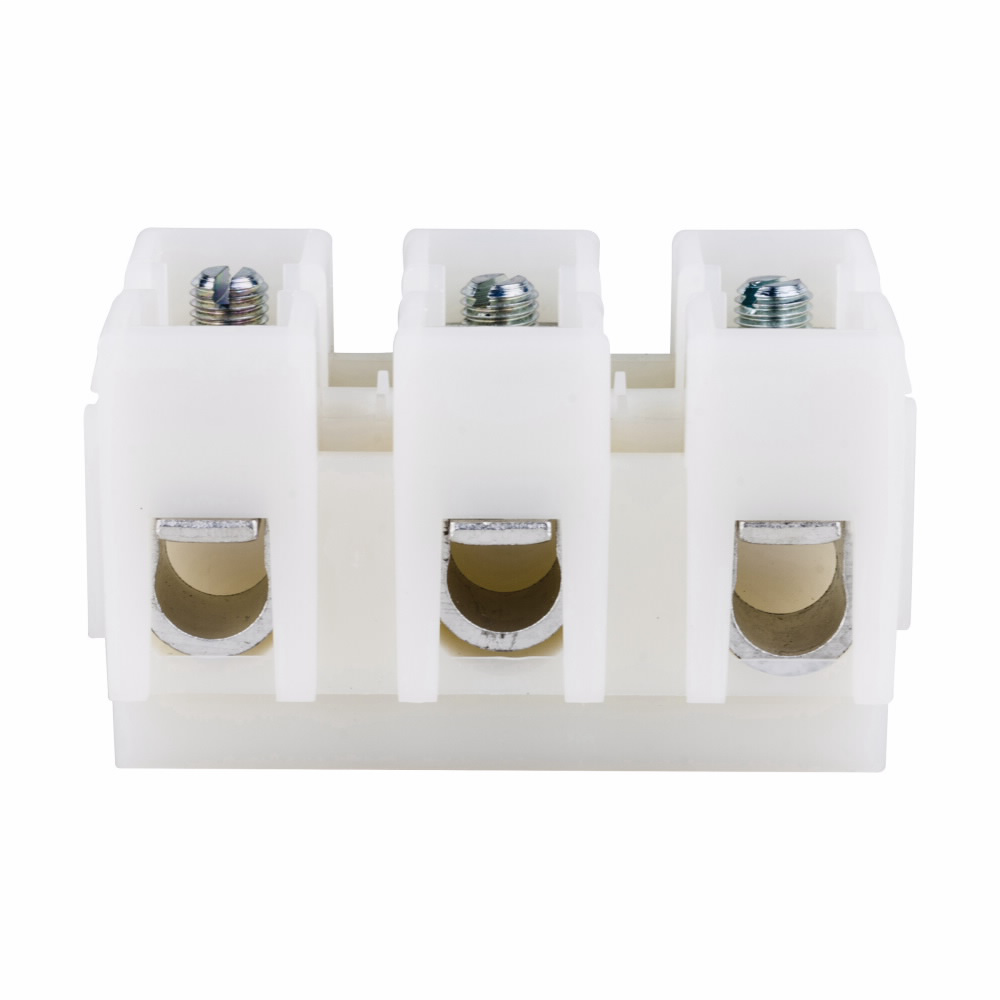

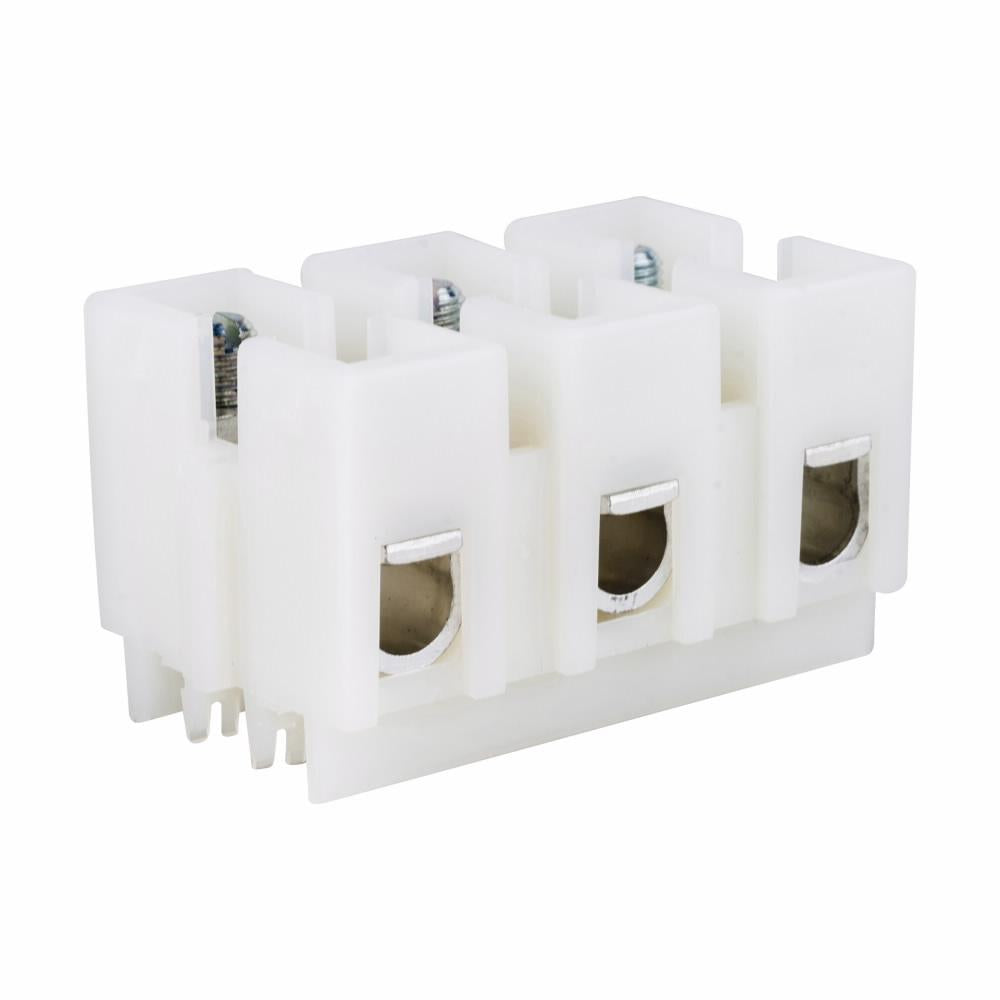

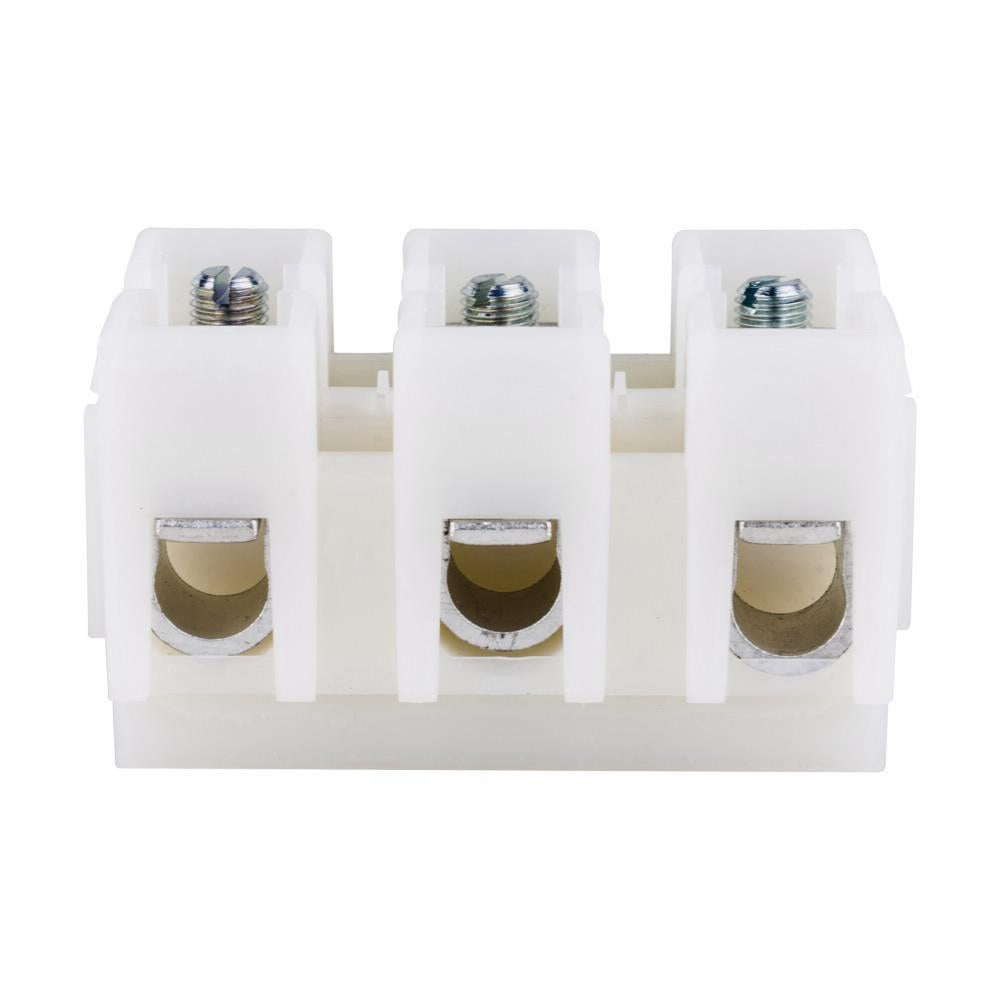

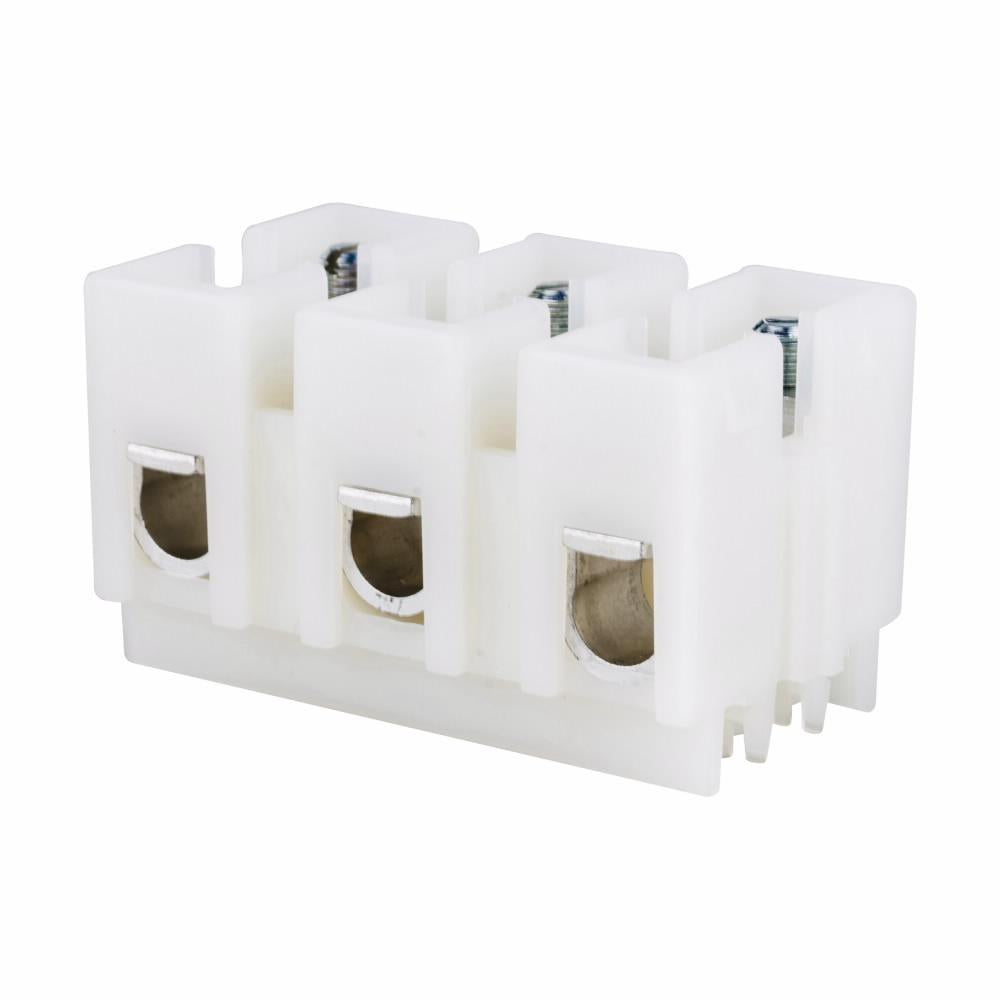

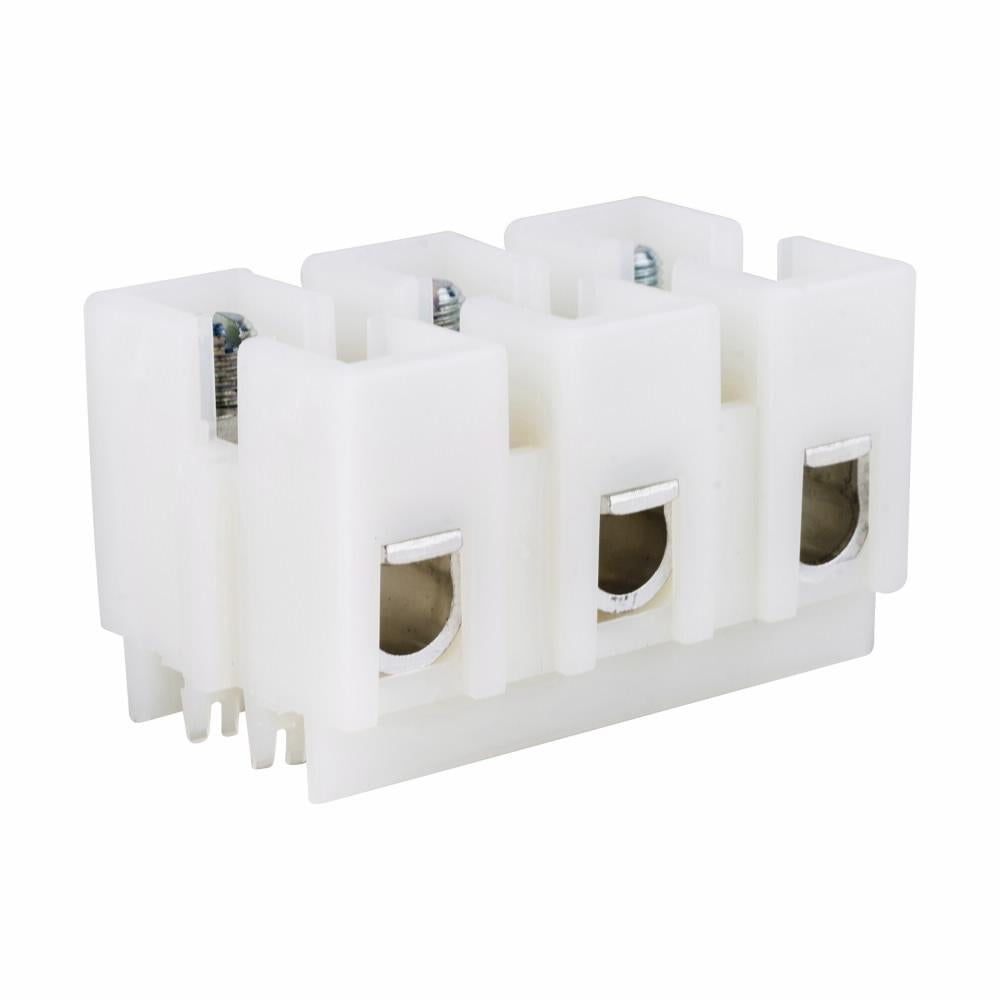

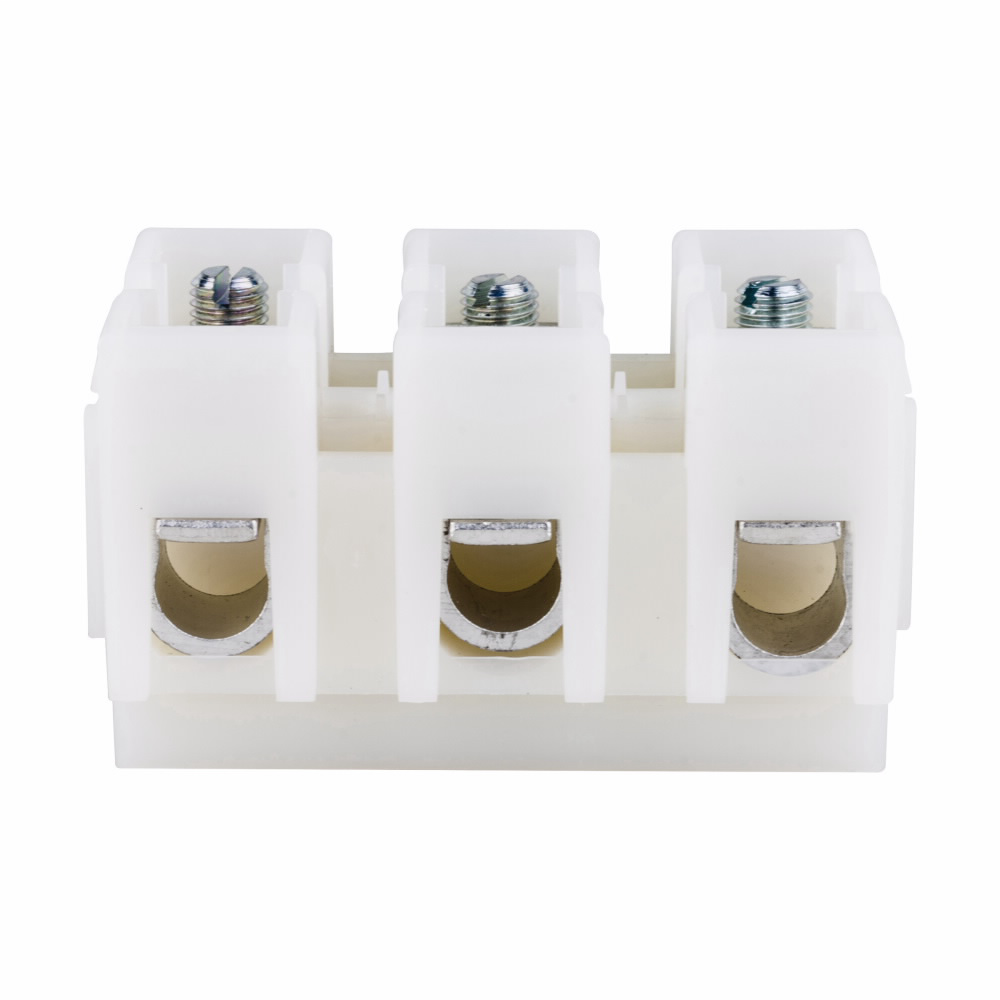

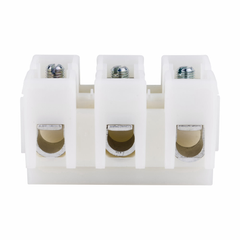

Bussmann NC3-WH Feed-Through Terminal Block 600 V 175 A 3 Poles

Product Description

The Bussmann NC3-WH is a feed-through terminal block designed for use in various wiring applications. It features three poles for secure wire connections and is compatible with wire sizes from fourteen to two AWG, including both aluminum and copper types. The block operates at a voltage of six hundred volts and a current rating of one hundred seventy-five amps.

• Compatible with 14 to 2/0 AWG Aluminum/Copper Wire
• 3 Poles with 5/16 inches-24 TPI Screw connection
• Designed for C-Rail and surface mounting

Product Highlights

This terminal block is ideal for use in control and automation setups, especially in environments such as factories. It ensures reliable connection while remaining compact. These terminal blocks are suitable for applications involving robotics and stationary machinery.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage Rating: 600 V
• Amperage Rating: 175 A
• Number of Poles: 3
• Wire Size: 14 to 2/0 AWG Aluminum/Copper
• Dimensions: 3.12 in L x 1.75 in W x 1.75 in H
• Connection Type: 5/16 inches-24 TPI Screw
• Mounting Type: C-Rail/Surface
• Temperature Rating: 105 degrees C
• Material: PVC
• Torque Rating: 45 in-lb
• Spacing: 1.06 in
