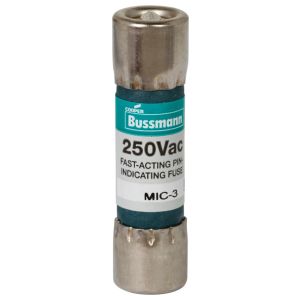

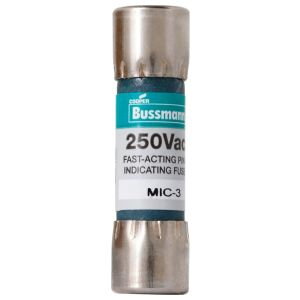

Bussmann MIC-3 MIC Series Fast Acting Supplemental Fuse Pin Indication Fiber Tube 3A 250VAC Color Code Green

Product Description

The Bussmann MIC-3 is a MIC Series fast acting supplemental fuse designed for circuit protection. This fuse operates at three amps and supports a voltage of two hundred fifty volts AC. The dimensions of the fuse are one and one-half inches in length and thirteen thirty-seconds of an inch in diameter. The color code for the fuse is green.

• Fast-acting design for reliable circuit protection
• Pin indication feature for clear status indication
• Compatible with various fuseholders and applications

Product Highlights

This fuse is suitable for both supplemental and midget fuse applications, ensuring effective performance in circuit protection tasks.

Product Information

Standard Information

• Brand: Bussmann (Eaton)
• Part Number: 88052720

Technical Specifications

• Fuse Amps: 3A
• Rated Voltage: 250V
• Fuse Interrupt Rating: 100 AIC at 250 Vac
• Length: 1.813 inches
• Width: 0.47 inches
• Height: 0.47 inches
• Shape: Rectangular
• End Type: Ferrule End x Ferrule End
• Country of Origin: MX - Mexico
• UNSPSC: 39121609
• Fuse Dimension: 1-1/2 L x 13/32 inches Diameter
