Bussmann MDL-8-R 250V SM DIM FS

Product Description

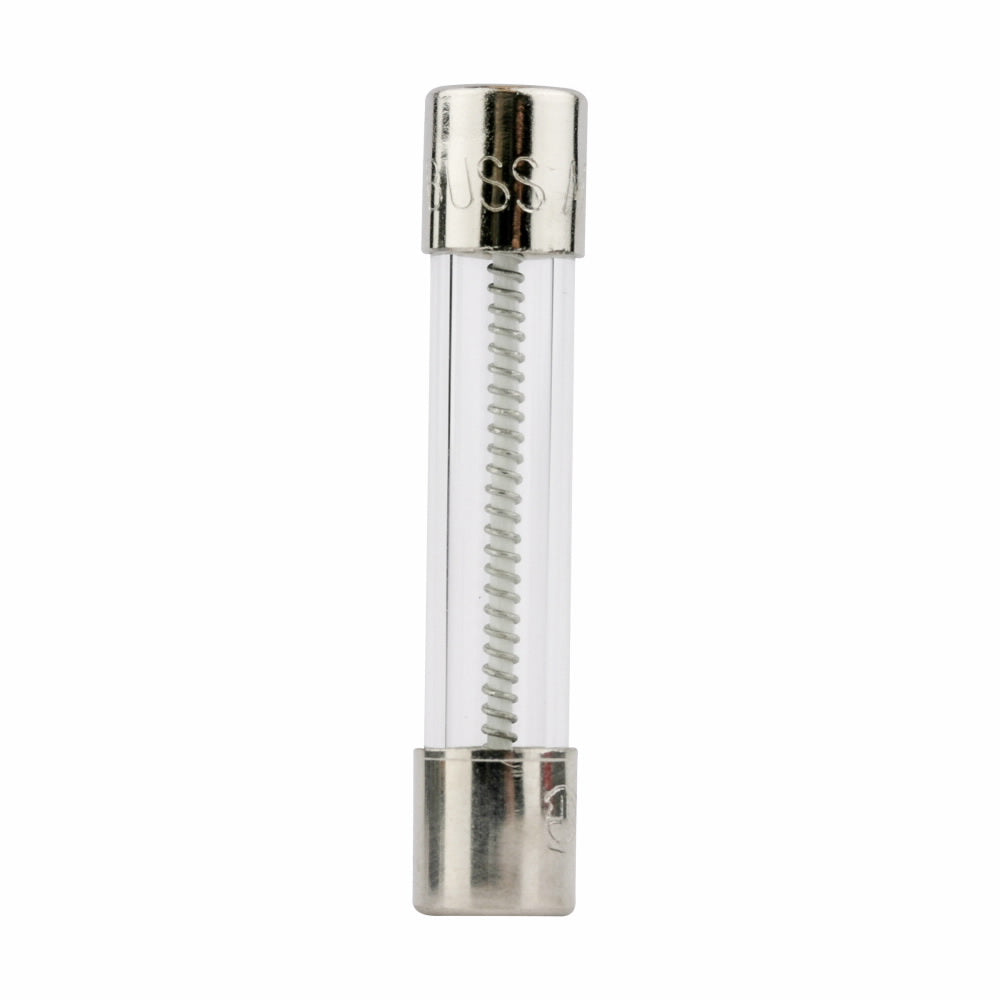

The Bussmann MDL-8-R is a reliable time-delay fuse rated for up to eight amperes, operating at 250 volts AC and 32 volts DC. This fuse is designed to protect electrical circuits and devices by delaying the circuit interruption during overload conditions.

• Time-delay functionality to manage inrush current.
• CE marked and RoHS compliant for safety standards.
• Constructed with a glass tube and nickel-plated brass end caps.

Product Highlights

This fuse provides a reliable solution for protecting safety and security systems in industrial facilities.

Product Information

Standard Information

• Manufacturer: Bussmann
• UPC: 05171265237

Technical Specifications

• Size: 1/4 inches diameter x 1-1/4 inches length
• Voltage Rating: 250 Vac; 32 Vdc
• Amperage Rating: 8 amps
• Interrupt Rating: 200 AIC at 250 Vac; 10 kAIC at 125 Vac
• Response Time: 60 minutes at 135%; 120 seconds at 200%; 5 seconds at 200%
• Connection: Ferrule end x ferrule end
• Application: Safety and security systems in industrial facilities
• Special Features: Glass tube construction; material specifications for durability
