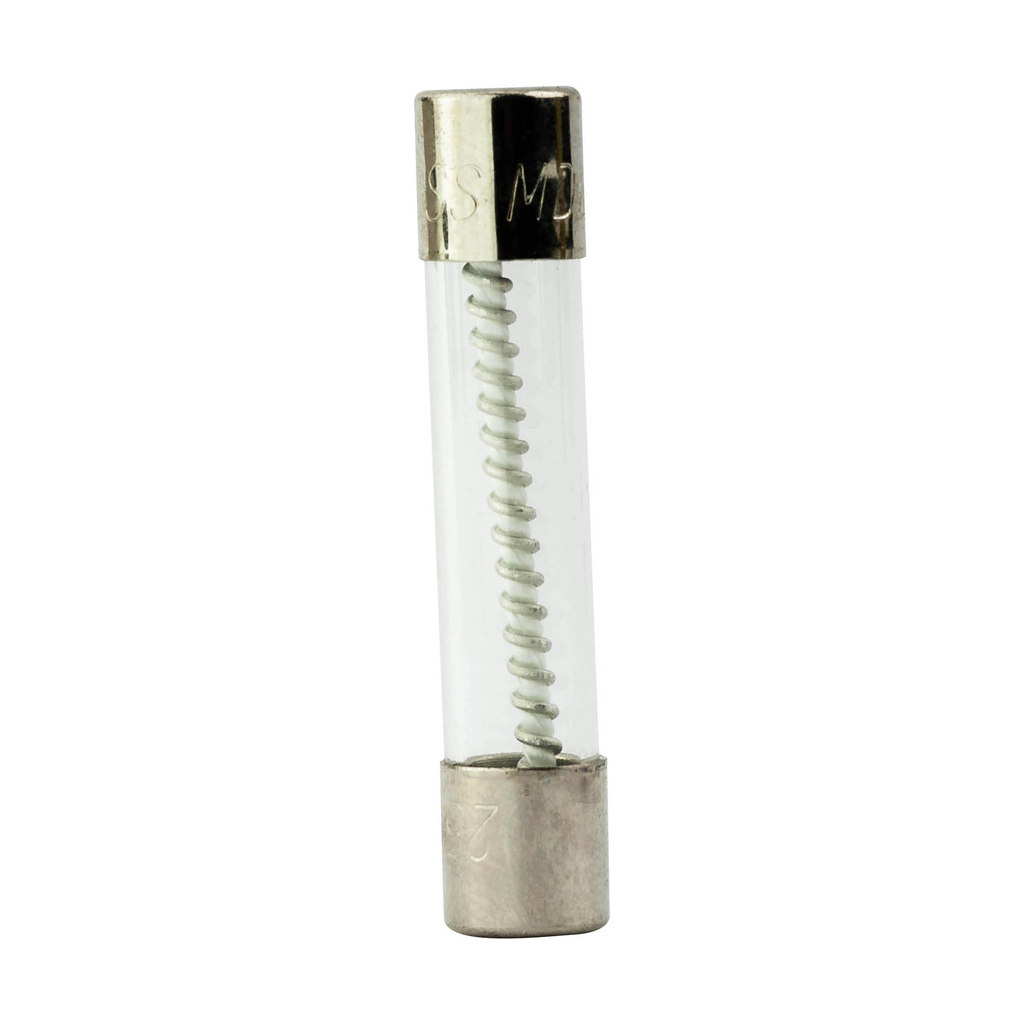

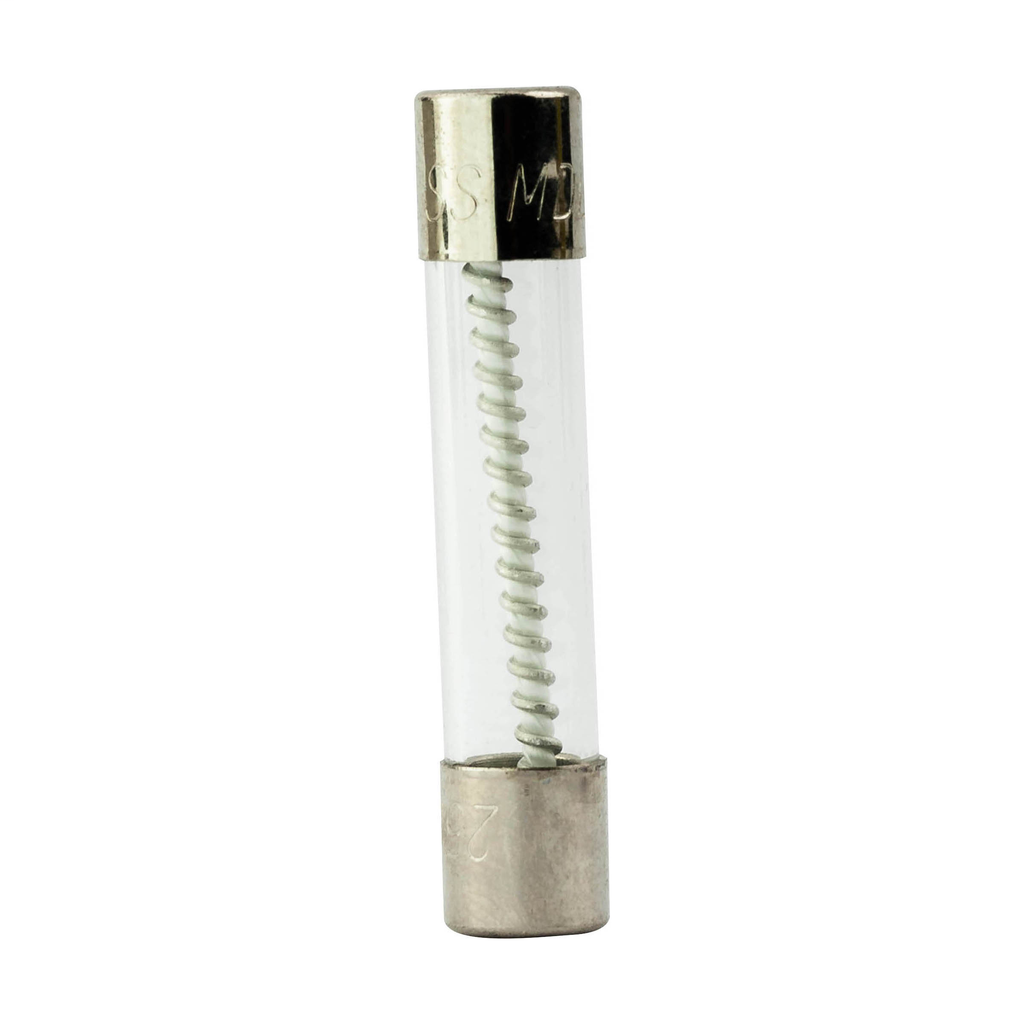

Bussmann MDL-40 Fuse 40 Amp (1/4 inches x 1-1/4 inches)

Product Description

The BUSSMANN MDL-40 is a small dimension, time-delay glass tube fuse designed for use in appliances and consumer electronic equipment. This 40A 32V fuse offers reliable circuit protection. It is suitable for electronic circuits and applications requiring a time-delay fuse. The fuse is CE, CSA, and UL 248-14 listed.

• Time Delay characteristic for handling temporary overloads
• Glass tube construction with nickel-plated brass endcaps
• Suitable for use in electronic circuits and appliances

Product Highlights

The BUSSMANN MDL-40 is a reliable time-delay fuse for electronic circuits, offering protection against temporary overloads.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDL-40
• Country of Origin: MX - Mexico

Technical Specifications

• Type: Electronic,Small Dimension
• Brand: Bussmann
• Voltage: 32 Volt
• Amperage: 40 Amp
• End Type: Ferrule
• Standard: CE,CSA,UL 248-14
• Applications: Electronic Circuits
• TC Connection: Ferrule End X Ferrule End
• Connection Type: Ferrule
• Series: MDL
• Catalog / Class: 6X32
• Speed: TIME DELAY
• SKU: MDL-40
• Category: 6 x 32mm Fuses
• Manufacturer: Eaton's Bussmann series
• Product Series: MDL
• Family Series: Eaton's Bussmann series Fuses, MDL Series
• Description: FUSE, 40A, 32V, T, 6X32mm, GLASS
• Fuse Type: Miniature
• Current Rating: 40 A
• AC Voltage: 32 VAC
• Characteristic: Time Delay
• Material: Glass
• Interrupt Rating: 1,000 A @ 32 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Diameter: 0.250 in
• Mounting: Cartridge
• Interrupt Rating AC: 10 kA
• ECCN: EAR99
• UNSPSC: 39121607
• Rated Voltage: 32V
• Fuse Amps: 40A
