Bussmann MDL-30 Fuse 30 A 32 VAC

Product Description

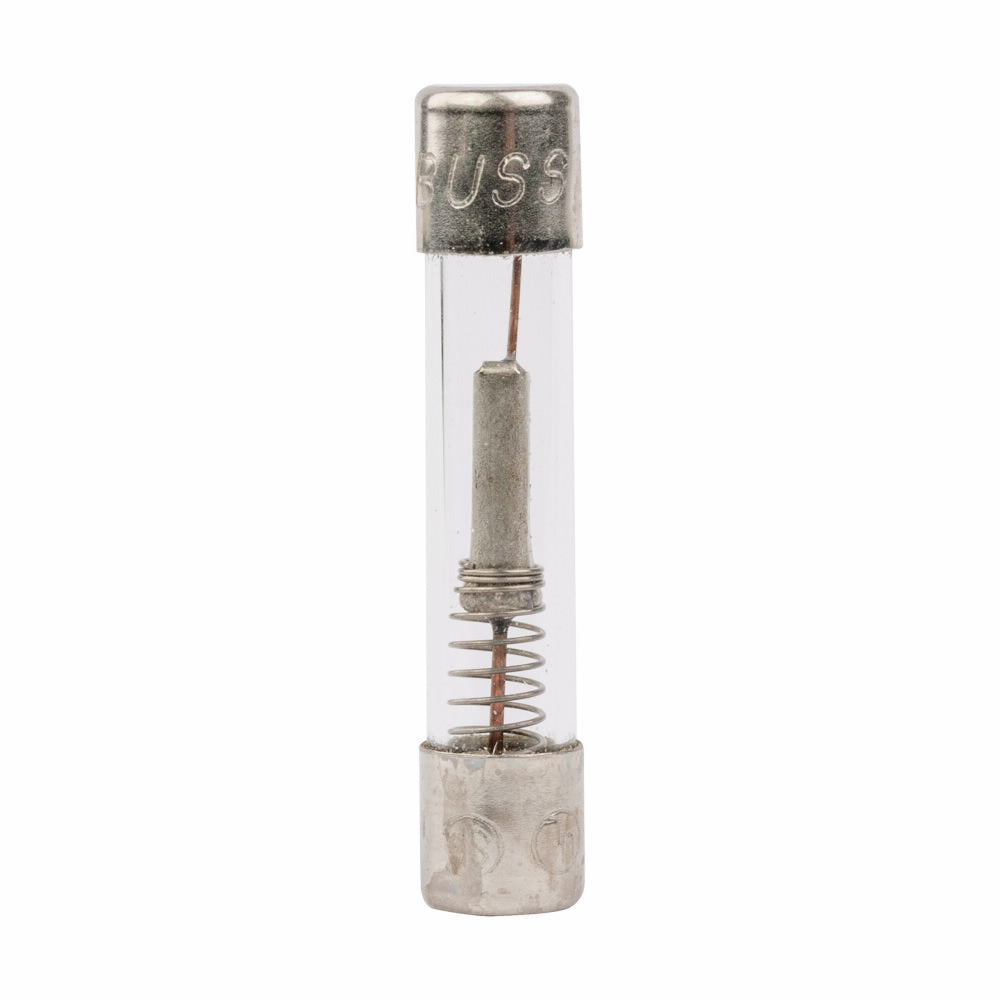

The BUSSMANN MDL-30 is a time-delay fuse designed for electronic circuit applications. Rated at 30A and 32 VAC, it features a glass tube and nickel-plated brass end cap construction. This fuse offers a 1 kAIC interrupt rating at 32 VAC and is suitable for use in appliances and consumer electronic equipment.

• Time-delay allows close sizing on inductive circuits
• Interrupt Rating 1000 Amp at 32 Vac
• Standard packaging

Product Highlights

Miniature fuse with time-delay characteristic, ideal for low voltage, general purpose applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDL-30

Technical Specifications

• IGCC: 4904
• Size: 1/4 In Diameter X 1-1/4 In Length
• Type: Time-delay fuse
• Vendor: 171200
• Material: Glass
• Connection: Ferrule end x ferrule end
• Dimensions: 1.2500 IN X 0.2500 IN X 0.2500 IN
• Application: For electronic circuit applications
• Family group: FUSES/ACCESSORIES
• Manufacturer: Bussmann
• Voltage Rating: 32 VAC
• Amperage Rating: 30 A
• Interrupt Rating: 1 kA
• Special Features: Interrupt Rating 1000 Amp at 32 Vac; Material Glass Tube; Nickel Plated Brass En
• Brand / Manufacturer: BUSSMANN FUSES
• Series: MDL
• Catalog / Class: 6X32
• Speed: TIME DELAY
• SKU: MDL-30
• Category: 6 x 32mm Fuses
• Product Series: MDL
• Description: Eaton MDL Series Time-delay fuse 30A, 32 Vac, Non-indicating, 1 kAIC at 32 Vac, Standard packaging
• Fuse Type: Miniature
• Current Rating: 30 A
• AC Voltage: 32 VAC
• Characteristic: Time Delay
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Diameter: 0.25 "
• Length: 1.25 "
• Approvals: CSA, UL
• Net Weight: 0.006 lbs
• Gross Weight: 0.006 lbs
• Mounting Type: Holder
• Body Size: 1/4 in Dia x 1-1/4 in L
• Body Style: Cylindrical
• Element: Single
• Terminal Type: Ferrule
• Standard & Approvals: UL 248-14, Guide JDYX, File No. E19180, CSA Class No. 1422-01, File No. 53787, CE Marked
