Bussmann MDL-25 Series MDL-25 25 Amp Fuse REPLACEMENT MDL-25

Product Description

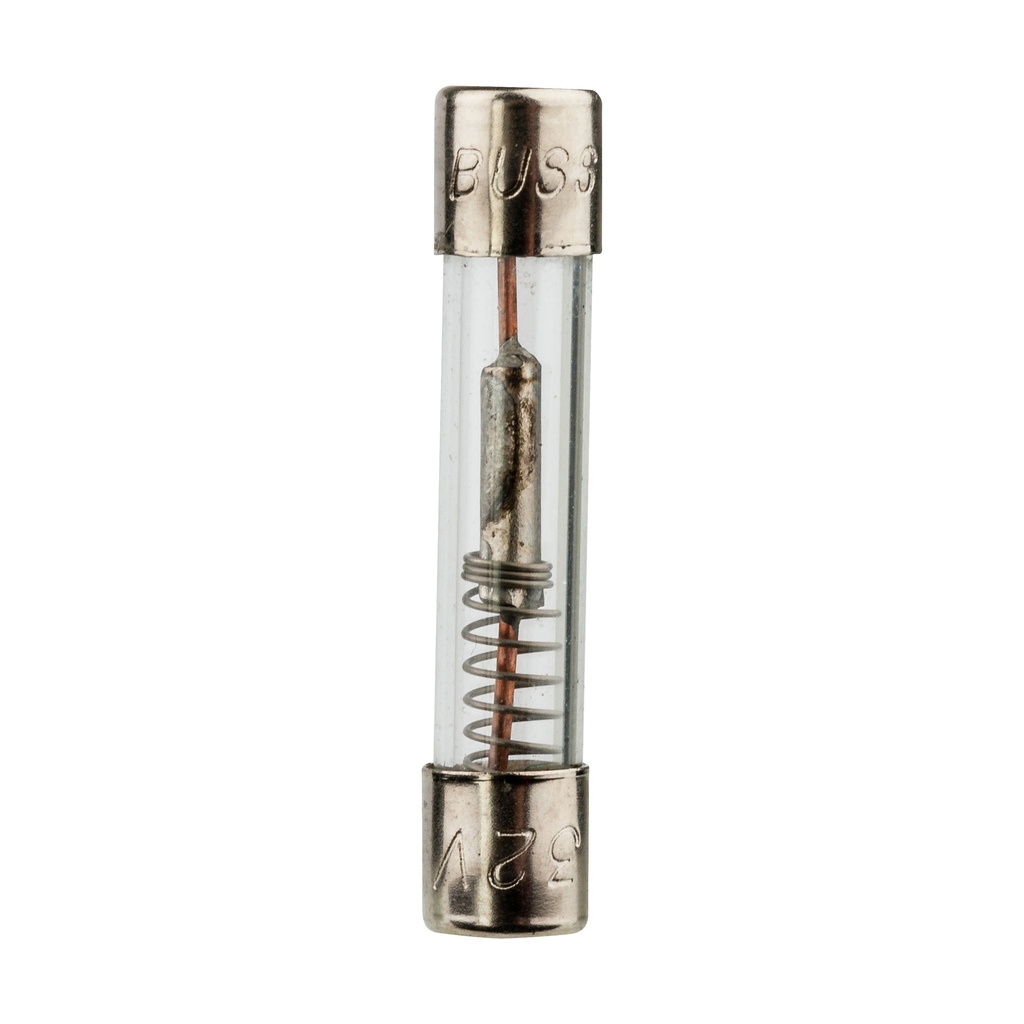

The BUSSMANN MDL-25 is a Series MDL-25 time-delay fuse rated at 25A and 32 Vac. This small dimension fuse is suitable for electronic circuits. It features a glass tube with nickel-plated brass end cap construction and ferrule end connections.

• Time-delay fuse with 25A amperage and 32 Vac voltage rating
• Small dimension fuse with 1/4 x 1-1/4 inch size
• Compliant with CE, CSA, and UL 248-14 standards

Product Highlights

The BUSSMANN MDL-25 fuse provides reliable circuit protection with a time-delay function. Its compact size and compliance with industry standards make it suitable for various electronic applications.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDL-25

Technical Specifications

• Size: 1/4 In Diameter X 1-1/4 In Length
• Type: Electronic,Small Dimension
• Brand: Bussmann
• Width: .25 in
• Height: 1/4 Inch
• Length: 1-1/4 Inch
• Voltage: 32 Volt
• Amperage: 25 Amp
• End Type: Ferrule
• Material: Glass tubeNickel-plated brass end cap construction
• Standard: CE,CSA,UL 248-14
• Sub Brand: Bussmann Series
• Applications: Electronic Circuits
• Response Time: 120 seconds maximum at 200%,60 minutes maximum at 135%
• Connection Type: Ferrule
• Interrupt Rating: 1 kAIC
