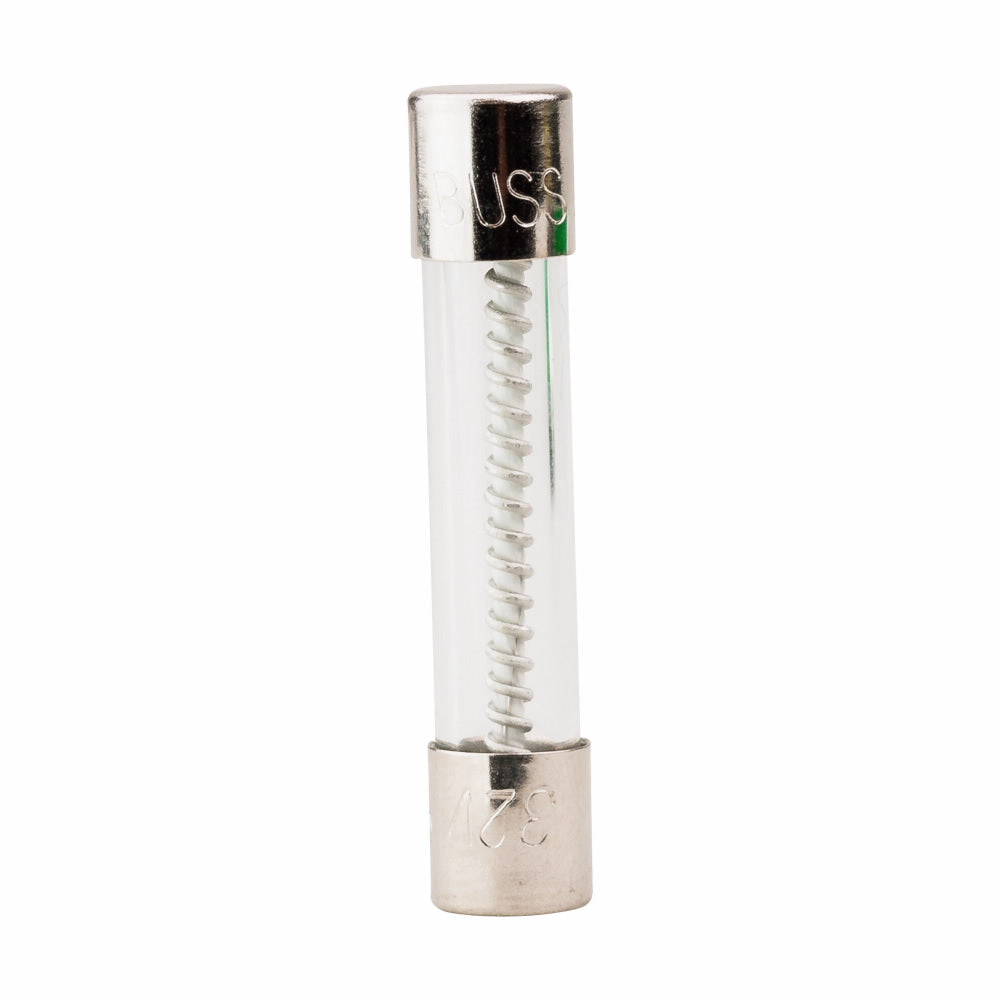

Bussmann MDL-10-R MDL-10-R 32V SM DIM TD FS

Product Description

Bussmann MDL-10-R is a time-delay fuse designed to protect electrical circuits. Rated at ten amperes and suitable for 32 volts AC and DC, this fuse is essential in ensuring operational safety in various applications. It features non-indicating properties, which help avoid false alarms in systems that monitor current flow.

• Time-delay fuse for protection against overloads
• Glass tube with nickel-plated brass end caps
• CE Marked and RoHS compliant

Product Highlights

This fuse is ideal for use in industrial facilities and security systems. It effectively prevents nuisance blowouts, thereby enhancing overall system reliability.

Product Information

Standard Information

• Vendor: Bussmann
• Application: Industrial Facilities and Safety Systems

Technical Specifications

• Amperage Rating: 10A
• Voltage Rating: 32 Vac; 32 Vdc
• Dimensions: 1/4 inch diameter x 1-1/4 inch length
• Interrupt Rating: 1 kAIC at 32 Vac
• Response Time: 60 minutes at 135%; 120 seconds at 200%; 5 seconds at 200%
• Material: Glass tube with nickel-plated brass end cap
• Special Features: Interrupt rating of 1000 Amp at 32 Vac
• Family Group: Fuses/Accessories
