Bussmann MDA-4/10-R Buss Small Dimension Fuse

EATON
Brand: EATON
SKU: MDA-4/10-R
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

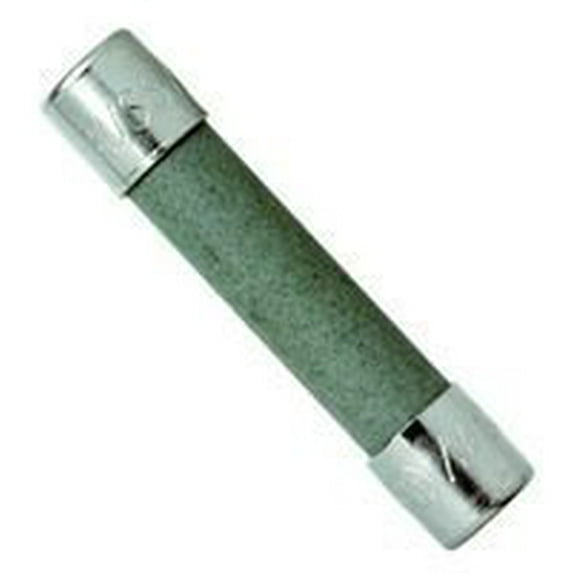

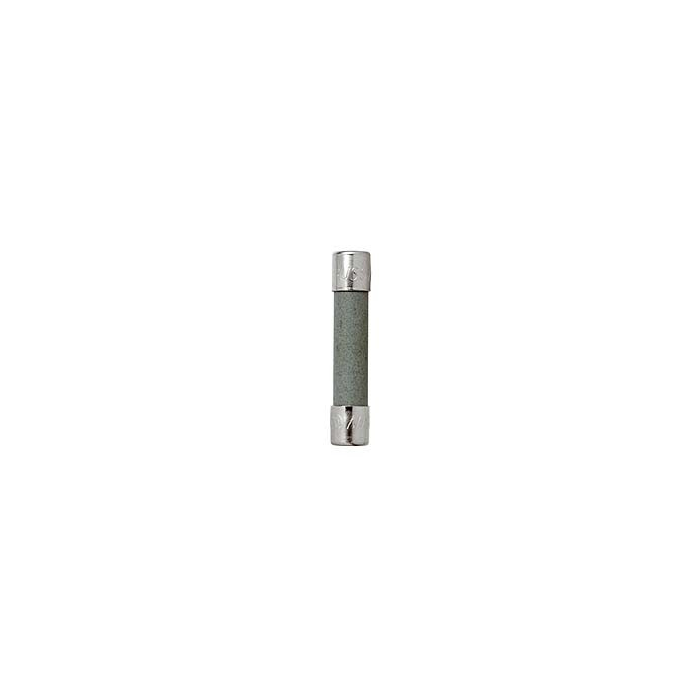

The BUSSMANN MDA-4/10-R is a small dimension fuse. This ceramic tube fuse has a time delay feature and nickel-plated bronze endcaps. It is rated for 4/10 Amp and 250 Volts AC. It has an interrupting rating of 35 AIC at 250 VAC and 10,000 AIC at 125 VAC.

  • Time Delay
  • Ceramic Tube Fuse
  • Nickel-plated bronze endcaps

Product Highlights

The BUSSMANN MDA-4/10-R fuse is ideal for protecting electronic circuits with time-delay characteristics.

Product Information

Standard Information

  • Brand: BUSSMANN
  • Manufacturer Part Number: MDA-4/10-R
  • Country of Origin: Mexico
Technical Specifications
Brand
Bussmann
Product UPC
05171264533
Amperage
4/10 Amp
Voltage
250V
Fuse Type
Ceramic Tube
Fuse Speed
Time Delay
Endcaps
Nickel-plated bronze
Physical Size
1/4" x 1 1/4"
AC Voltage Rating
250
Interrupting Rating @ 250 VAC
35 AIC
Interrupting Rating @ 125 VAC
10,000 AIC
UL Listed Card
MDA 2/10 - 20A (Guide JDYX, File E19180)
UL Recognized Card
MDA 25 - 30A (Guide JDYX2, File E19180)
CSA Certification Card
MDA 2/10 - 20 (Class No. 1422-01)
CSA Component Acceptance
MDA 25-30A(Class No. 1422-30)
Primary brand
Eaton
Secondary brand
Cooper Bussmann
Main function
Fuse
Product series / family name
LV electronic / PCB / small dimension fuses
Sub-range name
Tube fuse cartridges
Functions
Low-Voltage (LV) time-delay tube fuse cartridge
Rated current
0.4A / 400mA
Rated Voltage (DC)
32Vdc (self certified)
Rated voltage (AC)
250Vac
Short circuit breaking rating
35A (at 250Vac) 10kA (at 125Vac)
Material
ceramic (tube construction) Nickel-plated (endcaps)
Technical compatibility with
electronic circuits
Order code / Manufacturer SKU
MDA-4/10-R
Manufacturer product status
Commercialized
UPC code
051712645331
Compliant with standard(s)
UL Listed Std. 248-14 Guide JDYX File E19180 CSA Certified Class 1422-01 File 53787
RoHS compliant
RoHS 2011/65/EU compliant
CE
CE
Mfr. #
MDA-4/10-R
Mfr.
Eaton Electronics
MPN
BK/MDA-4/10-R
Country of Origin
Mexico
Model
MDA-4/10-R
Manufacturer Part Number
MDA-4/10-R
Manufacturer
Bussman
Part #
25A28061
Package Quantity
1
