Bussmann MDA-3-R Mda-3-R 3 Amps (1/4 inches x 1 1/4 inches)

Product Description

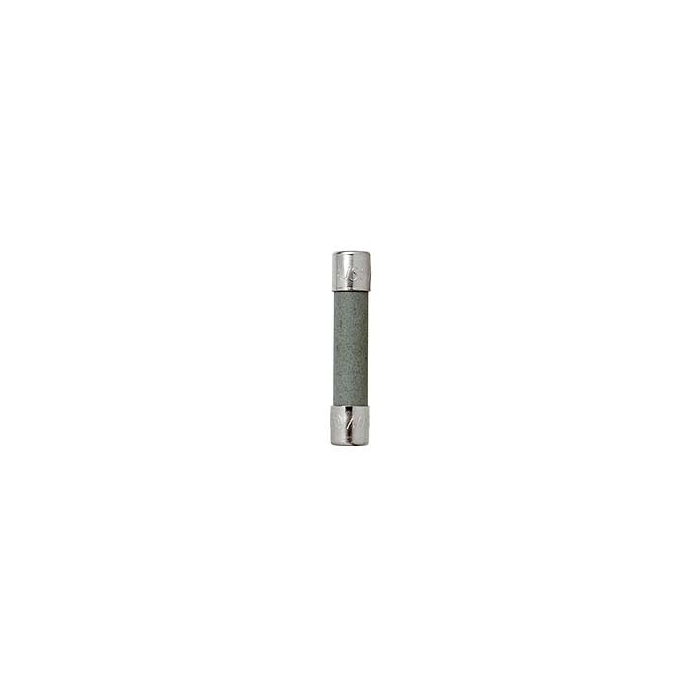

The BUSSMANN MDA-3-R is a 3 amp, 250 volt AC ceramic tube fuse with time delay functionality and nickel-plated bronze endcaps. It measures 1/4" x 1 1/4" and has an interrupting rating of 200 AIC at 250 VAC and 10,000 AIC at 125 VAC. It is suitable for electronic circuits.

• 3 Amps, 250 Volts AC
• Ceramic Tube Fuse
• Time Delay

Product Highlights

This time-delay fuse is ideal for protecting electronic circuits, with a ceramic tube and nickel-plated bronze endcaps for durability.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDA-3-R

Technical Specifications

• Amps: 3
• Voltage: 250 Volt
• Fuse Type: Time Delay
• Material: Nickel-plated brass end cap constructionCeramic tube
• Body Material: Nickel-plated bronze endcaps
• Size: 1/4 In Diameter X 1-1/4 In Length
• AC Voltage Rating: 250
• Interrupting Rating @ 250 VAC: 200 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• Amperage: 3 Amp
• Applications: Electronic Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 10 kAIC
• Response Time: 120 sec Maximum at 200%, 60 min Maximum at 135%
• Standard: CE,CSA,UL 248-14
• TC Connection: Ferrule
• Type: Time Delay
• Brand: Cooper Industries, LLC
• Sub Brand: Bussmann
• Construction: Ceramic Tube, Nickel-Plated Brass End Cap
• GTiN: 00051712645263
• Product UPC: 05171264526
