Bussmann MDA-2-R Mda-2-R 2 Amps

Product Description

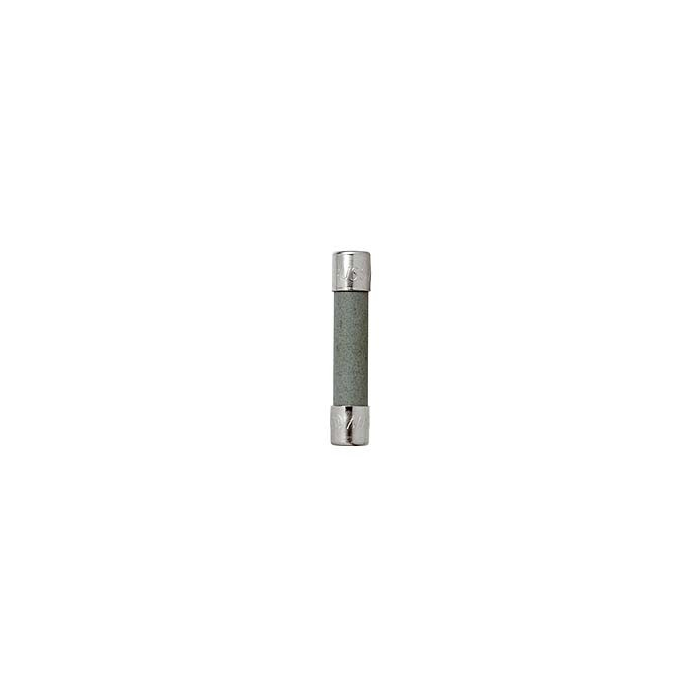

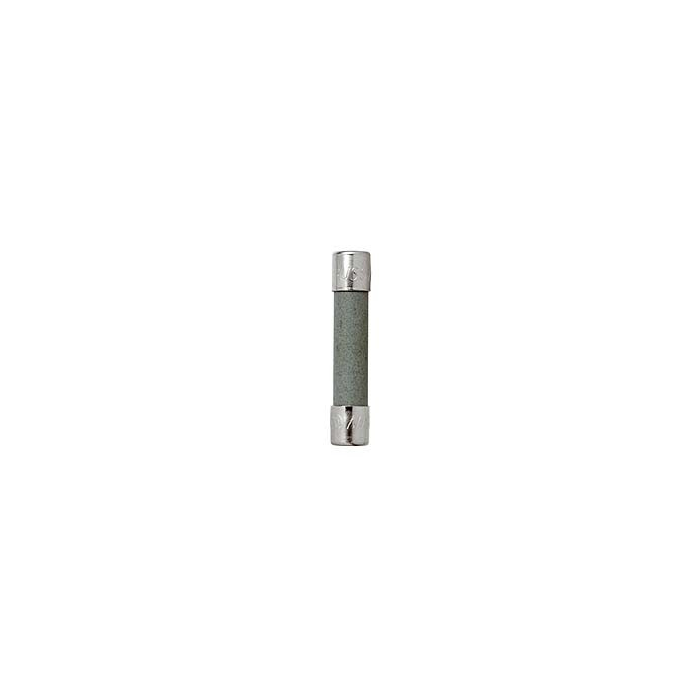

The BUSSMANN MDA-2-R is a 2 Amps, 250 Volts AC ceramic tube fuse with time delay. It features nickel-plated bronze endcaps and a physical size of 1/4" x 1 1/4". It has an interrupting rating of 100 AIC @ 250 VAC and 10,000 AIC @ 125 VAC. This fuse is suitable for electronic circuits.

• 2 Amps
• 250 Volts AC
• Ceramic Tube Fuse

Product Highlights

The BUSSMANN MDA-2-R is a time-delay fuse with nickel-plated bronze endcaps.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: MDA-2-R
• Country of Origin: United States

Technical Specifications

• Amps: 2
• Volts AC: 250
• Fuse Type: Ceramic Tube Fuse
• Speed: Time Delay
• Endcaps: Nickel-plated bronze
• Physical Size: 1/4" x 1 1/4"
• AC Voltage Rating: 250
• Interrupting Rating @ 250 VAC: 100 AIC
• Interrupting Rating @ 125 VAC: 10000 AIC
• Amperage: 2 Amp
• Applications: Electronic Circuits
• Connection Type: Ferrule
• End Type: Ferrule
• Interrupt Rating: 10 kAIC
• Material: Nickel-plated brass end cap constructionCeramic tube
• Response Time: 120 sec Maximum at 200%, 60 min Maximum at 135%
• Size: 1/4 In Diameter X 1-1/4 In Length
• Standard: CE,CSA,UL 248-14
• TC Connection: Ferrule
• Type: Time Delay
• Voltage: 250 Volt
• Brand: Cooper Industries, LLC
• Sub Brand: Bussmann
• Construction: Ceramic Tube, Nickel-Plated Brass End Cap
• MPN: MDA 2-R
• Country of Origin: United States
• Category: Business & Industrial
