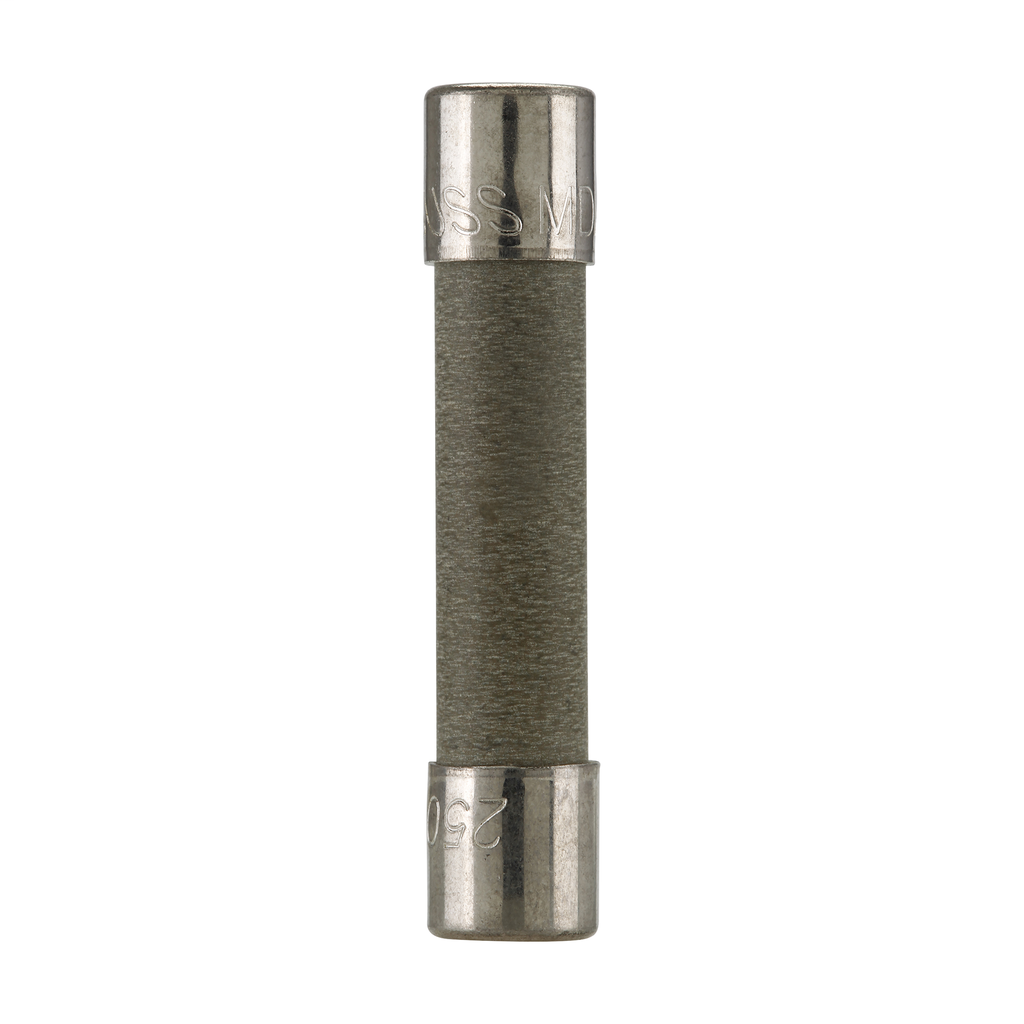

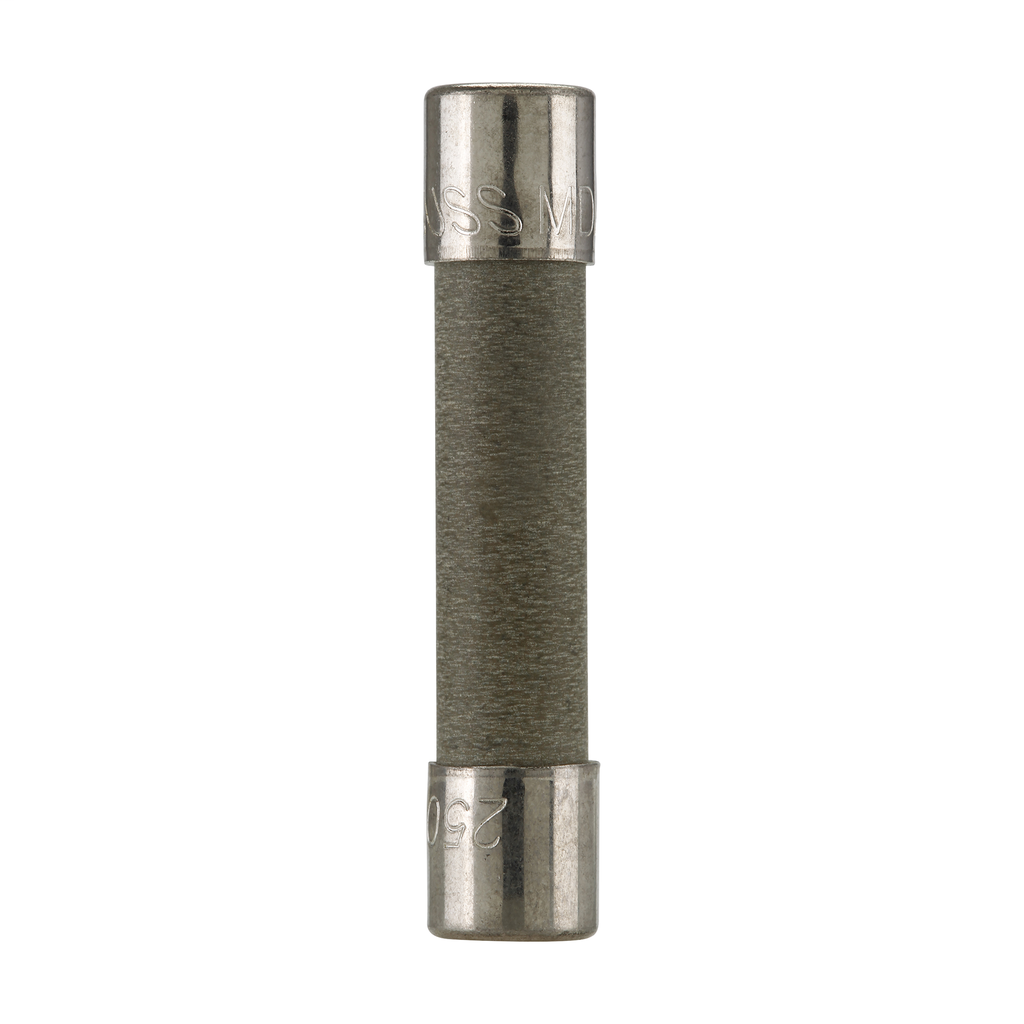

Bussmann MDA-1/2-R Small Dimension Fuse 0.5A 250V

Product Description

The Bussmann MDA-1/2-R is a time-delay fuse designed for protection in electronic circuits. This fuse operates at 0.5 amperes and supports voltages of up to 250 volts AC and 32 volts DC. The fuse is constructed using a nickel-plated brass end cap and a ceramic tube, ensuring durability and reliability in performance.

• Rated at 0.5A with a voltage capacity of 250V
• Time-delay feature suitable for electronic circuits
• Compact size suitable for small applications

Product Highlights

This fuse is ideal for applications requiring consistent protection in electronic circuits. Its time-delay capability allows it to accommodate temporary overloads without blowing, ensuring reliable operation.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Size: 1/4 inch diameter x 1-1/4 inch length
• Voltage: 250 volts
• Amperage: 500 mA
• Interrupt Rating: 10 kAIC
• Material: Nickel-plated brass end cap, ceramic tube
• Response Time: 120 seconds maximum at 200%, 60 minutes maximum at 135%
• End Type: Ferrule
