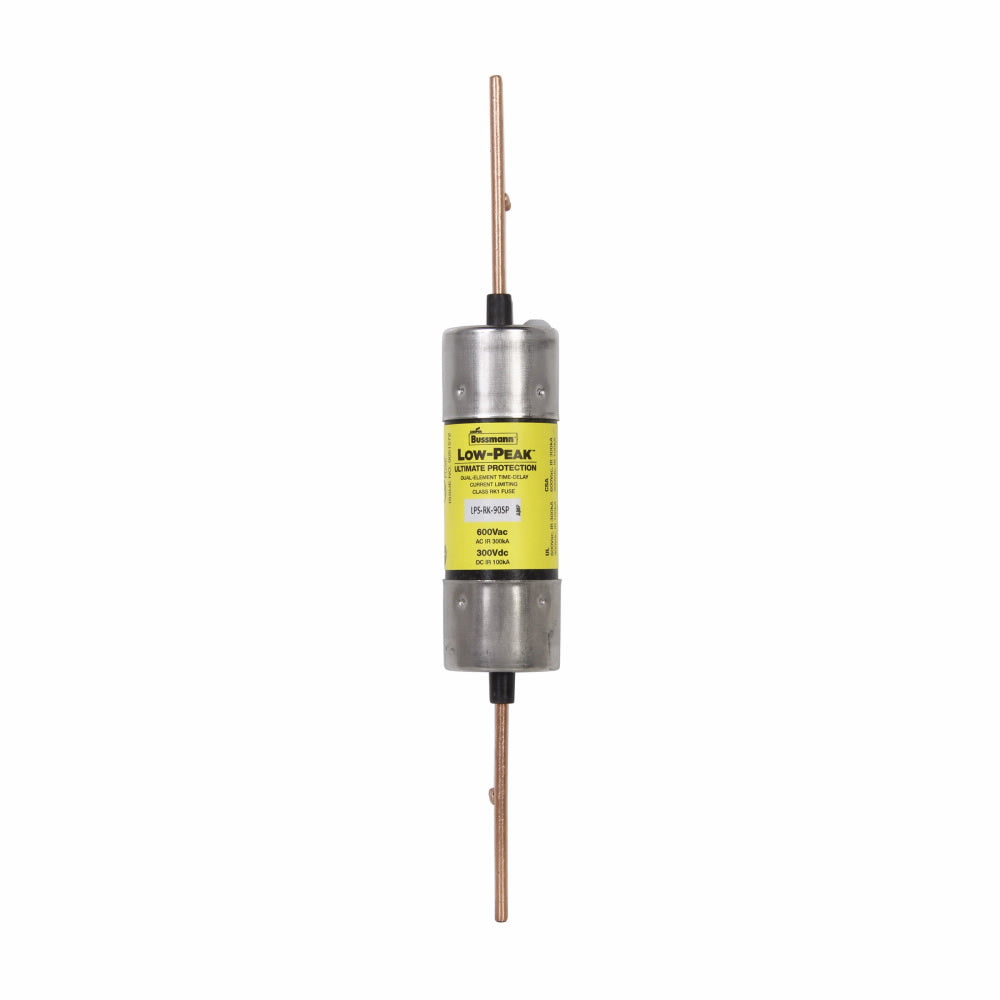

Bussmann LPS-RK-90SP 600V RK1 TD FS

Product Description

The Bussmann LPS-RK-90SP is a Class RK1 fuse designed to provide reliable protection for electrical systems. This fuse has a time-delay feature and a dual-element design, making it suitable for various applications. It offers a current rating of ninety amps and can handle voltages up to six hundred volts alternating current (Vac) and three hundred volts direct current (Vdc).

• Time-delay and dual-element design
• Interrupting rating of high capacity: 300 kA at 600 Vac and 100 kA at 300 Vdc
• Suitable for industrial facilities and safety systems

Product Highlights

This fuse is ideal for protecting motors, transformers, and other high-load applications.

Product Information

Standard Information

• Brand: Bussmann
• UPC: 05171254844

Technical Specifications

• Type: Fuse
• Class: Class RK1
• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 90 A
• Dimensions: 7.88 inches length x 1.11 inches diameter
• Connection: Blade end x blade end
• Interrupt Rating: 100 kAIC at 300 Vdc; 300 kAIC at 600 Vac
• Special Features: Electrically isolated end cap
