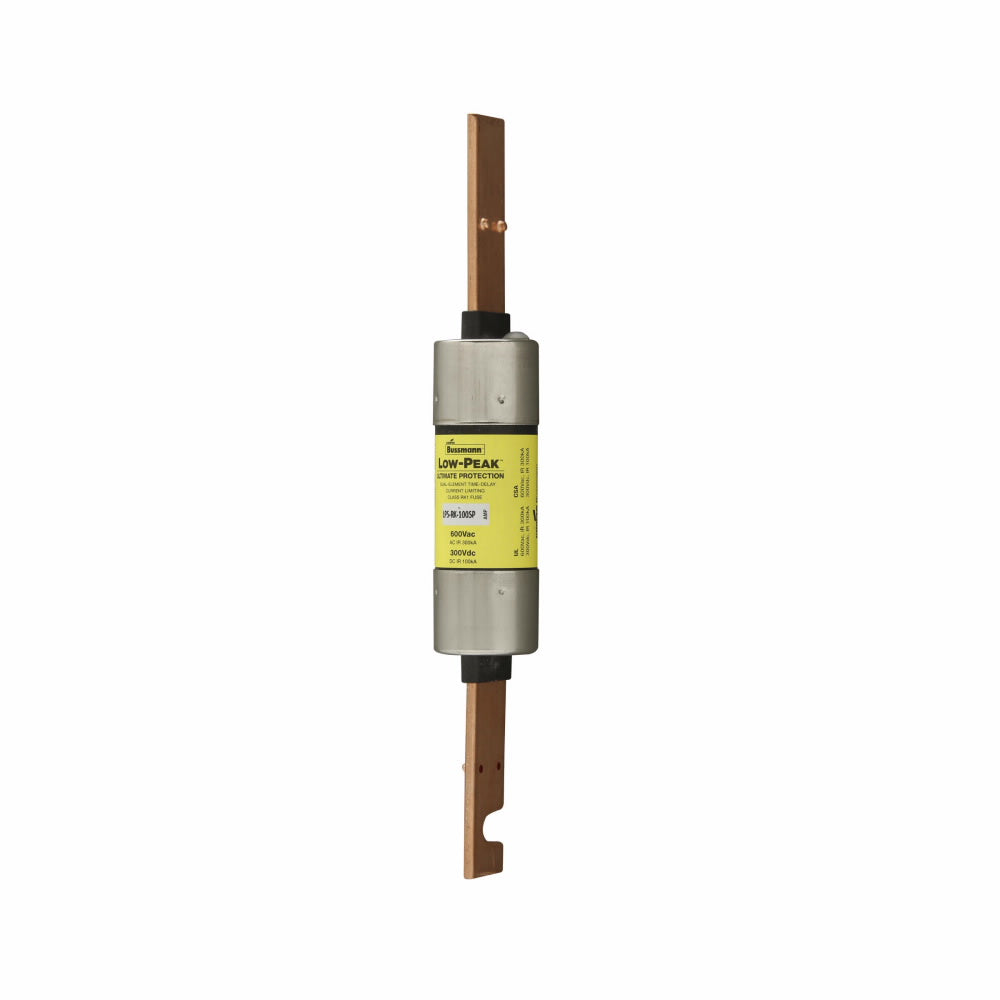

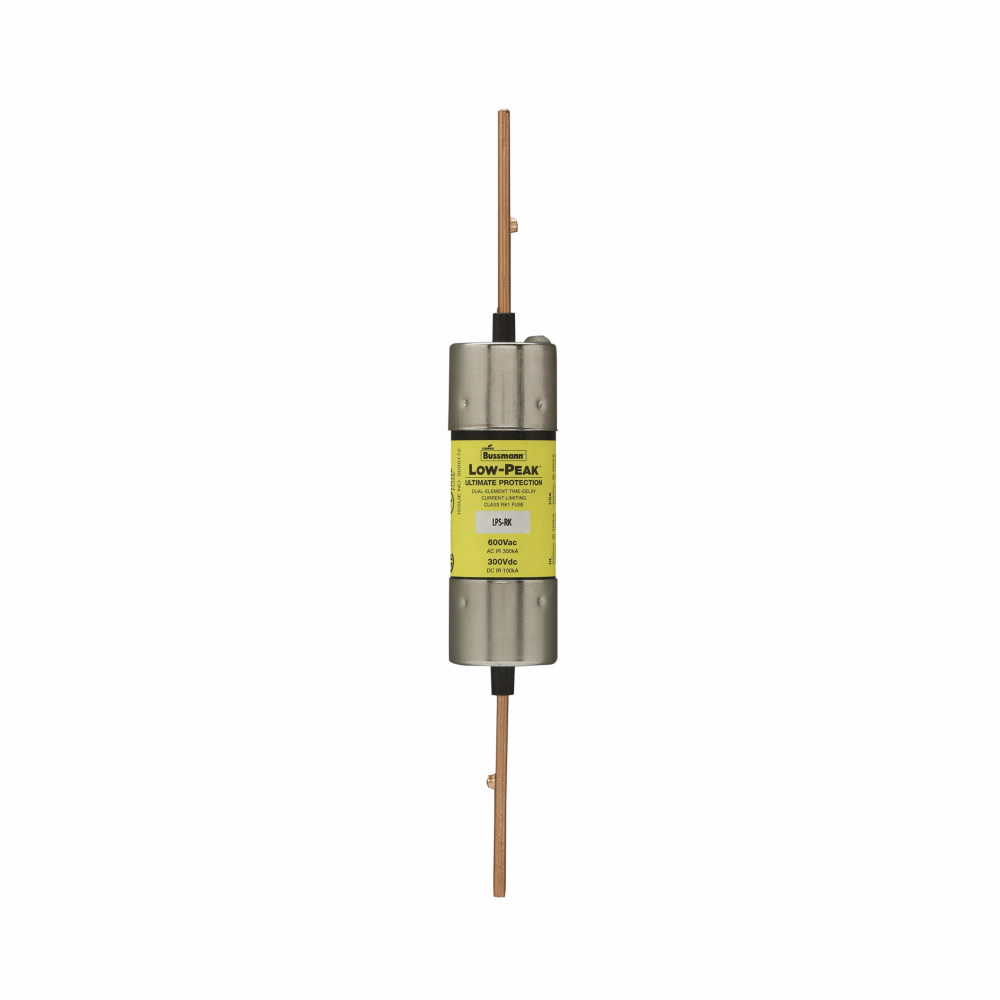

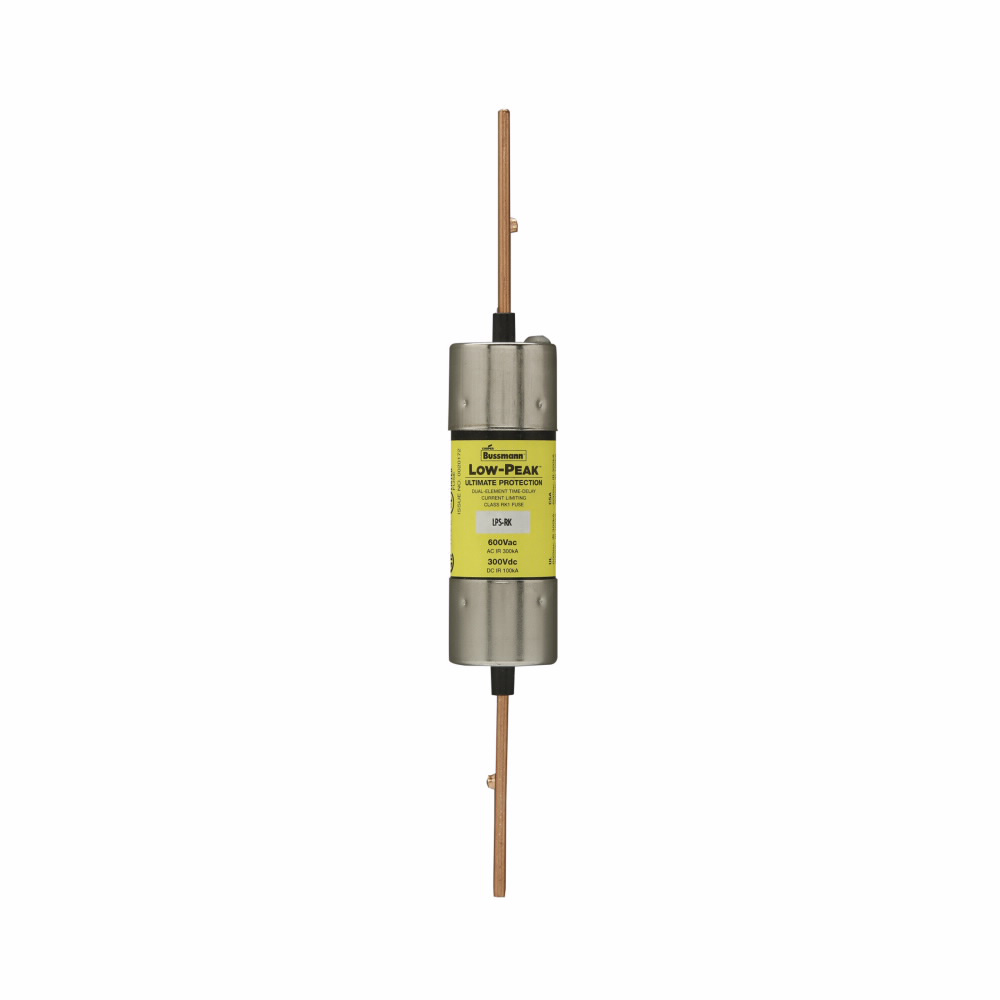

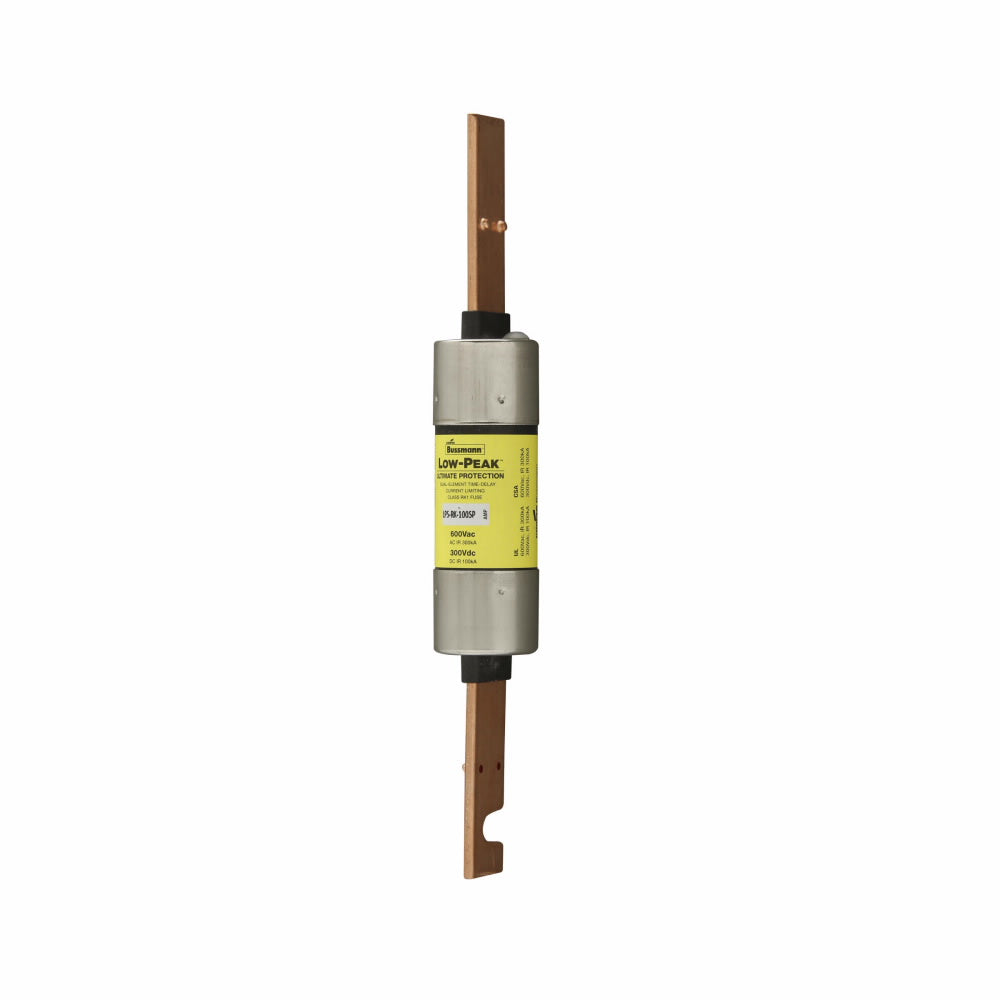

Bussmann LPS-RK-80SP Low Peak Dual Element Fuse 80 A 600V RK1

Product Description

The Bussmann Series LPS-RK-80SP is a low peak dual element fuse designed for current limiting applications. This fuse is rated for eighty amperes and features a time-delay mechanism. The blade end connection type makes it suitable for various installations. It supports an interrupting rating of three hundred kAIC at six hundred volts alternating current and one hundred kAIC at three hundred volts direct current.

• Current limiting and time-delay functionality
• Blade end connection type
• Compatible with large distribution switchboards and motor control centers

Product Highlights

This fuse is essential for protecting electrical systems from overcurrent conditions. It fits into power distribution setups and provides reliable circuit protection.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Catalog Number: LPS-RK-80SP
• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 80 A
• Dimensions: 1.11 inches diameter x 7.88 inches length
• Weight: 4 lb
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC at 300 Vdc
• Response Time: 10 seconds at 500%
• Application: Ideal for large distribution switchboards, power panelboards, motor control centers, and machinery disconnect switches
