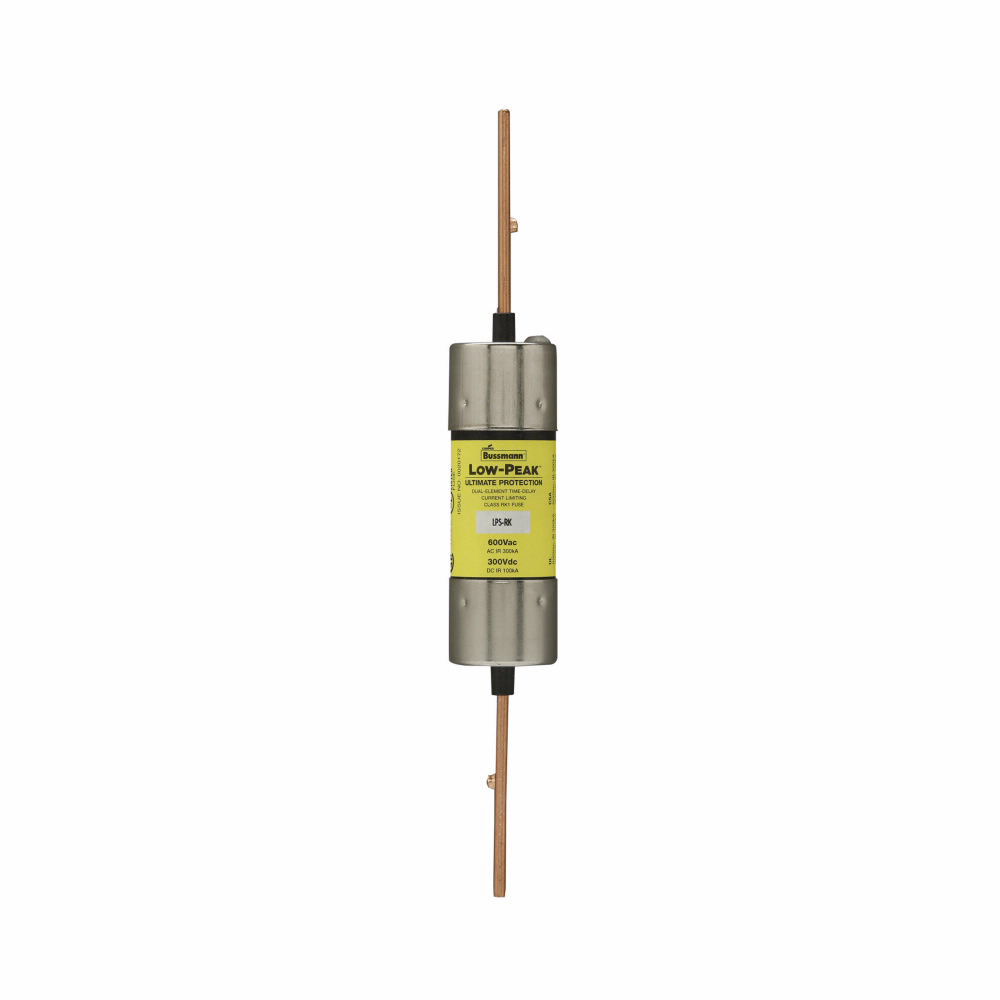

Bussmann LPS-RK-70SP Low Peak Dual Element Fuse 70A 600V RK1

Product Description

The Bussmann Series LPS-RK-70SP Low Peak Dual Element Fuse is designed for reliable circuit protection. This fuse operates at seventy amps and features a dual-element design that offers time-delay functionality. It can handle voltage ratings of three hundred volts DC and six hundred volts AC. This current-limiting fuse is essential for safeguarding equipment in various applications, including motor control centers and large distribution switchboards.

• Fuse Type: Current Limiting, Time-Delay
• Interrupting Rating: 100 kA at 300 Vdc, 300 kA at 600 Vac
• End Connection Type: Blade end x blade end

Product Highlights

The LPS-RK-70SP fuse is suitable for use in critical electrical systems requiring high reliability.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: LPS-RK-70SP
• Voltage Rating: 300 Volt DC, 600 Volt AC
• Amperage Rating: 70 Amp
• Diameter: 1.11 Inch
• Length: 7.88 Inch
• Weight: 4 lb
• Class: Class RK1
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
