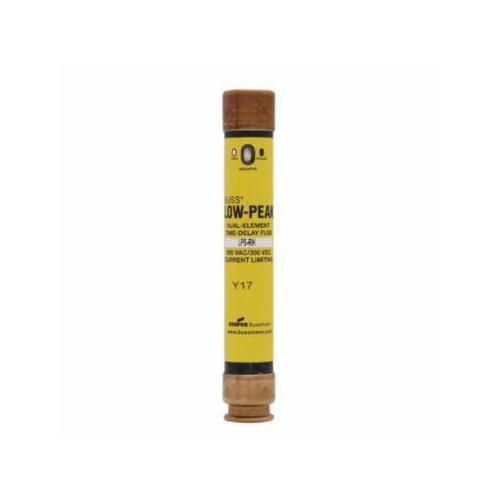

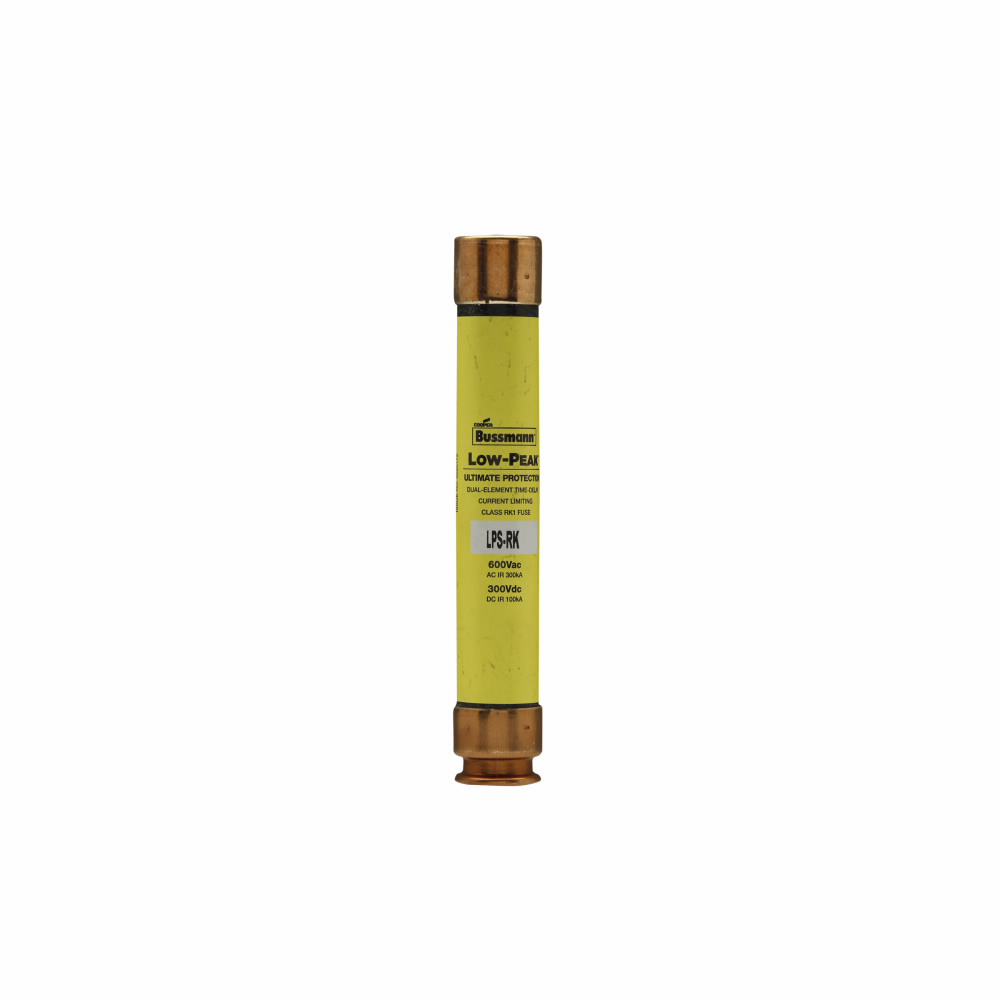

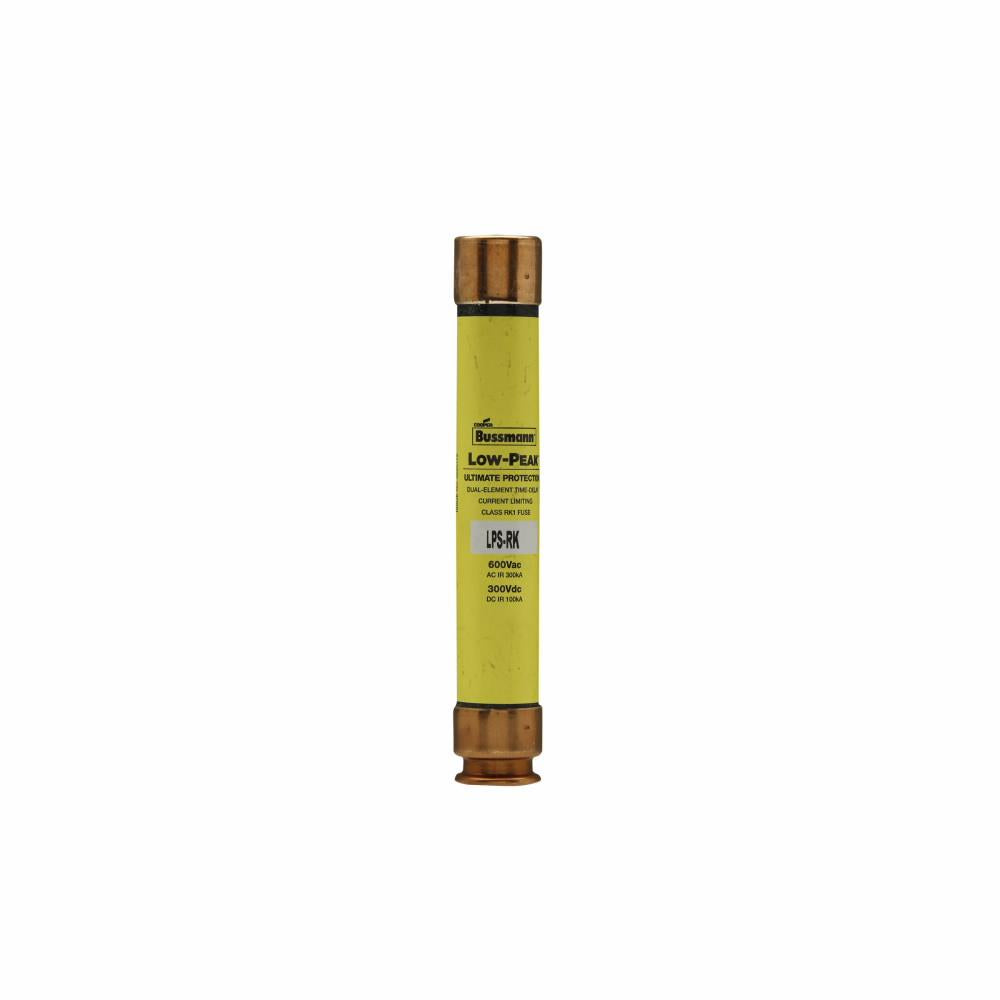

Bussmann LPS-RK-6SP Low Peak Dual Element Fuse

Product Description

The Bussmann LPS-RK-6SP fuse is a dual element, current-limiting fuse designed for high-performance applications. It operates at six amperes and is suitable for voltages of up to six hundred VAC and three hundred VDC. This fuse features a time-delay mechanism and is ideal for protecting large distribution switchboards and motor control centers. It provides effective protection for electrical connections against thermal and magnetic effects caused by short circuits.

• Class RK1 dual element construction
• 300/100 kAIC interrupt ratings
• Ferrule end connection type

Product Highlights

The Bussmann LPS-RK-6SP is engineered to provide reliable protection against overcurrent events while helping to reduce downtime for electrical systems. It is compatible with various applications, ensuring seamless integration into your power distribution setup.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-6SP

Technical Specifications

• Voltage Rating: 600 VAC / 300 VDC
• Amperage Rating: 6 A
• Interrupt Rating: 300 / 100 kAIC
• Response Time: 8 s at 500%
• Body Size: 0.81 in Dia x 5 in L
• Material: Melamine
• Type: Current Limiting Time Delay
• Connection Type: Ferrule End
