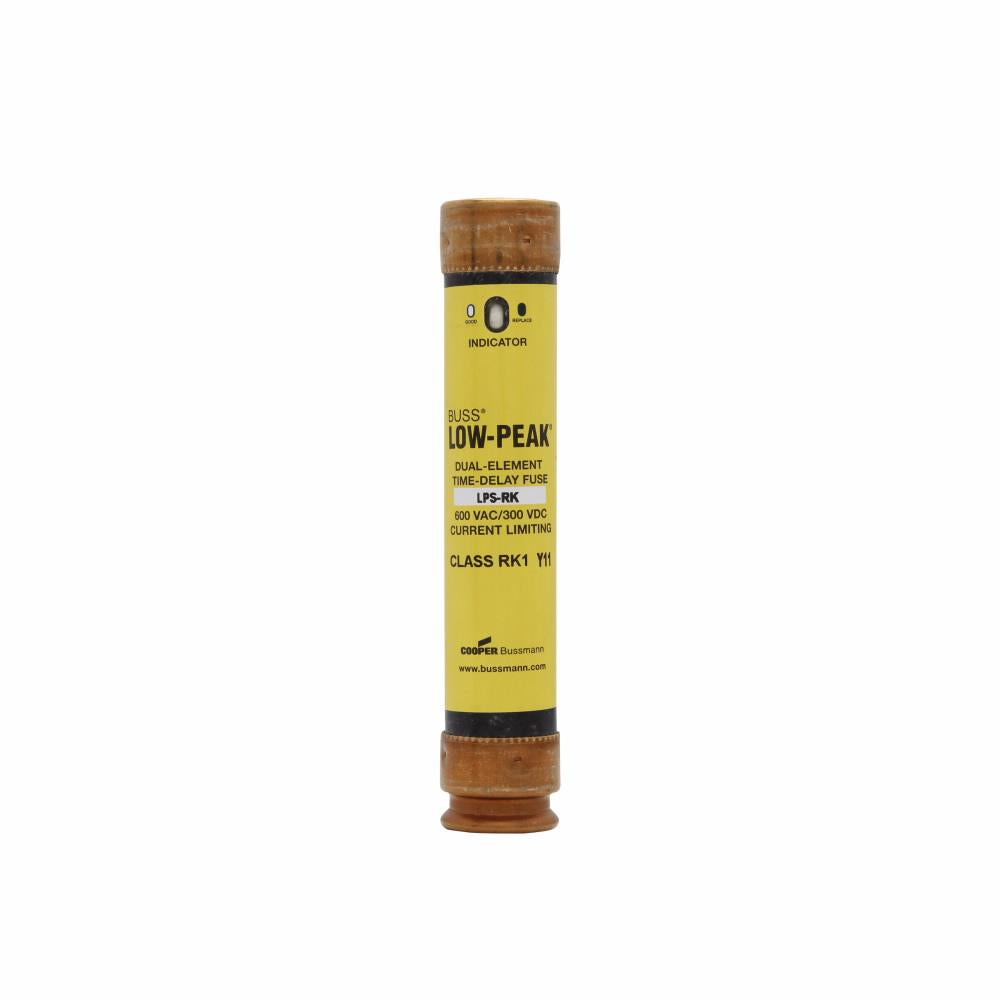

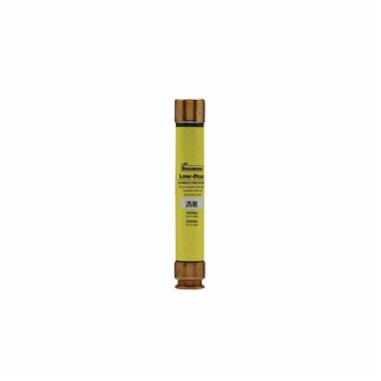

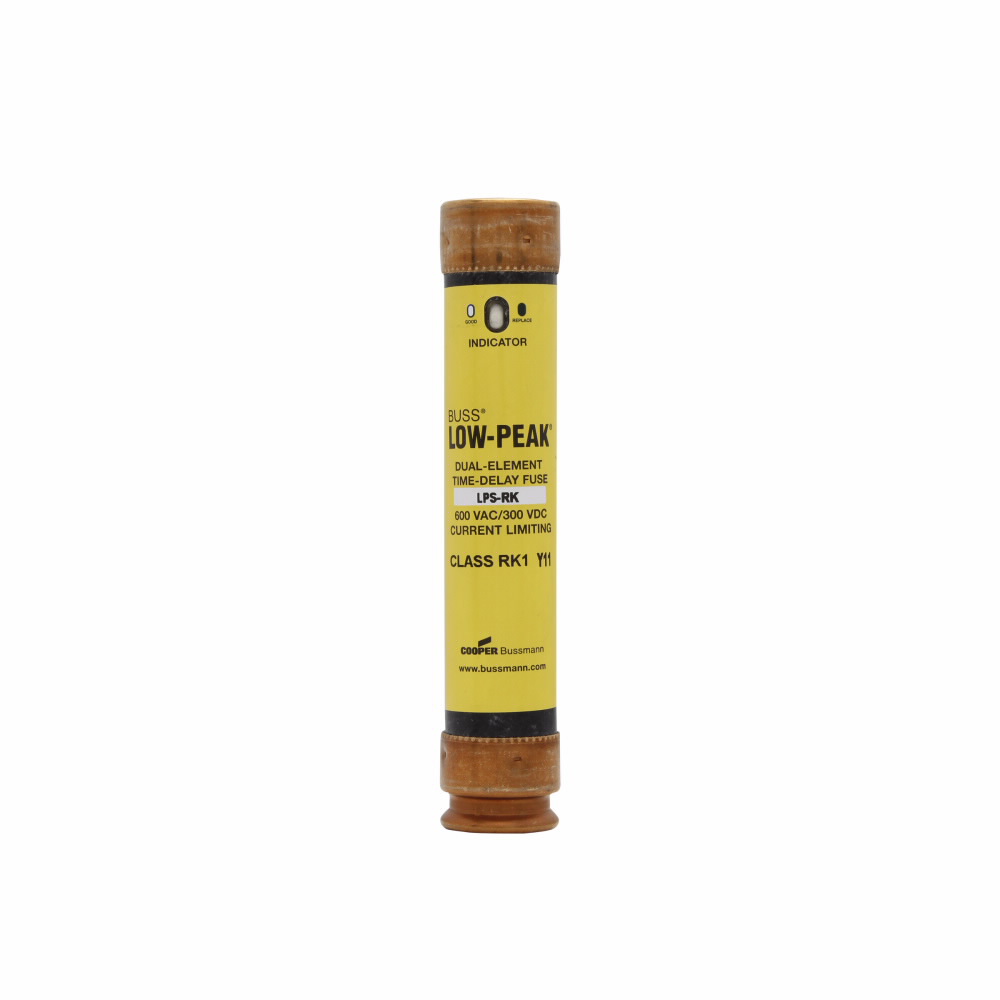

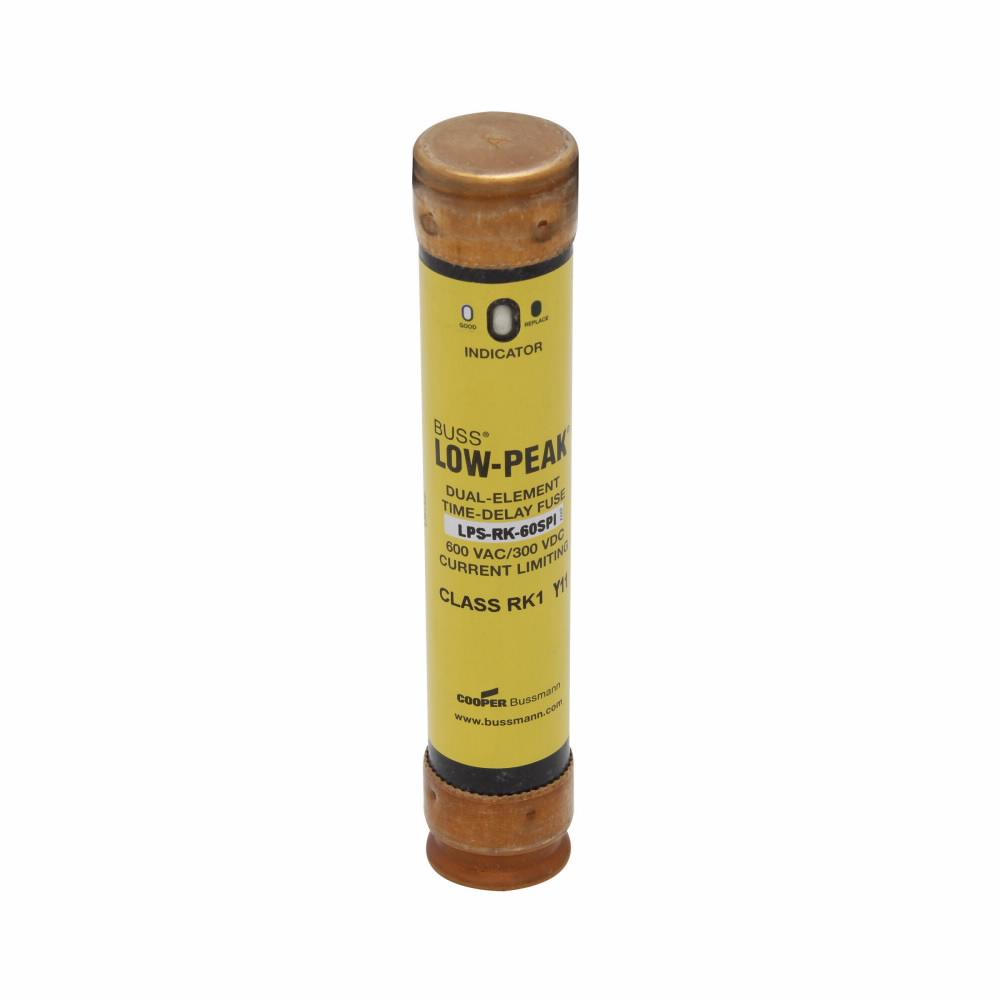

Bussmann LPS-RK-60SPI Bussmann Series LPS-RK-60SPI 60 Amp 600 VAC 300 VDC Class RK1 Dual Element Indicating Time Delay Fuse

Product Description

Bussmann is a leading brand in the fuse industry, and the LPS-RK-60SPI is a time delay fuse designed for significant applications. This fuse has a rating of sixty amperes for both six hundred volts AC and three hundred volts DC. It features dual elements and provides indicating functionality, making it suitable for various electrical applications.

• Dual element design for improved performance
• Time delay feature allows for the handling of inrush currents
• Rated for up to 300 kAIC at 600 VAC

Product Highlights

This product is essential in protecting electrical systems. It limits current and prevents damage from short circuits. It is ideal for large distribution switchboards, power panel boards, and machinery disconnect switches.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 60 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kAIC at 600 V, 100 kAIC at 300 V
• Response Time: 10 s at 500%
• Body Size: 1.06 inches Diameter x 5.5 inches Length
• Material: Melamine
• Type: Current Limiting, Time Delay
• End Type: Ferrule
