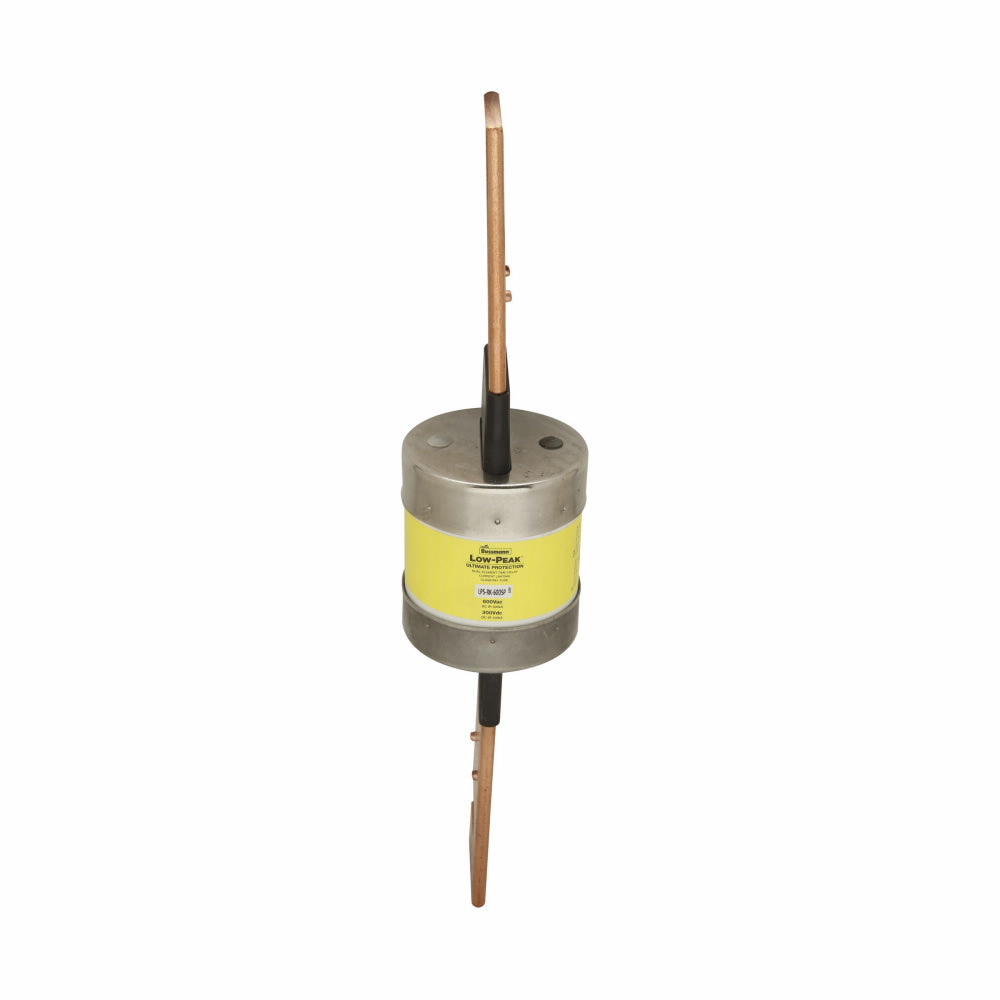

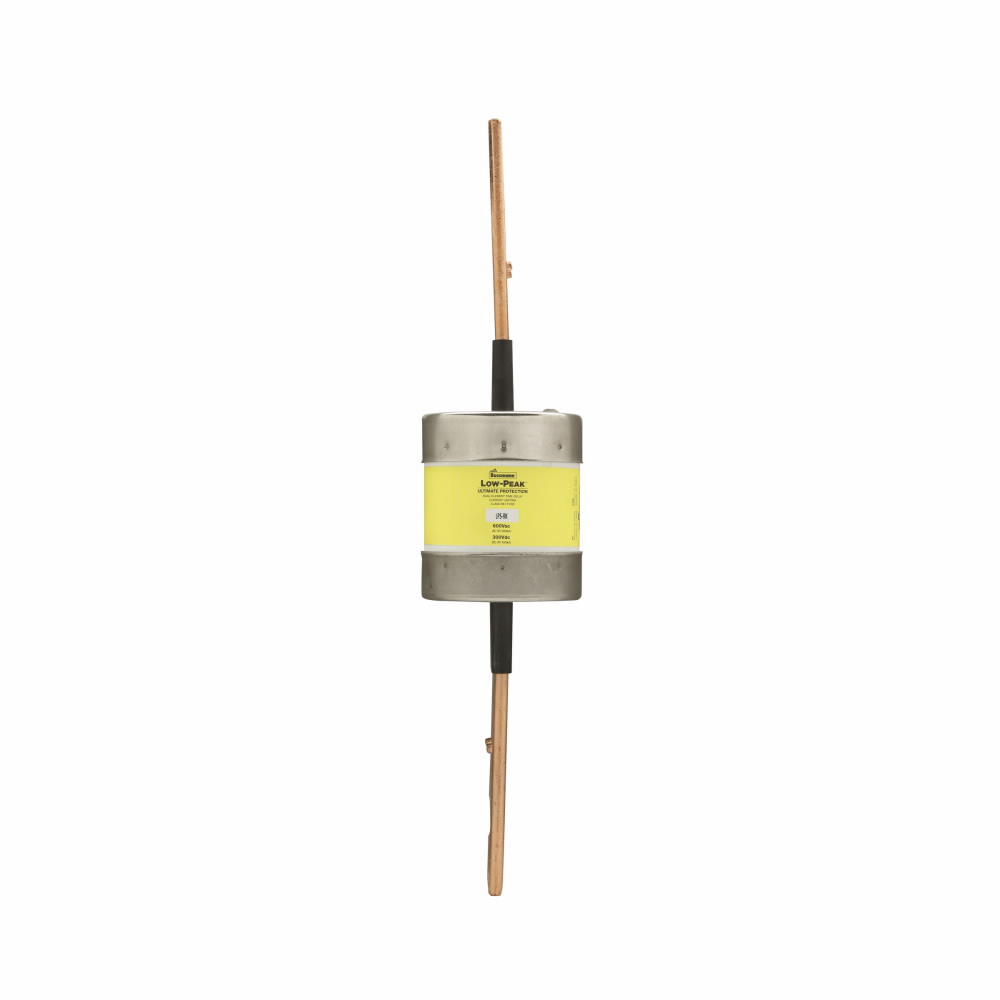

Bussmann LPS-RK-600SP Low Peak Dual Element Fuse 600 A 600V RK1

Product Description

The Bussmann LPS-RK-600SP fuse is designed for effective power distribution. It features a dual-element design with a current rating of six hundred amperes. This time-delay fuse prevents damage to electrical systems from overcurrent events. Its construction includes blade end connections. It also has an interrupt rating of three hundred kiloamps at six hundred volts AC and one hundred kiloamps at three hundred volts DC. This fuse is ideal for large distribution switchboards and motor control centers.

• Rated for six hundred amperes
• Time-delay functionality
• Rated for three hundred kiloamps interrupting current

Product Highlights

The Bussmann LPS-RK-600SP fuse provides reliable protection against overcurrent scenarios in electrical applications.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-600SP

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 600 A
• Interrupt Rating: 300 kAIC at 600 Vac, 100 kAIC at 300 Vdc
• Length: 13.38 inches
• Diameter: 2.88 inches
• Response Time: 10 seconds at 500%
• Connection Type: Blade end x blade end
• Applications: Large distribution switchboards, power panelboards, motor control centers
