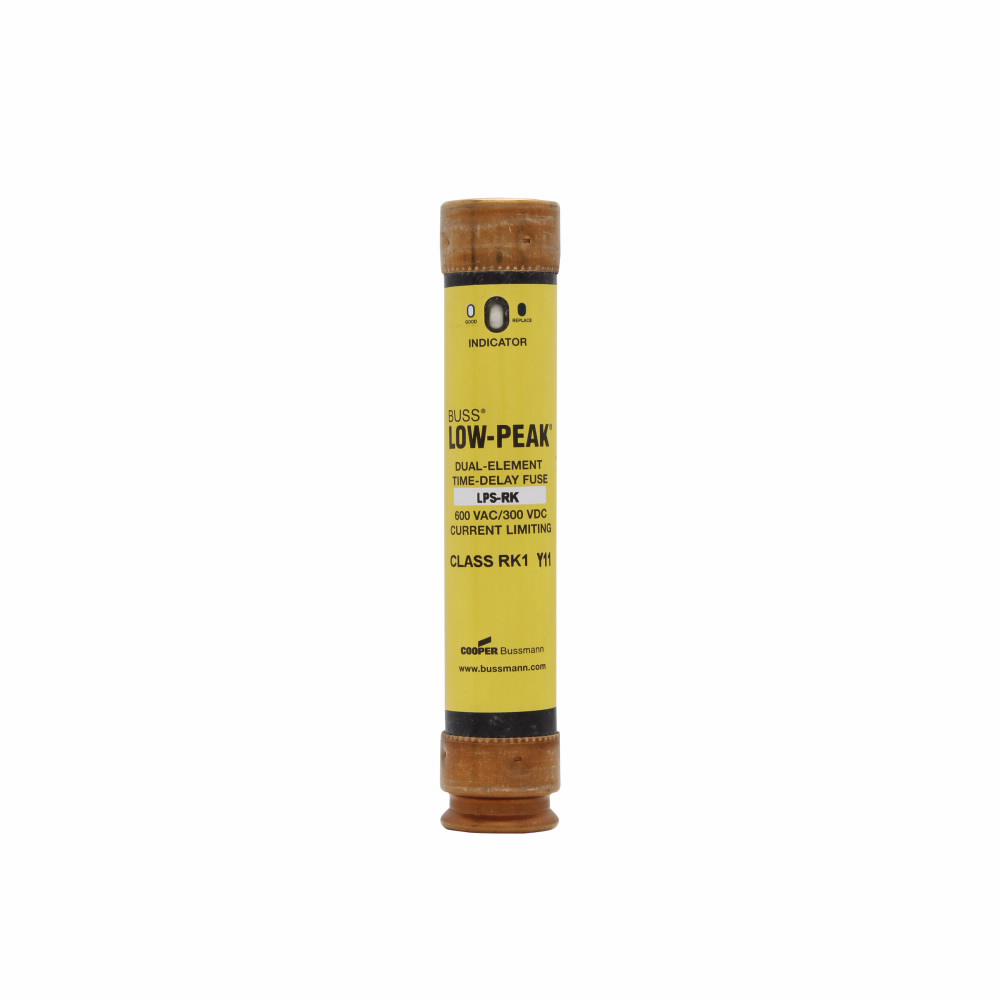

Bussmann LPS-RK-40SPI Class RK1 Dual Element Indicating Time Delay Fuse 40 Amp 600 VAC 300 VDC

Product Description

The Bussmann LPS-RK-40SPI is a dual element, class RK1, time delay fuse designed for use in power distribution applications. It offers excellent current-limiting performance with a capacity of forty amps at six hundred volts AC or three hundred volts DC. This fuse features a ferrule end connection, which allows for easy installation in compatible fuse holders.

• Current-limiting and time-delay properties
• High interrupt ratings of 300 kAIC at 600 VAC and 100 kAIC at 300 VDC
• Indicating capability to show fuse status

Product Highlights

The Bussmann LPS-RK fuse is designed to provide ultimate protection in large distributions, ensuring safety and reliability in critical applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage: 40 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 1.06 inches Diameter x 5.5 inches Length
• Interrupt Rating: 300/100 kAIC
• Response Time: 10 seconds at 500%
• Material: Melamine
• Mounting Type: Holder
• End Type: Ferrule
