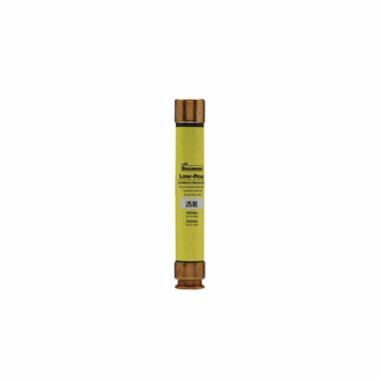

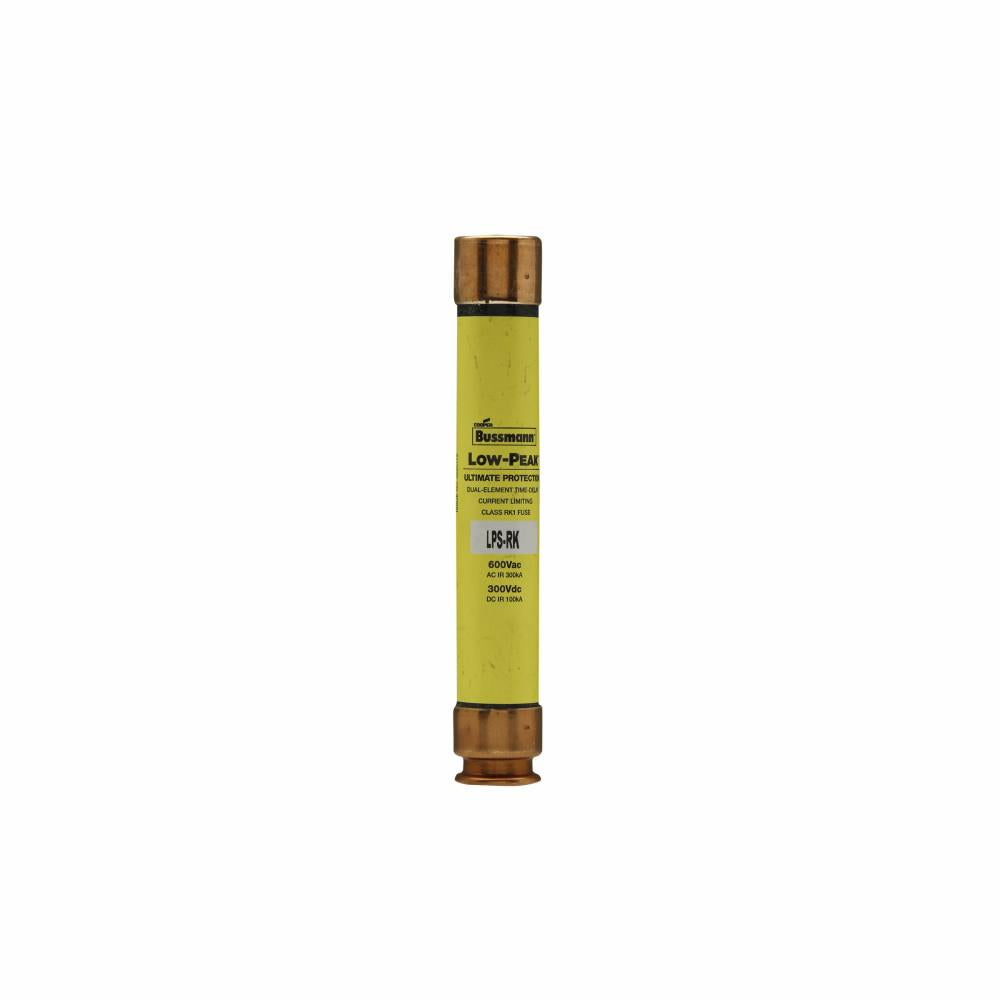

Bussmann LPS-RK-3SP Low-Peak Current Limiting Time Delay Fuse 3 A

Product Description

The Bussmann LPS-RK-3SP is a low-peak current limiting time delay fuse. This fuse is designed to provide protection in various electrical applications. It operates at three Amperes with a voltage rating of six hundred VAC and three hundred VDC. The interrupt rating is three hundred kAIC at six hundred VAC and one hundred kAIC at three hundred VDC.

• Current limiting feature to protect downstream components.
• Time delay functionality for high inrush loads.
• Rejection type for optimal compatibility with fuse holders.

Product Highlights

This fuse is essential for motor protection and prevents damage during high inrush conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300/100 kAIC
• Body Size: 0.81 inches Diameter x 5 inches Length
• Material: Melamine
• Type: Current Limiting Time Delay
• Response Time: 8 seconds at 500%
• Class: RK1
• Terminal Type: Ferrule End
• Rejection/Non-Rejection: Rejection
