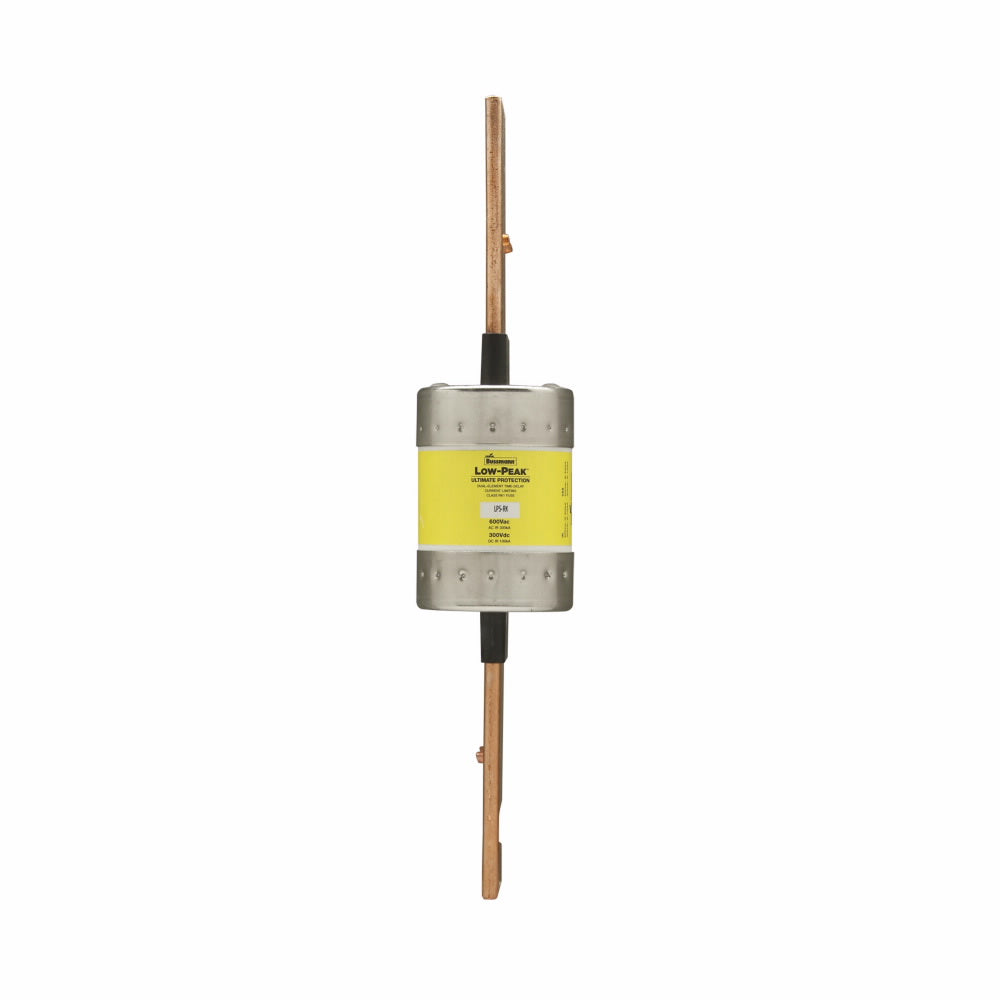

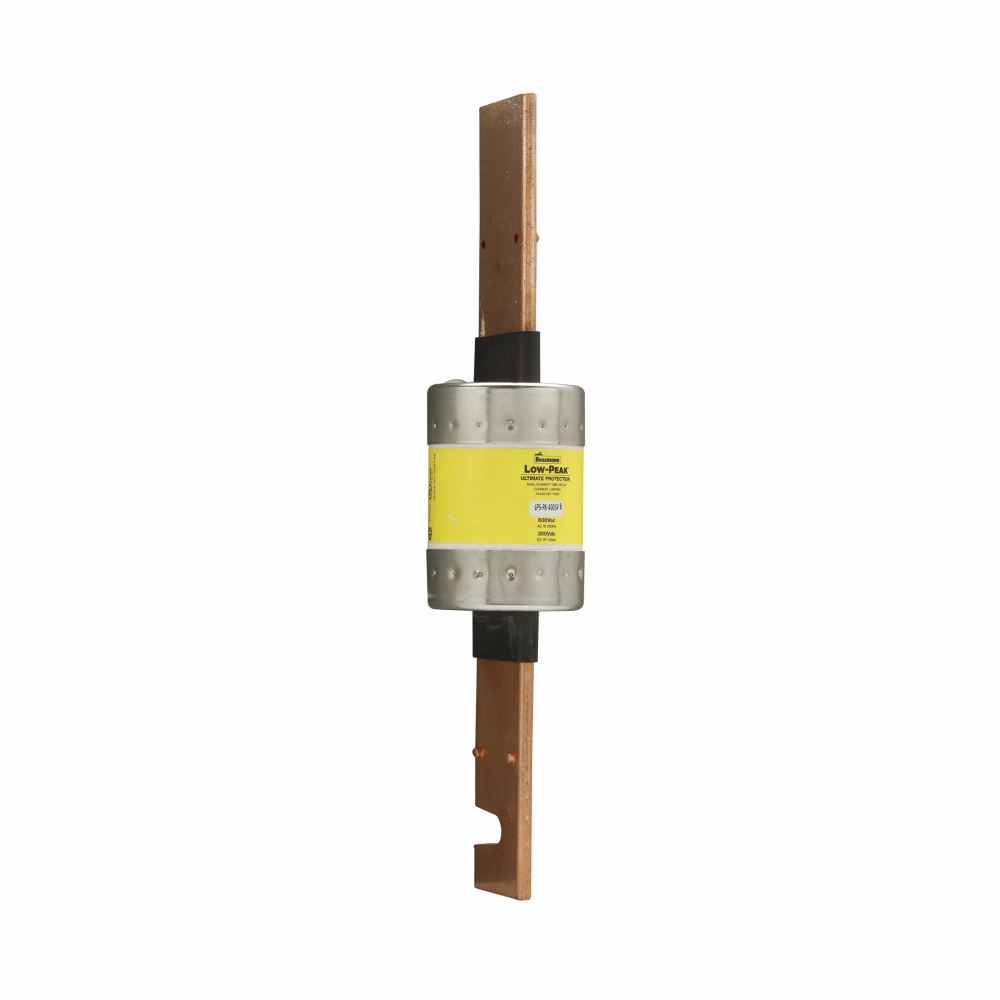

Bussmann LPS-RK-350SP Low Peak Dual Element Fuse 350A (2.36 Inches Diameter x 11.63 Inches Length)

Product Description

The Bussmann Series LPS-RK-350SP Low Peak Dual Element Fuse is designed for use in large distribution switchboards and power panelboards. It is rated for three hundred fifty amperes and features a blade end connection. This Class RK1 fuse provides current limiting capabilities and time delay functionality.

• Current Limiting and Time Delay
• Interrupting rating of three hundred kA at six hundred volts
• Suitable for machinery disconnect switches

Product Highlights

This fuse is non-indicating and meets the requirements for Class RK1 applications, ensuring reliable performance in critical power management scenarios.

Product Information

Standard Information

• Brand: Bussmann
• Product ID: 141730

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 350 A
• Diameter: 2.36 Inches
• Length: 11.63 Inches
• Weight: 4.6 lb
• End Type: Blade
• Response Time: 10 S at 500%
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
