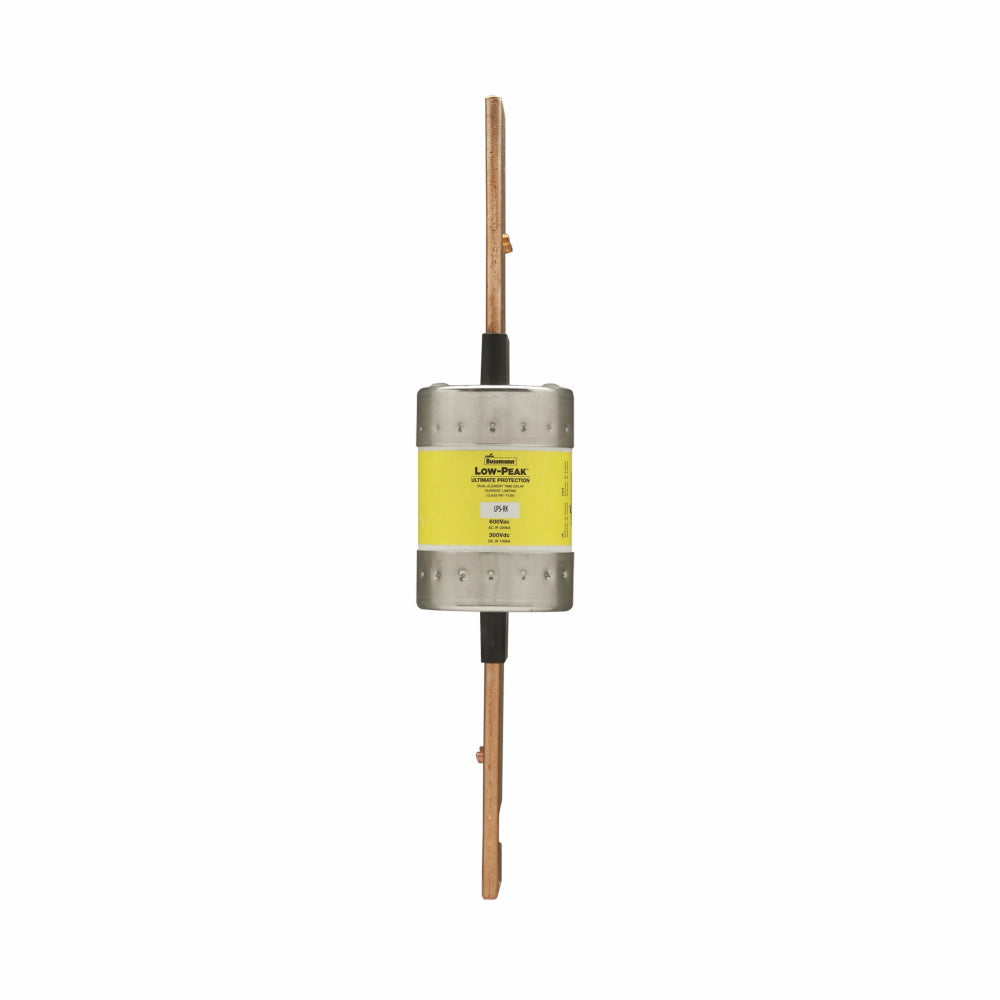

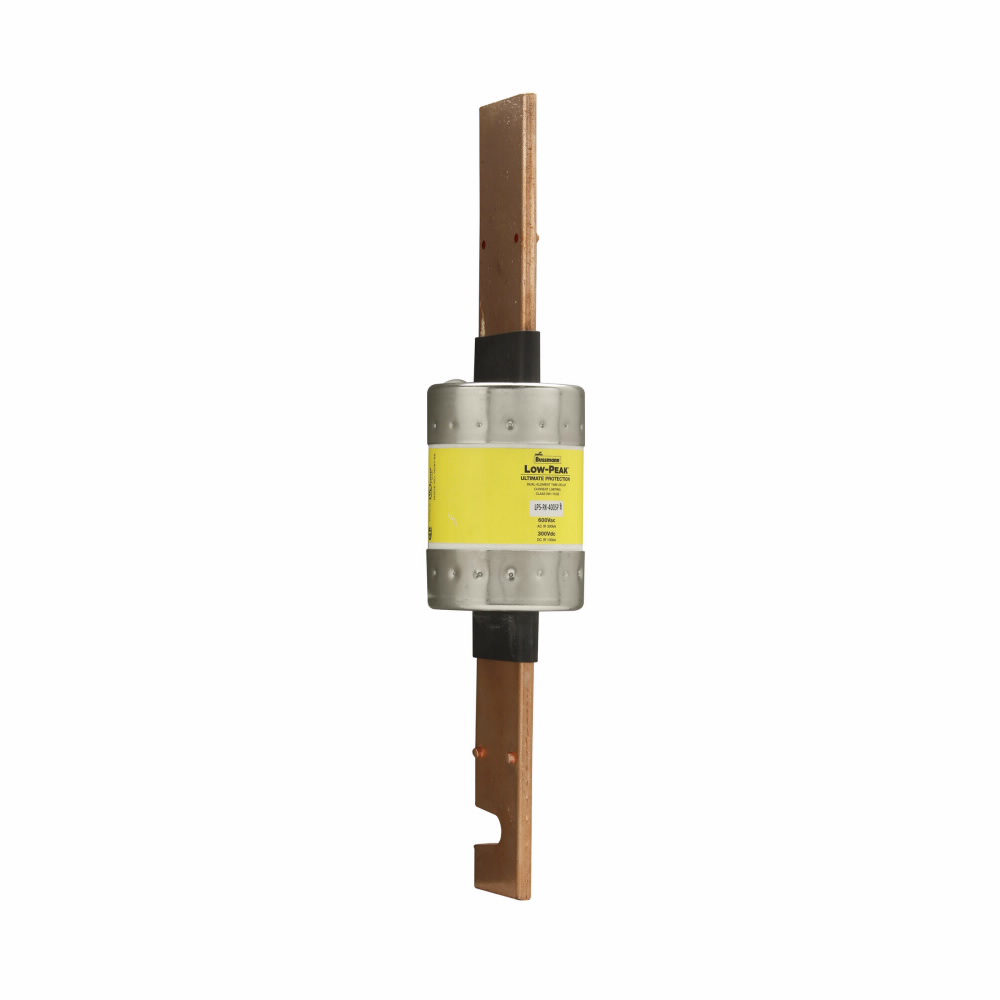

Bussmann LPS-RK-300SP Low Peak Dual Element Fuse Power 600V RK1 TD FS

Product Description

The Bussmann LPS-RK-300SP is a low peak dual element fuse that is designed for high performance in demanding applications. With a current rating of three hundred amps, this fuse meets various application requirements including large distribution switchboards and machinery disconnects. The dual element design supports time delay and current limiting features, ensuring efficient performance under fault conditions.

• Rated for 300 Amps
• Voltage ratings: 600 Volts AC and 300 Volts DC
• Interrupting rating of 300 kAIC at 600 Vac

Product Highlights

This fuse is ideal for use in industrial facilities due to its robust design and reliable performance under extreme conditions.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Current limiting, Time-delay
• Class: Class RK1
• Diameter: 2.36 In
• Length: 11.63 In
• Weight: 4.6 lb
• Voltage Rating: 300 Volt
• Amperage Rating: 300 Amp
• End Type: Blade
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
