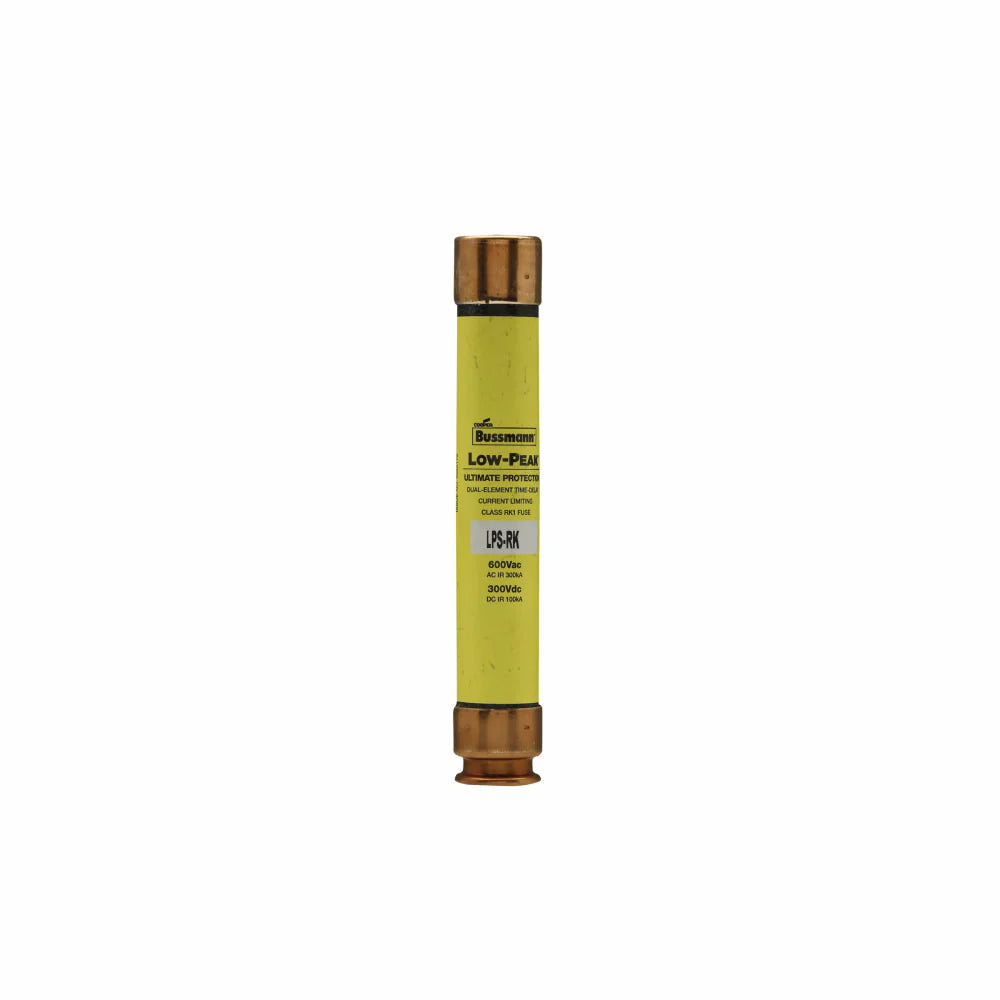

Bussmann LPS-RK-25SP Low Peak Dual Element Fuse 25 Amp 0.81 Inch Diameter 600 Volt

Product Description

The Bussmann Series LPS-RK-25SP is a low peak dual element fuse from Bussmann. This fuse operates at twenty-five amps and features a ferrule end connection. It is current limiting and has a time delay feature, allowing it to withstand temporary surges without tripping. The fuse is designed to protect equipment from overcurrent, making it suitable for various applications.

• Current limiting with a time delay
• Ferrule end connection type
• Interrupt rating of three hundred kA at six hundred volts AC

Product Highlights

This fuse is ideal for large distribution switchboards, power panelboards, and machinery disconnect switches.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-25SP

Technical Specifications

• Amperage: 25 Amp
• Voltage Rating: 600 Volt AC; 300 Volt DC
• Dimensions: Length five inches, Diameter 0.81 inch
• Interrupt Rating: 300 kAIC at 600 Volts; 100 kAIC at 300 Volts DC
• Connection Type: Ferrule end x ferrule end
• Class: RK1
• Weight: 1.6 lb
• Response Time: 8 seconds at 500%
