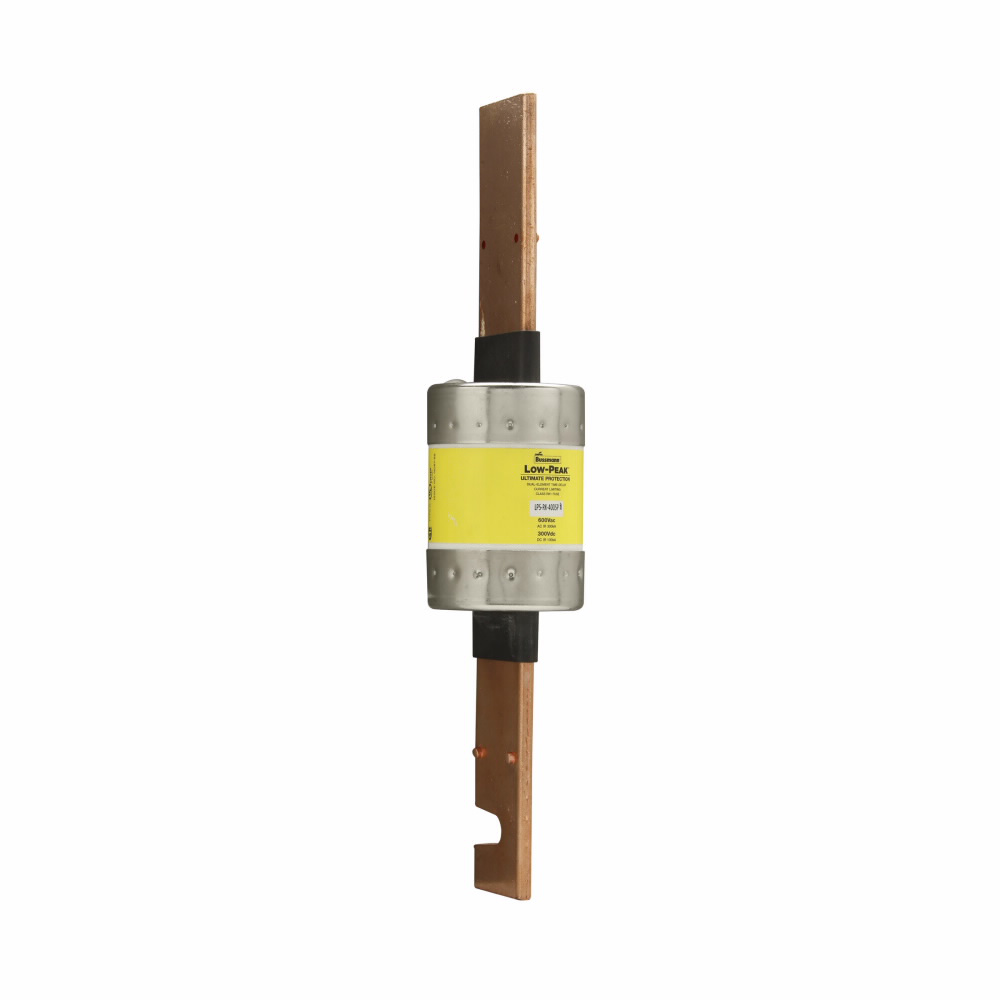

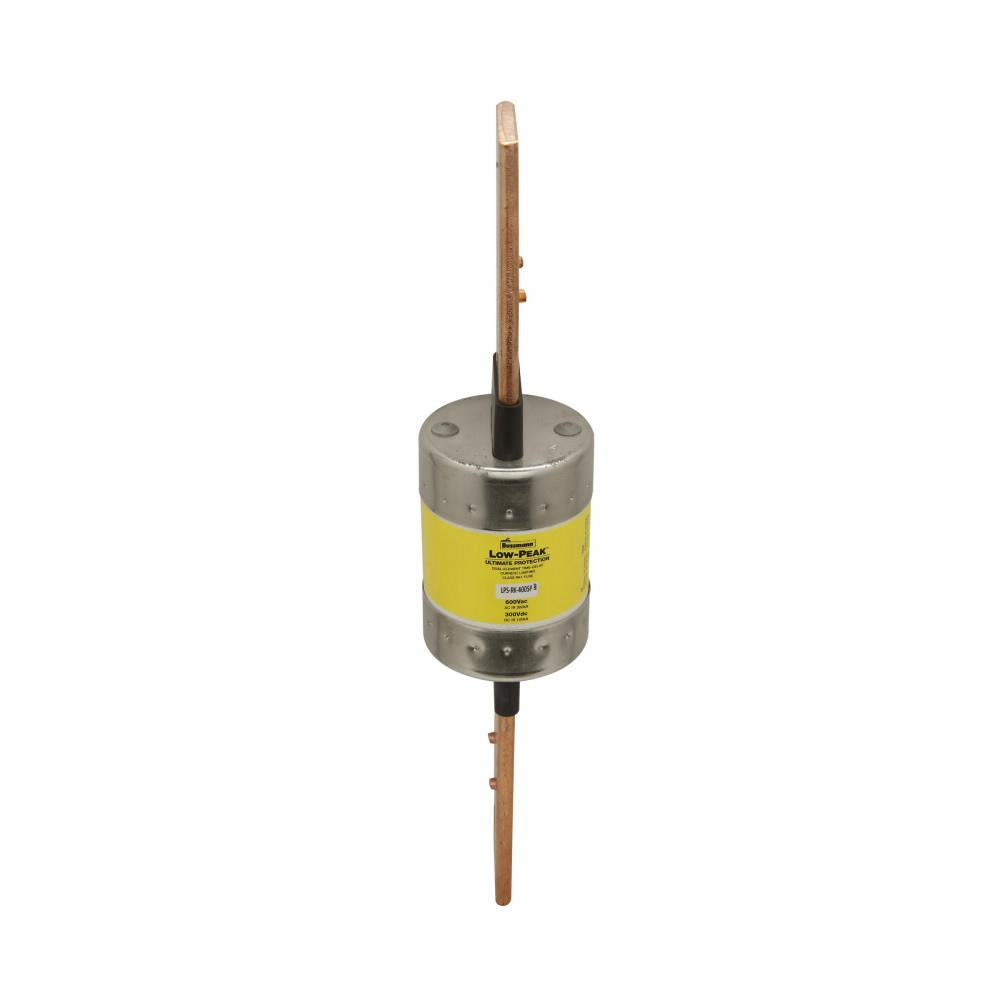

Bussmann LPS-RK-225SP Low Peak Dual Element Fuse 225 A 600 VAC/300 VDC

Product Description

The Bussmann LPS-RK-225SP is a dual element fuse designed for electrical systems. This time-delay fuse is made by Bussmann and carries the MPN LPS-RK-225SP. It offers current limitation to protect circuits from overloads and short circuits.

• 225 Amp rating for high current applications
• Time-delay feature for back-up motor overload protection
• Suitable for both 600 VAC and 300 VDC systems

Product Highlights

Reliable current limiting fuse with a 300 kA interrupt rating at 600 VAC. Designed for use in large distribution switchboards and motor control centers.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: LPS-RK-225SP
• Amperage: 225 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 2.36 inches diameter x 11.63 inches length
• Element Type: Dual
• Interrupt Rating: 300 kAIC
• Response Time: 10 seconds at 500%
• End Type: Blade end x blade end
• Material: Melamine
