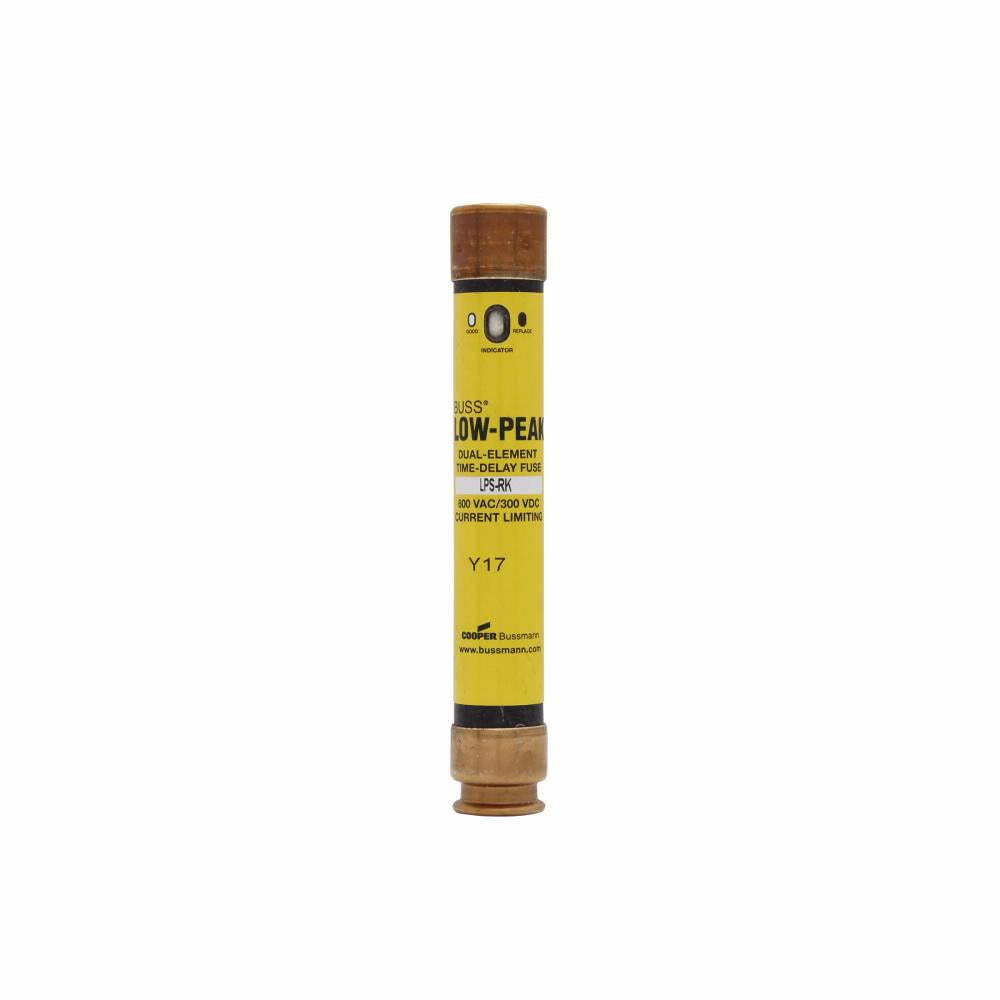

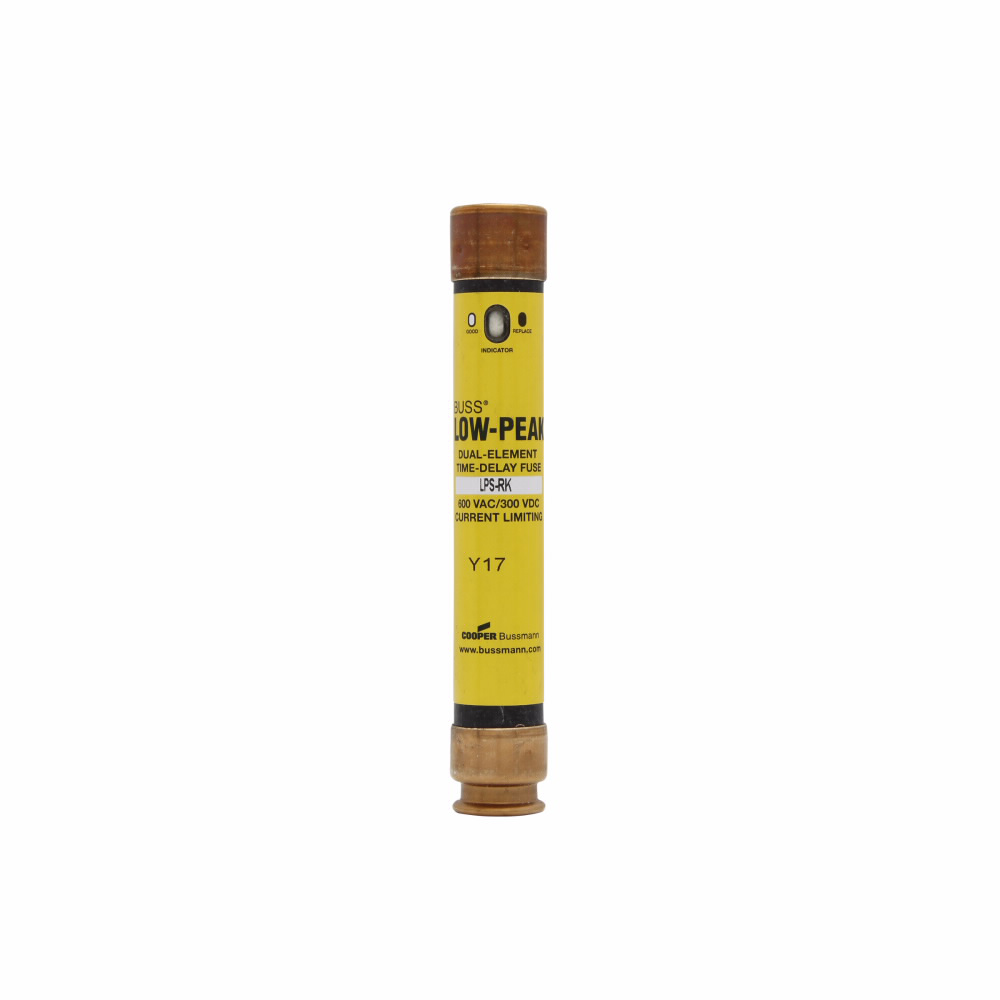

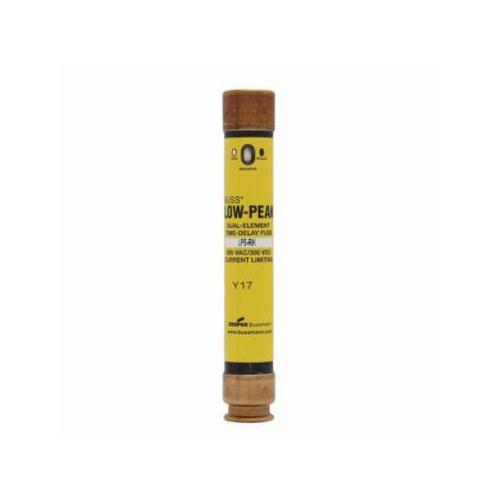

Bussmann LPS-RK-15SPI 15 Amp 600 VAC 300 VDC Class RK1 Dual Element Indicating Time Delay Fuse

Product Description

The Bussmann Series LPS-RK-15SPI is a dual-element time-delay fuse designed for use in electrical distribution. This fuse is rated at fifteen amps and is suitable for 600 VAC and 300 VDC applications. Its dual-element structure ensures it is current-limiting, providing both overload and short-circuit protection.

• Time delay feature allows for handling of high inrush loads.
• Ferrule end connections for easy installation.
• Can withstand an interrupt rating of 300 kAIC at 600 VAC.

Product Highlights

This fuse is optimized for large distribution switchboards, power panelboards, and machinery disconnects, offering reliable protection for electrical systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Product Type: Current Limiting, Time Delay
• Class: RK1
• Amperage: 15 Amp
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 300 kAIC
• Response Time: 8 Seconds at 500%
• Body Size: 0.81 inches Diameter x 5 inches Length
• End Type: Ferrule
