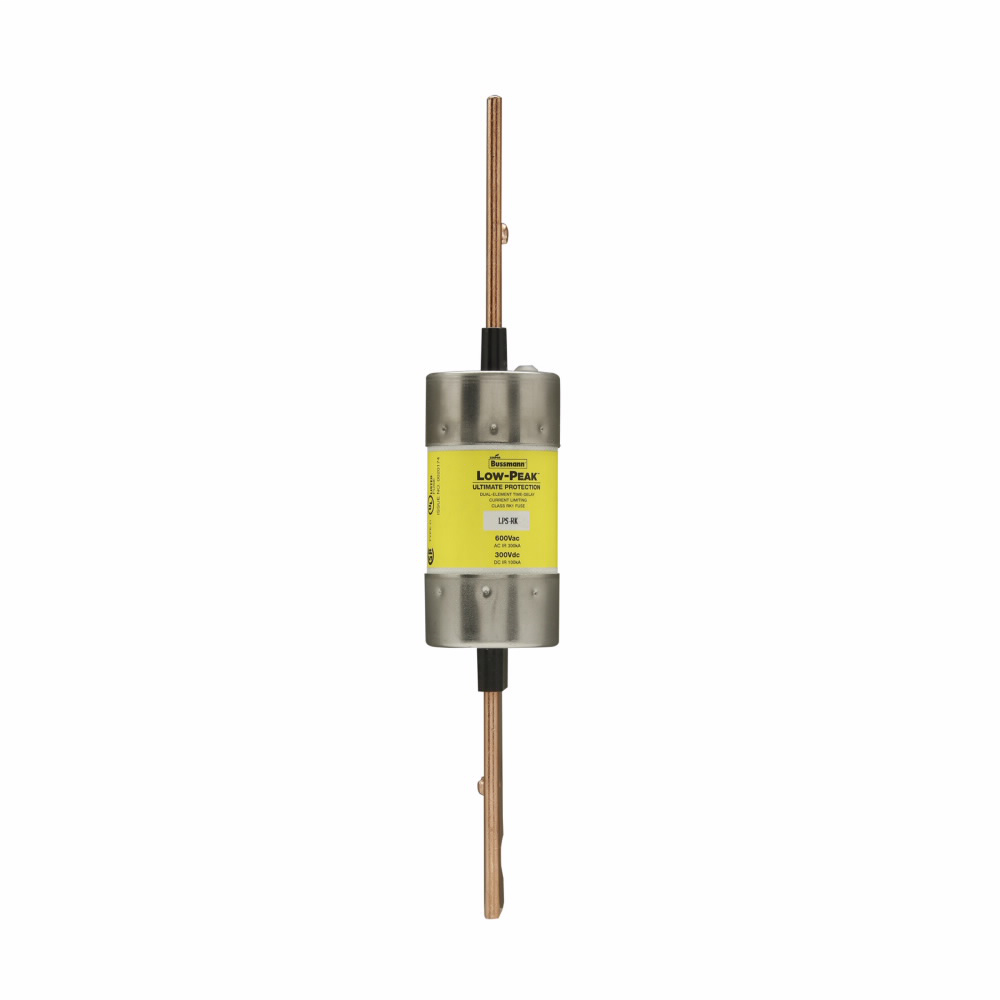

Bussmann LPS-RK-150SP Low Peak Dual Element Fuse 150 A 1 Pack

Product Description

The Bussmann LPS-RK-150SP is a low peak dual element fuse designed for effective current limiting and time delay performance. Rated for 150 Amps and capable of handling operational voltages of up to 600 Volts AC, this fuse is an essential component for protecting electrical systems.

• Current limiting feature to minimize fault currents
• Time-delay functionality for motor protection
• Blade end connections for easy installation

Product Highlights

The LPS-RK series is suitable for use in large distribution switchboards, motor control centers, and machinery disconnect switches. Its dual element design allows for reliable protection in demanding applications.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-150SP

Technical Specifications

• Voltage Rating: 600 Vac; 300 Vdc
• Amperage Rating: 150 A
• Interrupt Rating: 300 kAIC at 600 Vac; 100 kAIC at 300 Vdc
• Response Time: 10 seconds at 500%
• Diameter: 1.61 inches
• Length: 9.63 inches
• End Type: Blade end x blade end
• Class: Class RK1
