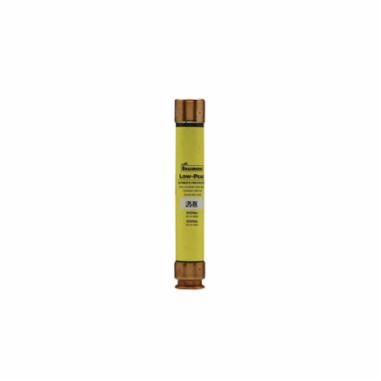

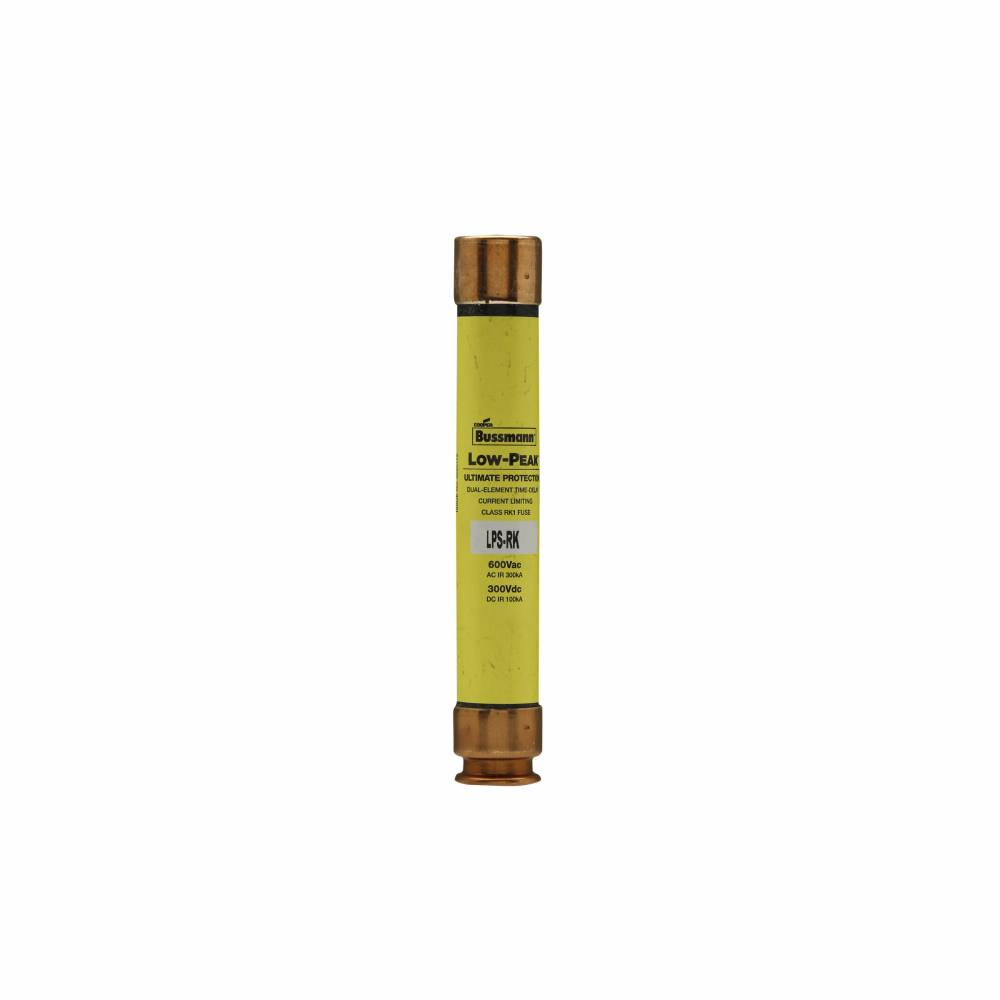

Bussmann LPS-RK-12SP Current Limiting Time Delay Fuse 0.5 A 600 VAC/300 VDC

Product Description

The Bussmann LPS-RK-12SP fuse is a UL Class RK1 rated fuse. It is a current-limiting, time-delay fuse designed for high-performance applications. This fuse has a rated current of 0.5 Amperes and operates at 600 VAC and 300 VDC with interrupt ratings of 300 and 100 kAIC, respectively.

• Current-limiting time-delay functionality
• Dual-element design for greater efficiency
• Ferrule end terminal for easy installation

Product Highlights

This fuse offers essential features for protecting electrical systems from overloads and short circuits. It includes an 8-second response time at 500% of the rated current, ensuring protection from high inrush currents.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Amperage Rating: 0.5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 300/100 kAIC
• Class: RK1
• Body Size: 0.81 in Dia x 5 in L
• Material: Melamine
• Terminal Type: Ferrule End
• Response Time: 8 s at 500%
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Mounting Type: Holder
