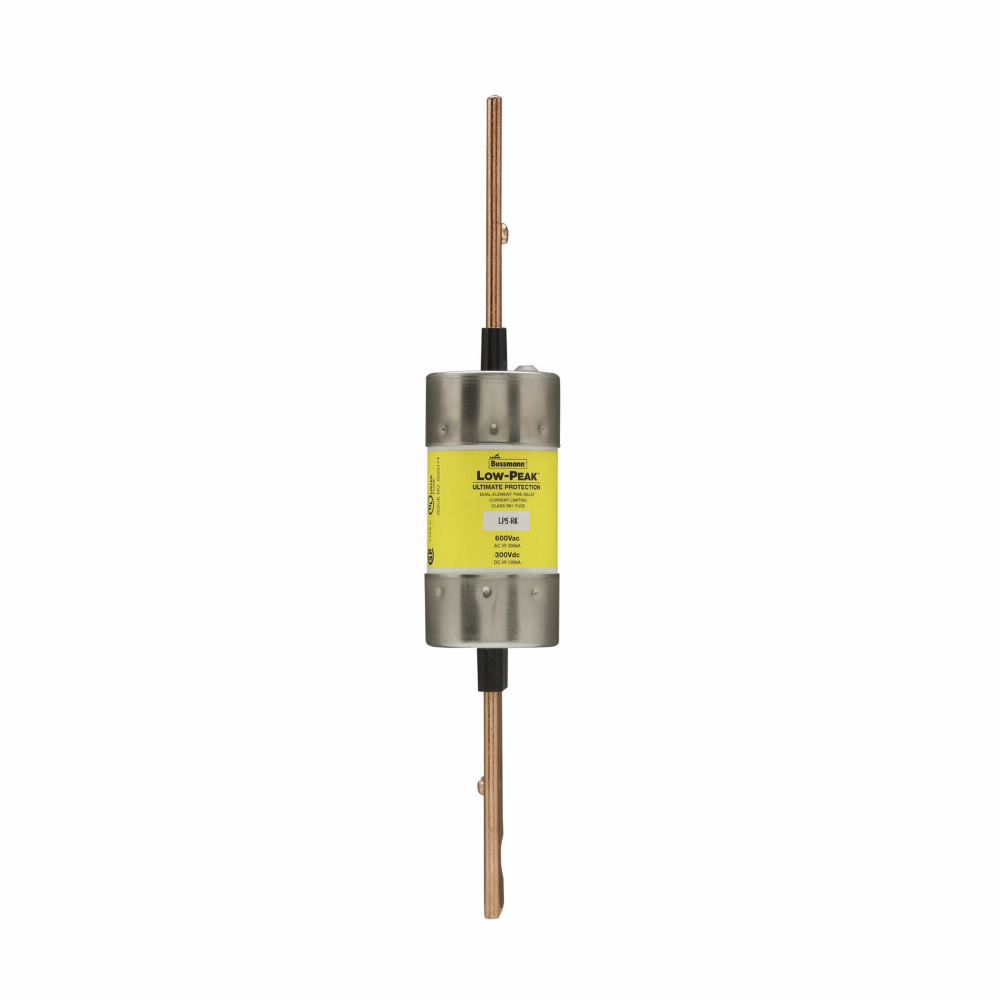

Bussmann LPS-RK-125SP Low Peak Dual Element Fuse 125A 600V RK1

Product Description

The Bussmann series LPS-RK-125SP, with the MPN LPS-RK-125SP, is a reliable low peak dual element fuse designed for various applications. This fuse operates at a rating of one hundred twenty-five amperes and offers superior current-limiting capabilities. It features a time-delay design allowing it to withstand temporary overloads.

• Rated at 125 amps for effective power distribution.
• Time-delay function helps avoid nuisance blowing in circuits.
• Rated interrupting currents of three hundred kiloamperes at six hundred volts AC and one hundred kiloamperes at three hundred volts DC.

Product Highlights

This fuse is ideal for large distribution switchboards, power panelboards, motor control centers, and machinery disconnect switches.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Current Limiting, Time-Delay
• Voltage: 600 Volts AC, 300 Volts DC
• Amperage: 125 Amps
• Diameter: 1.61 inches
• Length: 9.63 inches
• Interruption Rating: 300 kAIC
• End Type: Blade end x blade end
• Weight: 2 lbs
• Response Time: 10 seconds at 500%
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers, Machinery Disconnect Switches
