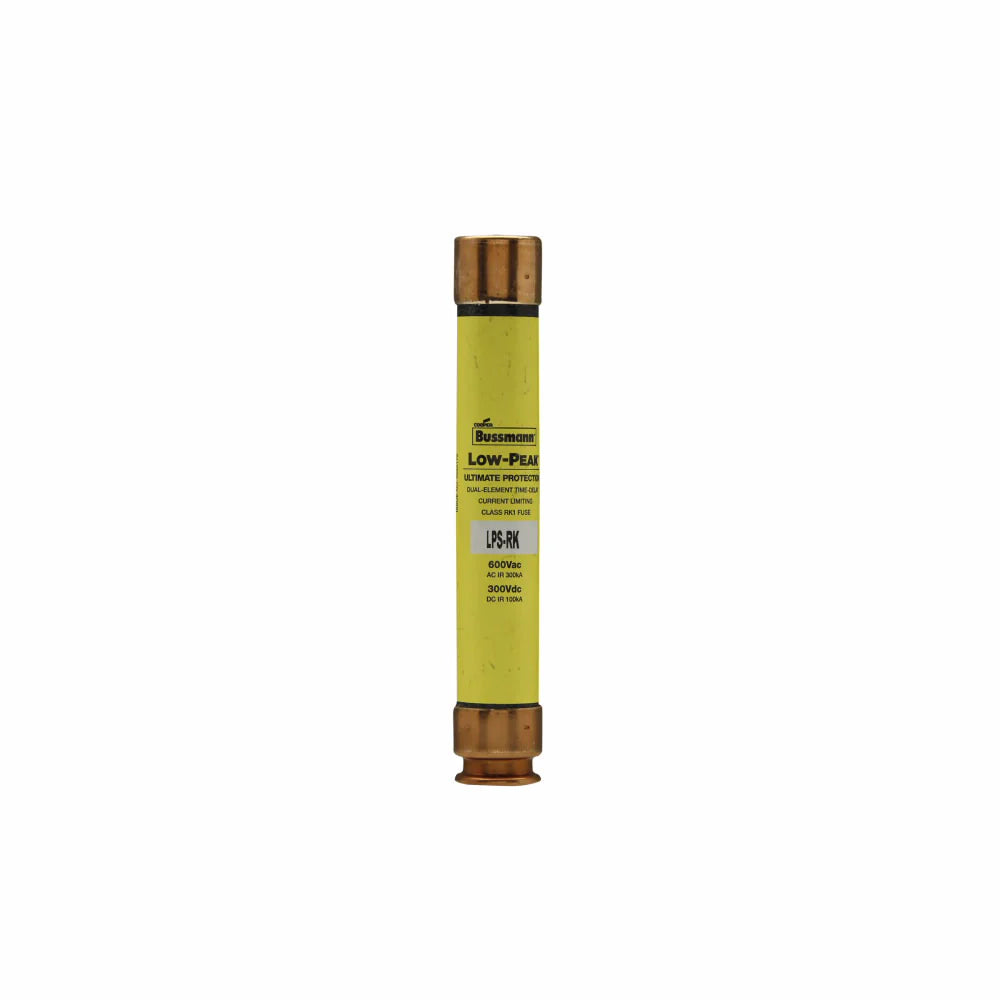

Bussmann LPS-RK-10SP Low Peak Dual Element Fuse 10 Amp 5 Inch

Product Description

The Bussmann LPS-RK-10SP is a low peak dual element fuse designed for high performance in power distribution applications. This fuse operates at 10 amps with a voltage rating of 600 volts AC and 300 volts DC. The fuse features a time-delay mechanism that enables it to handle short-duration overloads without tripping. It is a current-limiting fuse, providing enhanced safety and reliability in electrical circuits.

• Class RK1 and non-indicating design
• Time-delay fuse for temporary overload protection
• Interrupt rating of 100 kAIC at 300 volts DC

Product Highlights

This fuse is suitable for use in large distribution switchboards, machinery disconnect switches, and power panelboards, making it ideal for industrial applications.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPS-RK-10SP

Technical Specifications

• Type: Current Limiting, Time Delay
• Class: Class RK1
• Amperage Rating: 10 Amp
• Voltage Rating: 600 Vac, 300 Vdc
• Response Time: 8 Seconds at 500%
• Interrupt Rating: 100 kAIC at 300 Vdc, 300 kAIC at 600 Vac
• End Type: Ferrule
• Diameter: 0.81 Inches
• Length: 5 Inches
