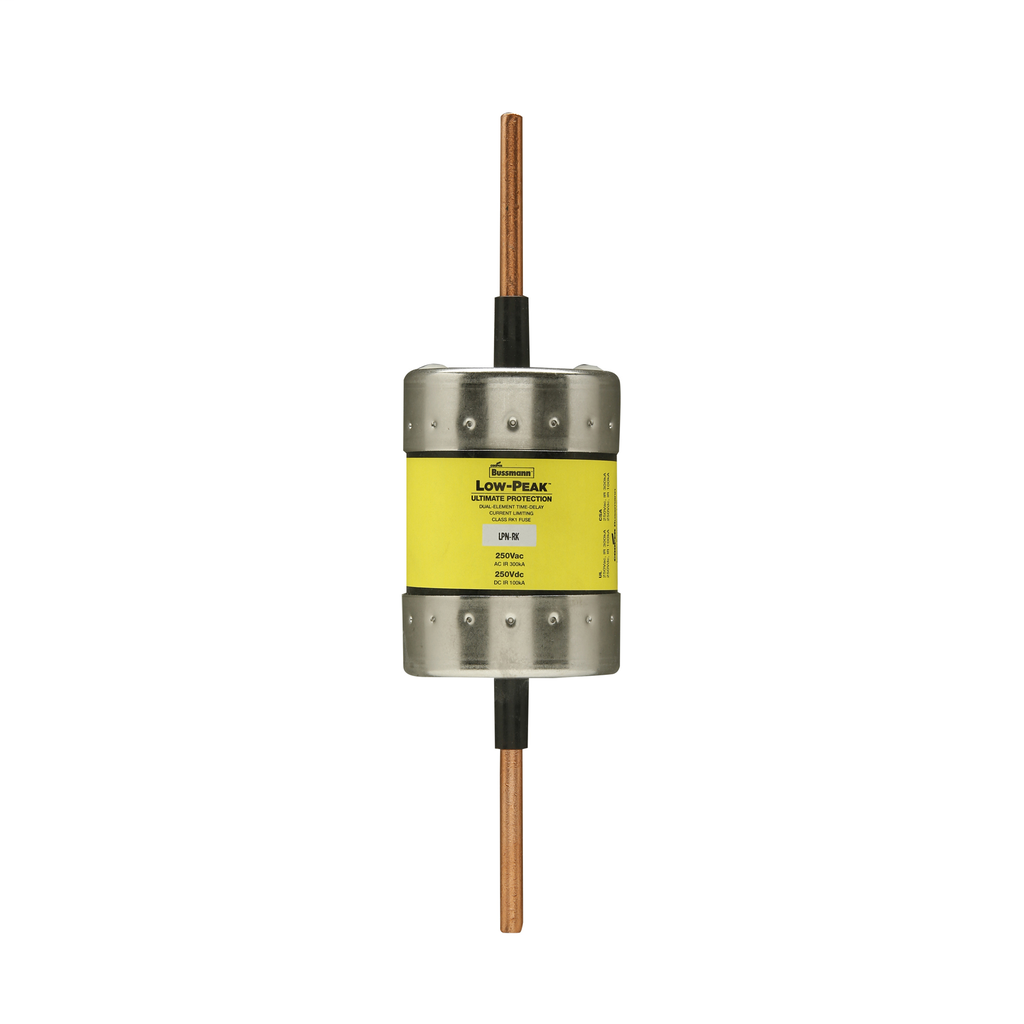

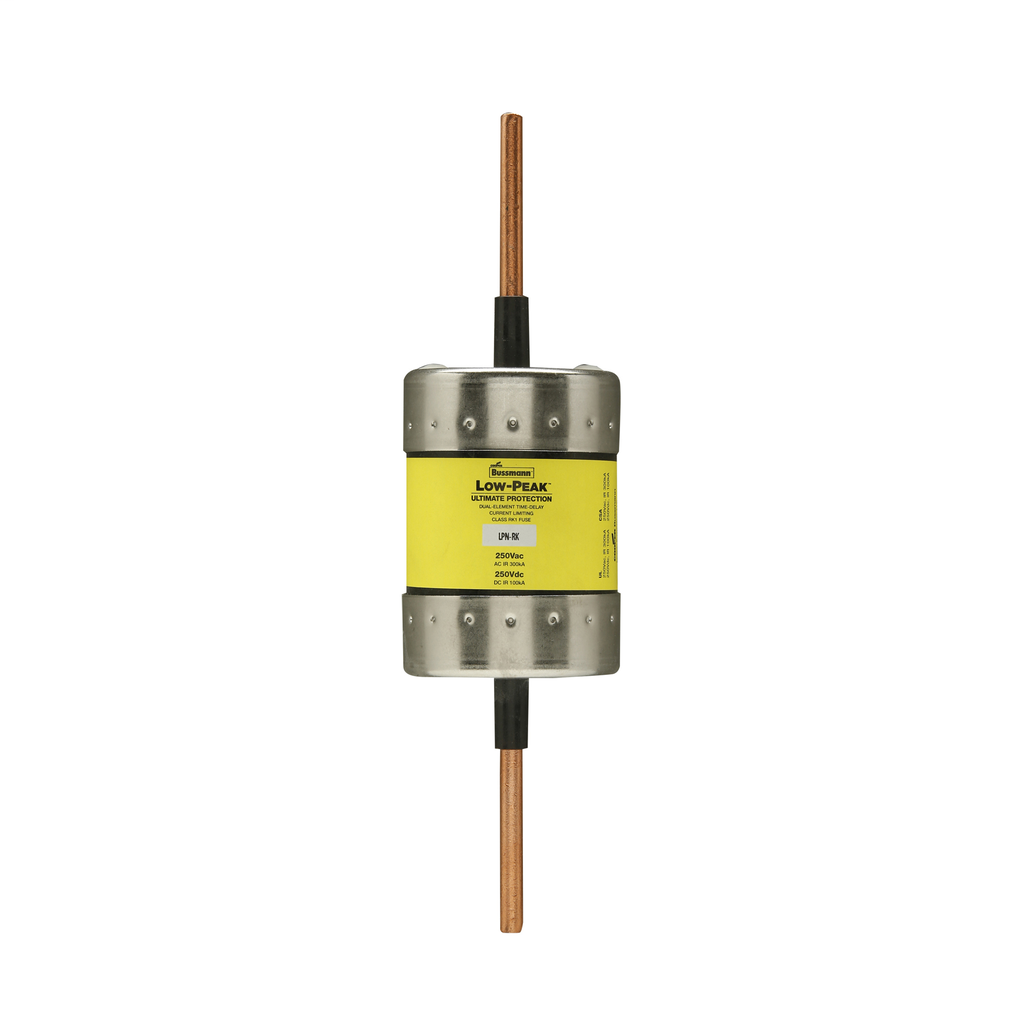

Bussmann LPN-RK250SP Low Peak Dual Element Fuse 250A 250V

Product Description

The Bussmann LPN-RK250SP is a low peak dual element fuse designed for high-performance requirements. This fuse is ideal for applications in large distribution switchboards, power panelboards, and motor control centers. It features a high interrupting rating and versatile use across various electrical installations.

• 250 amps, 250 volts AC
• Time delay and current limiting
• Dual-element design for enhanced protection

Product Highlights

The Bussmann LPN-RK250SP is known for its reliability and effectiveness in preventing electrical faults. It is compatible with various systems and complies with industry standards, making it suitable for industrial applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Fuse
• Class: RK1
• Voltage Rating: 250 volts AC, 250 volts DC
• Amperage Rating: 250 amps
• Diameter: 2.36 inches
• Length: 8.63 inches
• Weight: 1.75 pounds
• Response Time: 10 seconds at 500%
