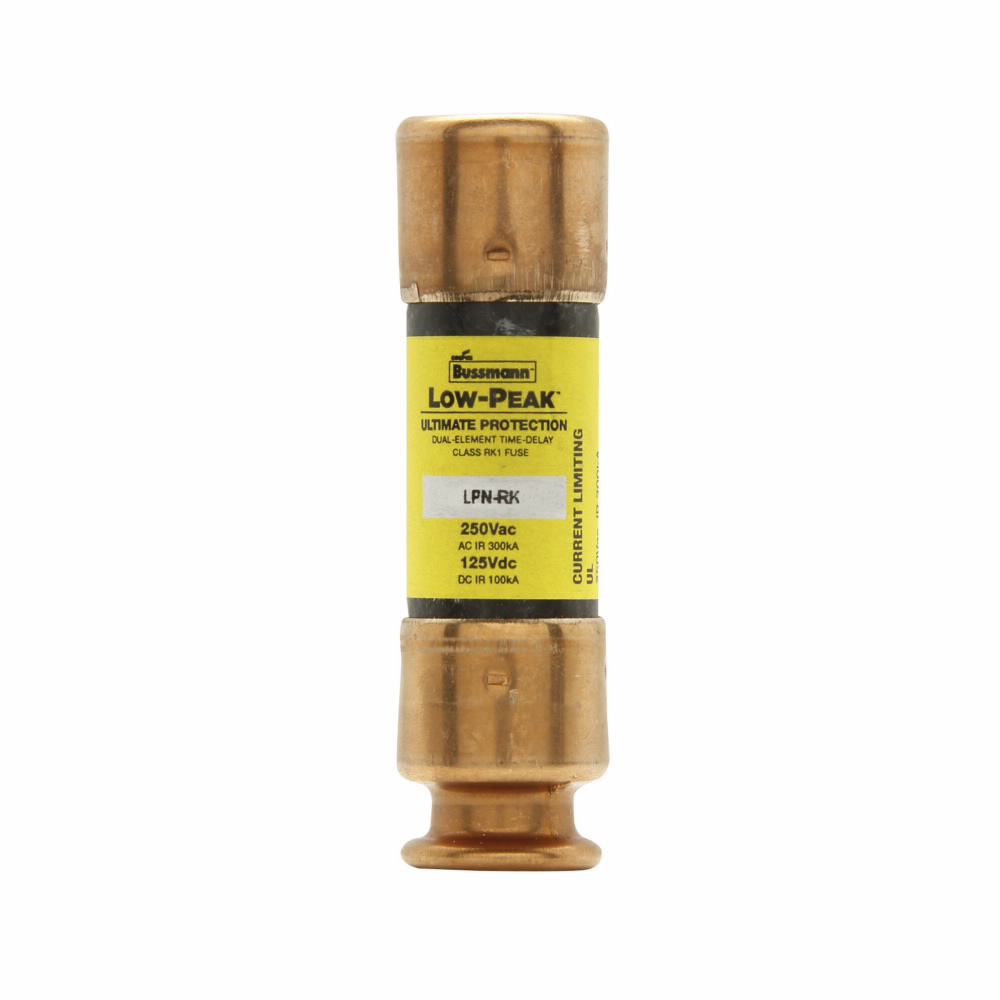

Bussmann LPN-RK-9SP Low Peak Dual Element Fuse 9 A 250 V 300/100 kAIC

Product Description

Bussmann LPN-RK-9SP is a low peak dual element fuse designed for effective protection in electrical applications. This fuse operates at nine amps and is classified as RK1. It features a time-delay design with current-limiting capabilities for enhanced safety. The fuse is constructed with ferrule-end connections for easy installation.

• Class RK1 dual element fuse for reliable operation
• Current-limiting with time delay for enhanced safety
• Compatible with various electrical systems

Product Highlights

This fuse is suitable for large distribution switchboards and power panelboards. Its design allows for 8 seconds of response time at 500%, ensuring quick reaction against fault conditions.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPN-RK-9SP

Technical Specifications

• Amperage: 9 Amp
• Voltage Rating: 250 VAC/VDC
• Interrupt Rating: 300/100 kAIC
• Element Type: Dual
• Body Size: 0.56 inches Diameter x 2 inches Length
• Material: Melamine
• Response Time: 8 seconds at 500%
• Connection Type: Ferrule End
