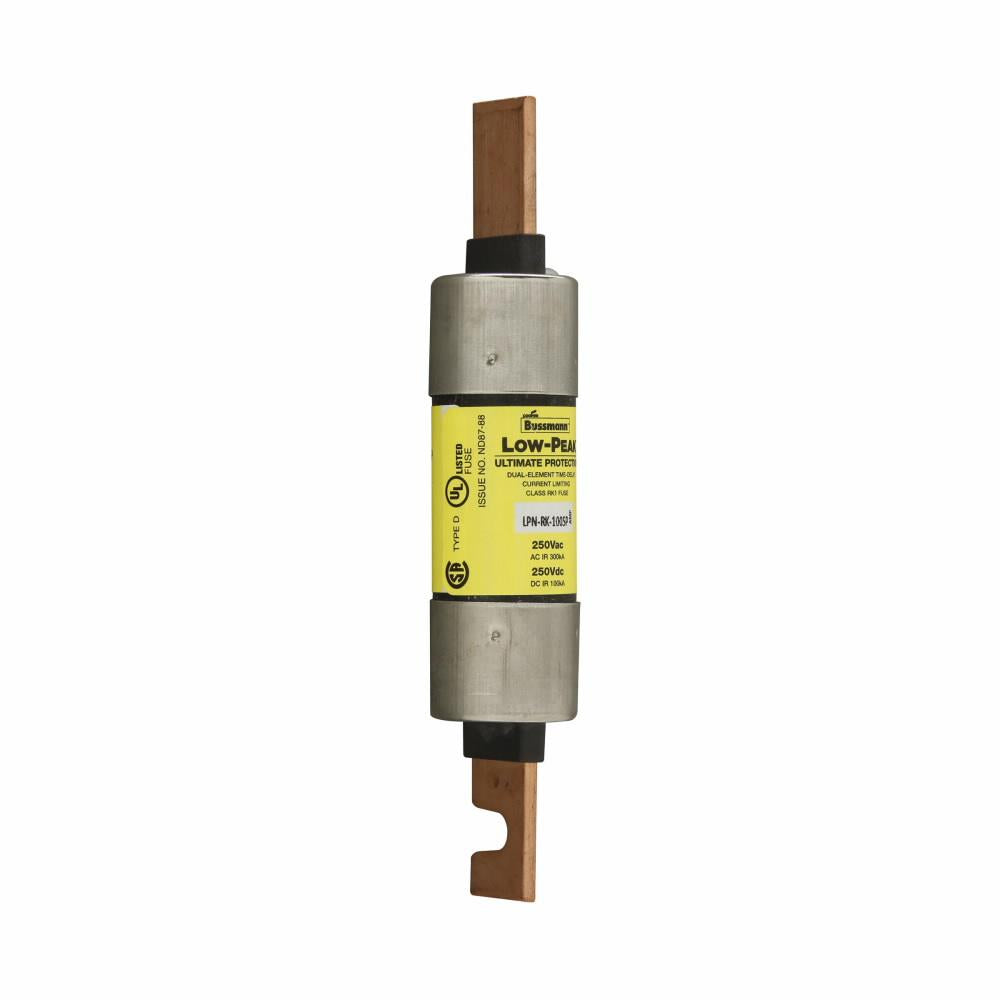

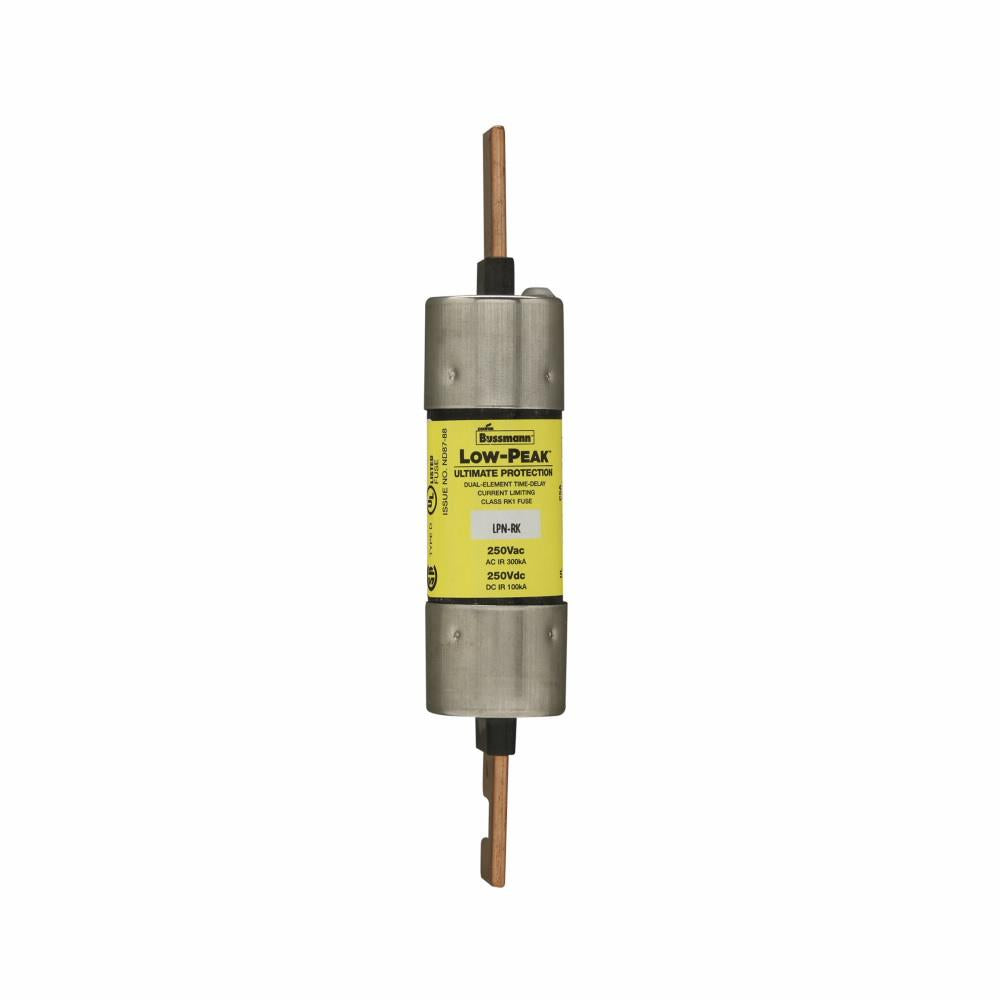

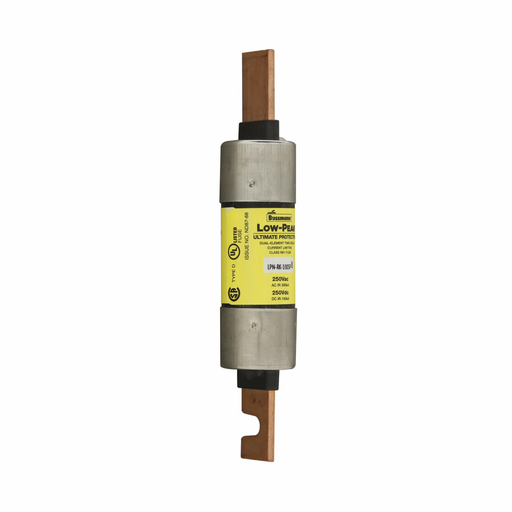

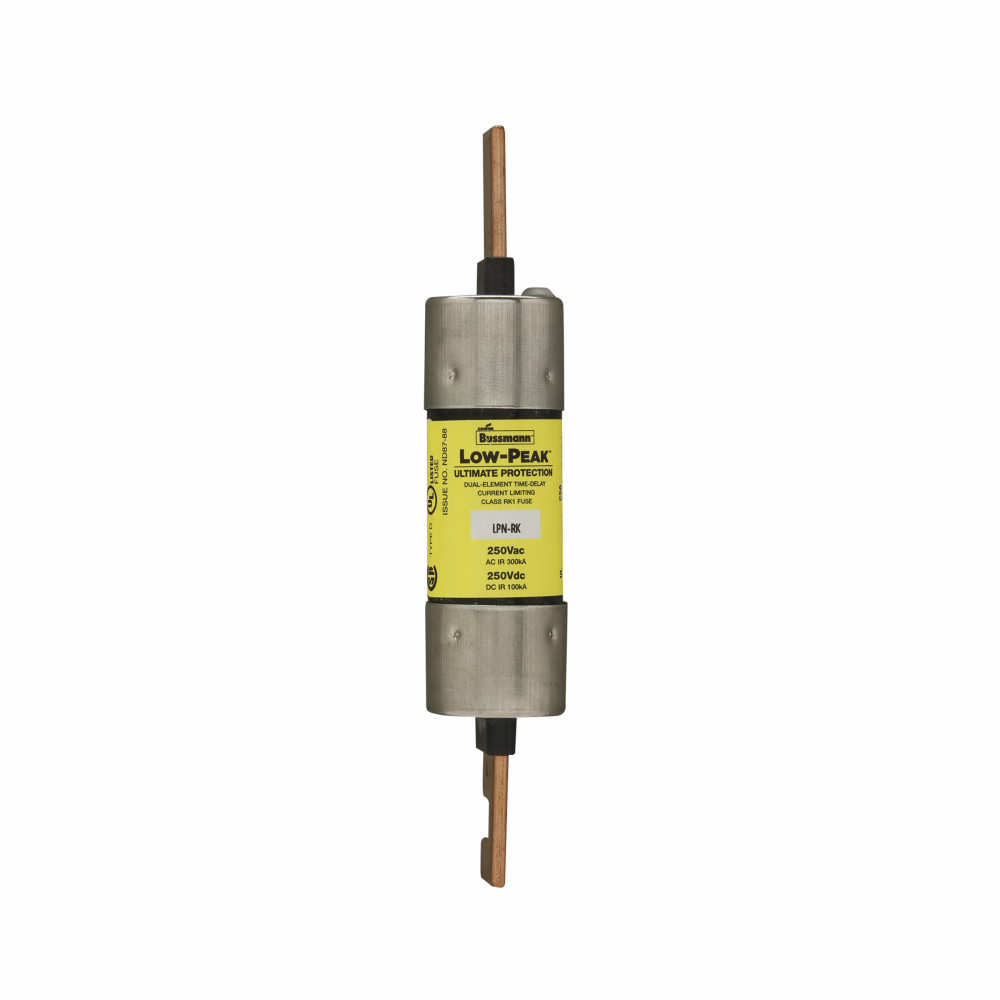

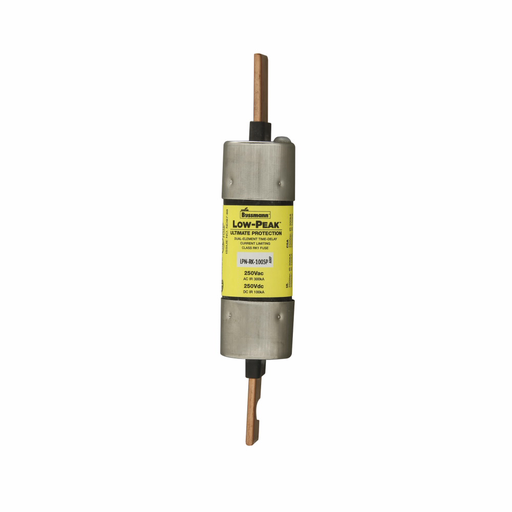

Bussmann LPN-RK-80SP Low Peak Dual Element Fuse 80 A Dual Element 100/300 kA

Product Description

The Bussmann Series LPN-RK-80SP fuse is designed for power distribution in electrical systems. This 80 amp, dual-element, time-delay fuse offers current limiting features tailored for safe operation. It provides overload and short circuit protection, enhancing the reliability of your electrical installations.

• Rated for 80 amps with a dual-element design
• Includes time-delay functions to manage inrush currents
• Designed for use in large distribution switchboards and motor control centers

Product Highlights

This fuse protects against damaging electrical faults with fast response times and current limiting capabilities.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 250 V
• Interrupt Rating: 100 kAIC at 250 VAC, 300 kAIC at 250 VDC
• Element Type: Dual
• Response Time: 10 seconds at 500%
• Body Size: 1.11 inches diameter by 5.88 inches length
• End Type: Blade
• Material: Melamine
