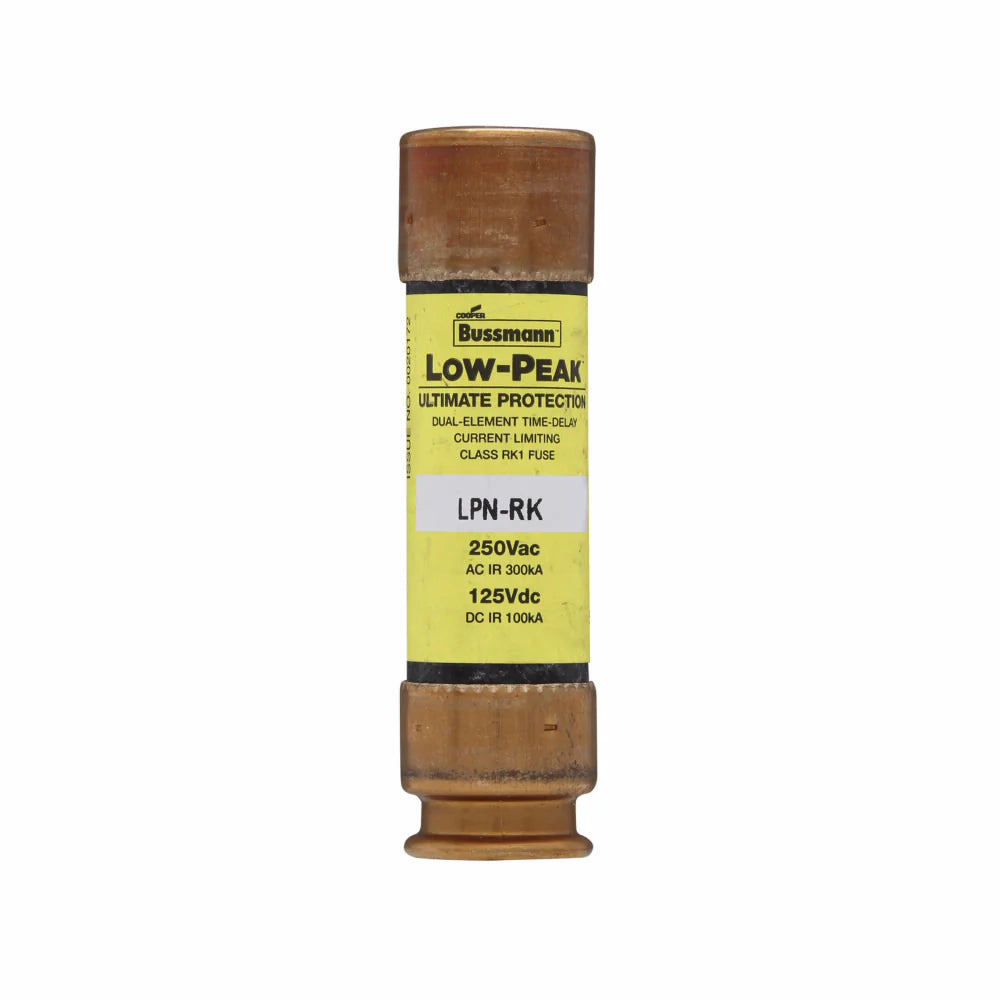

Bussmann LPN-RK-60SP Low Peak Dual Element Fuse 60 A

Product Description

The Bussmann LPN-RK-60SP is a low peak dual element fuse manufactured by Bussmann. This fuse is designed to provide protection in various electrical applications. It has a rating of sixty amps and features a time-delay function that enables it to withstand instantaneous changes in current.

• Current-limiting design
• Time-delay functionality
• Dual element for enhanced reliability

Product Highlights

This fuse is ideal for large distribution switchboards and power panelboards. The LPN-RK-60SP excels in applications requiring surge protection and reliable fault interruption.

Product Information

Standard Information

• Product ID: 58638
• Brand: Bussmann

Technical Specifications

• Amperage: 60 A
• Voltage: 125 Vdc, 250 Vac
• Diameter: 0.81 Inch
• Length: 3 Inch
• Type: Current Limiting, Time-Delay
• Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 125 Vdc
• End Type: Ferrule
• Applications: Large Distribution Switchboards, Power Panelboards
