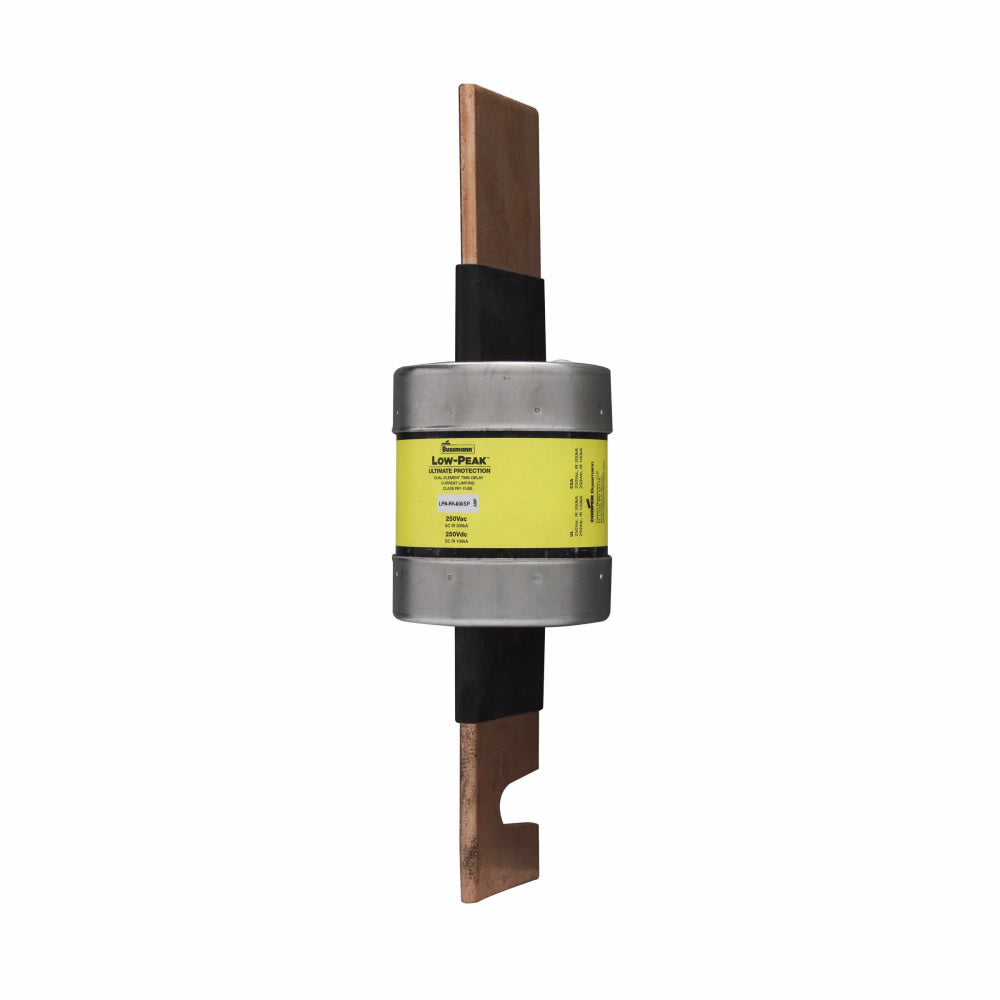

Bussmann LPN-RK-600SP FUSE 600A 250VAC/VDC 300/100KAIC RK1 MEL

Product Description

The Bussmann LPN-RK-600SP fuse is designed for high overload and short circuit protection. It features a current limiting time delay characteristic and functions well in various applications including motor control centers and large distribution switchboards. This fuse has an amperage rating of six hundred and a voltage rating of two hundred fifty VAC/VDC. The dual-element design helps prevent damaging currents.

• Fast short circuit protection
• Electrically isolated end caps for safety
• Compatible with NEMA and IEC motor controllers

Product Highlights

Utilizes dual-element technology for effective current limitation. Ideal for applications requiring time delay performance to protect against high inrush currents.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Amperage Rating: 600 A
• Voltage Rating: 250 VAC/VDC
• Interrupt Rating: 300/100 kAIC
• Body Size: 2.88 in Dia x 10.38 in L
• Response Time: 10 s at 500%
• Termination Type: Blade End
• Material: Melamine
