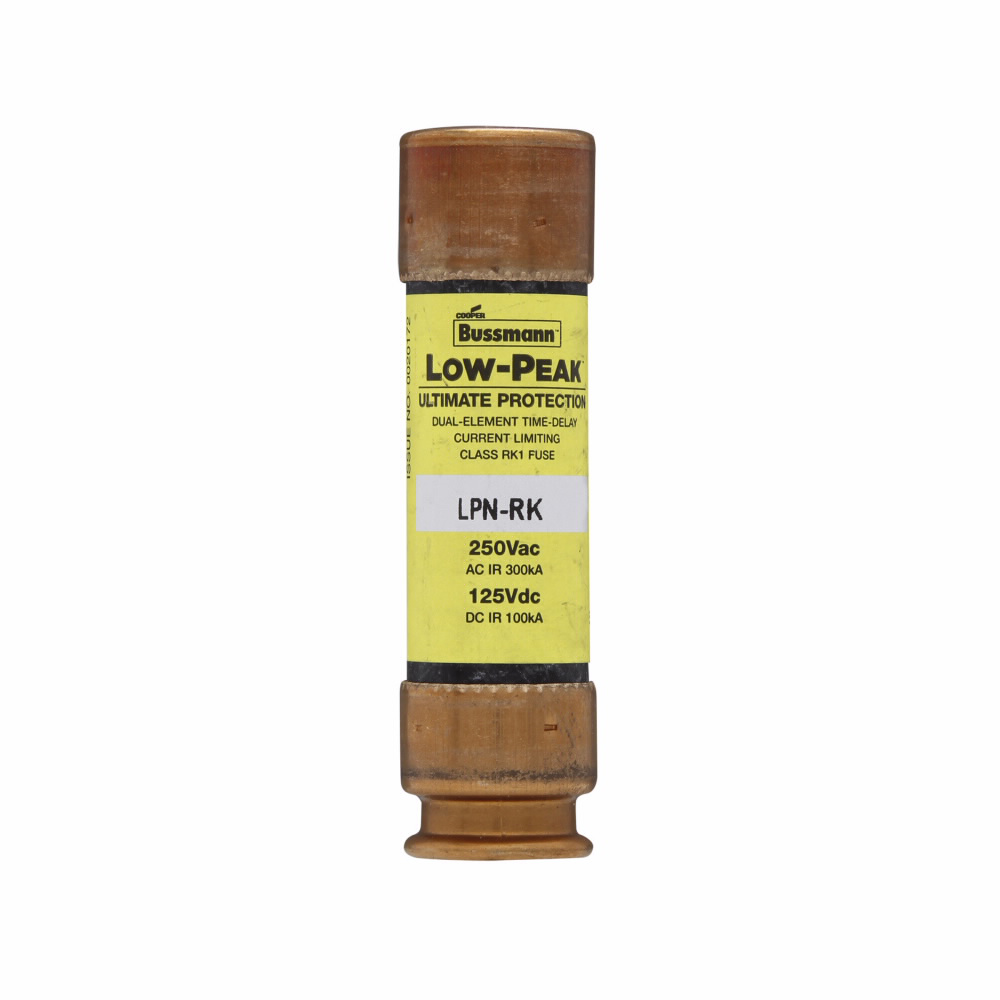

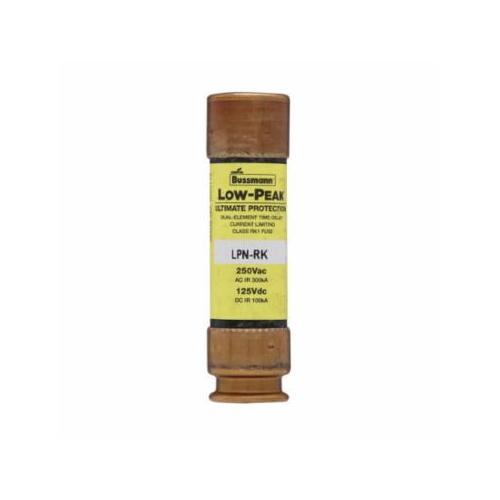

Bussmann LPN-RK-45SP Low Peak Dual Element Fuse 45 Amp 250 VAC/125 VDC

Product Description

The Bussmann Series LPN-RK-45SP is a 45 Amp dual-element fuse designed for use in various power distribution applications. This low peak fuse is classified as RK1, providing time-delay and current-limiting features, making it ideal for high inrush loads. Its ferrule end connection and robust construction ensure reliability in demanding environments.

• Rated for 45 Amps with dual element design
• Time-delay feature for enhanced performance
• Current-limiting capability protects downstream equipment

Product Highlights

This fuse is suitable for large distribution switchboards, power panelboards, and machinery disconnect switches, ensuring effective operation under fault conditions.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPN-RK-45SP

Technical Specifications

• Type: Current Limiting Time Delay
• Amperage Rating: 45 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 300 kAIC at 250 VAC, 100 kAIC at 125 VDC
• Response Time: 10 seconds at 500%
• Body Size: 0.81 inches Diameter x 3 inches Length
• Material: Melamine
• Element: Dual
• End Type: Ferrule
• Standard Compliance: CE, CSA C22.2, UL
