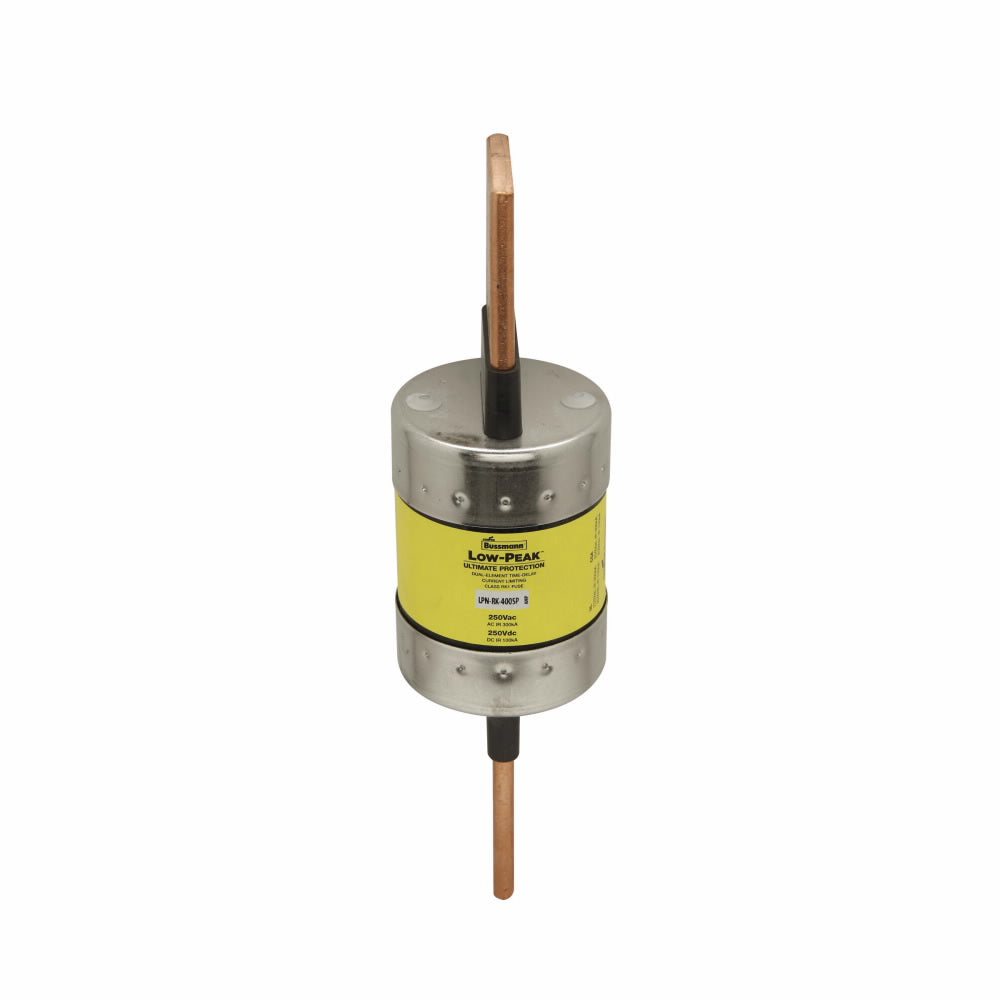

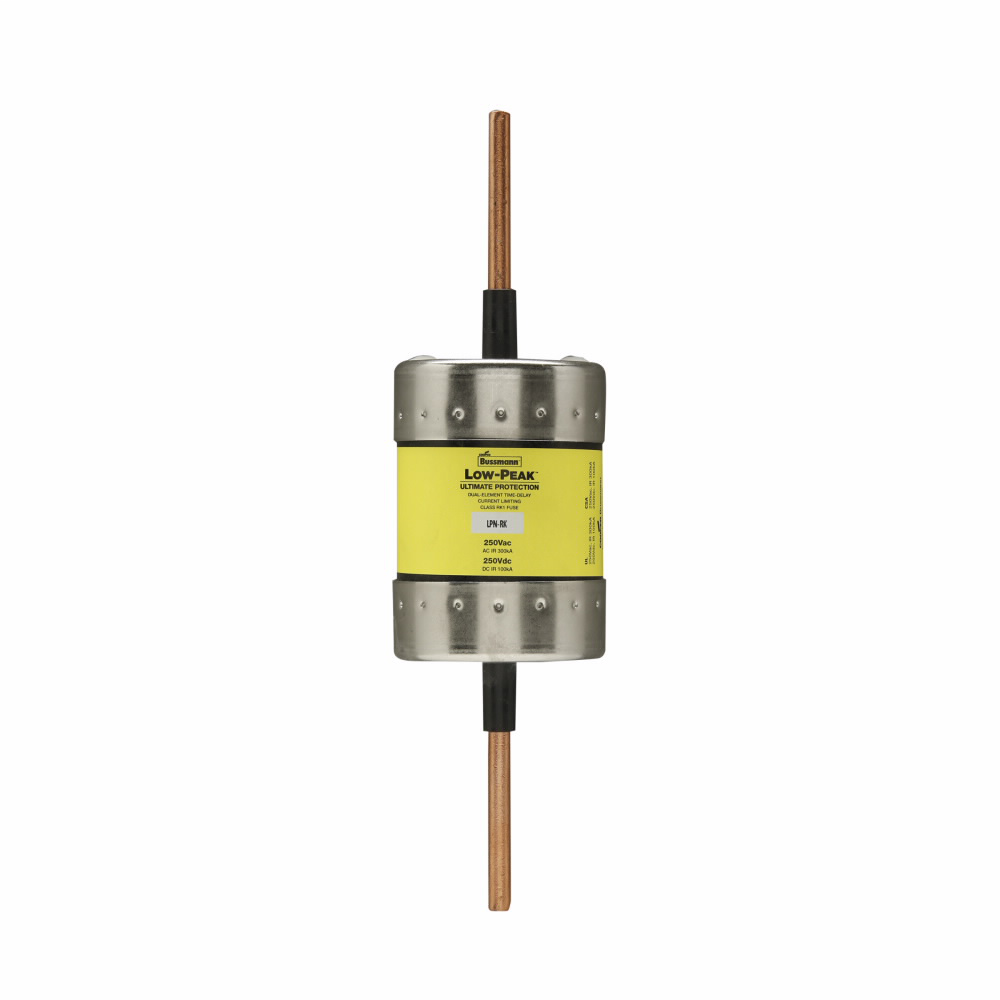

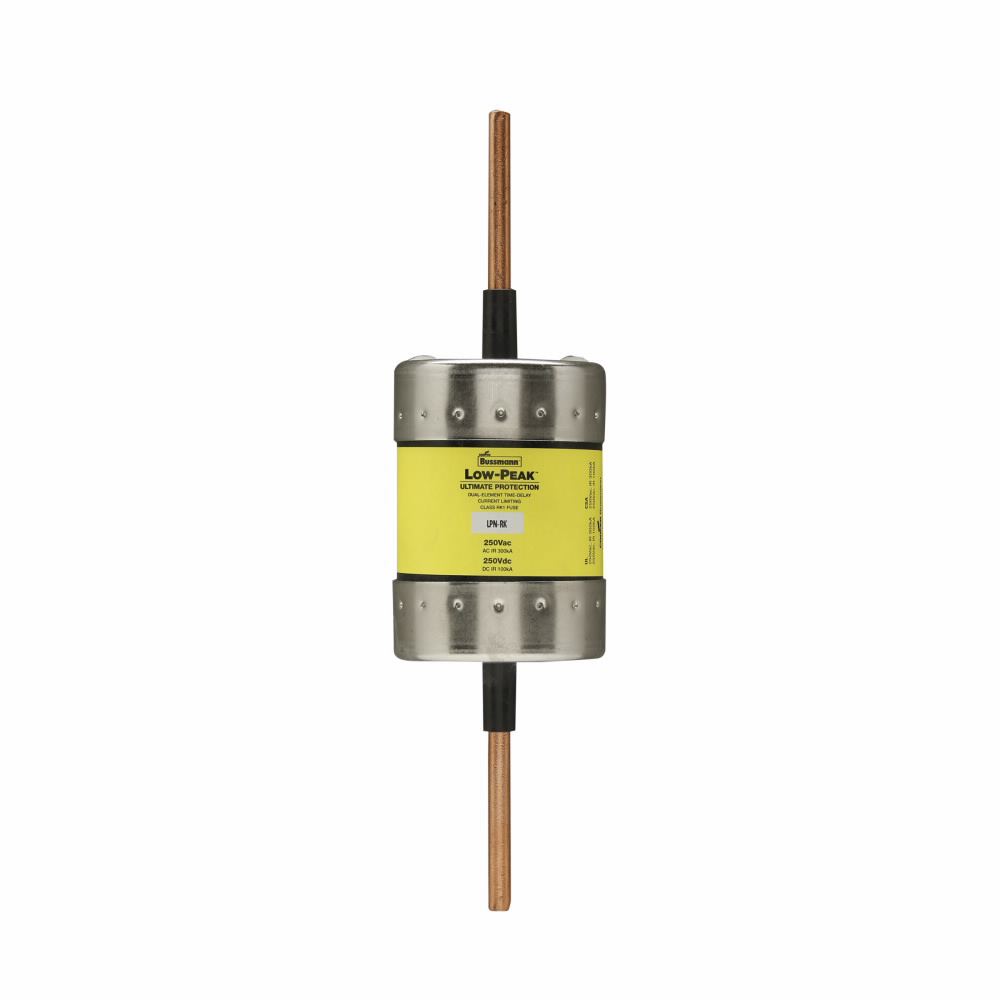

Bussmann LPN-RK-400SP Low Peak Dual Element Fuse

Product Description

The Bussmann Series LPN-RK-400SP Low Peak Dual Element Fuse is suitable for use in various electrical applications. With a current rating of four hundred amperes and a voltage rating of two hundred fifty volts, this fuse provides reliable protection for electrical equipment. It features a dual-element design that allows for time-delay operation and current limiting capabilities.

• Current Limiting Fuse
• Time Delay Operation
• Blade End Connections

Product Highlights

This fuse is ideal for use in large distribution switchboards, power panelboards, and machinery disconnect switches. It is UL listed and compliant with CE and CSA standards.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Catalog Number: LPN-RK-400SP
• Type: Current Limiting, Time-Delay
• Class: Class RK1
• Voltage Rating: 250 Vac, 250 Vdc
• Amperage Rating: 400 A
• Dimensions: 8.63 inches length x 2.36 inches diameter
• Weight: 1.75 lb
• Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
• Response Time: 10 seconds at 500%
• End Type: Blade end x blade end
• Applications: Large Distribution Switchboards, Power Panelboards, Motor Control Centers
