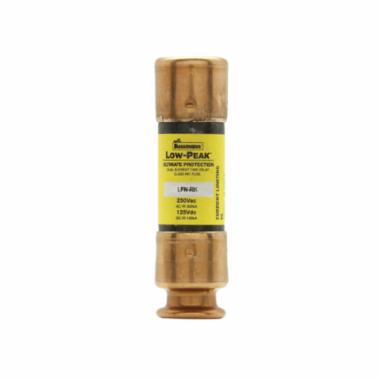

Bussmann LPN-RK-4-1/2SP Current Limiting Time Delay Fuse 4.5 A 250 VAC/125 VDC

Product Description

The Bussmann LPN-RK-4-1/2SP is a current limiting time delay fuse that falls under the UL Class RK1 category. It has an amperage rating of four point five amperes and is rated for two hundred fifty volts AC and one hundred twenty-five volts DC. This fuse provides short circuit protection and is designed for use in various electrical applications.

• Amperage rating: 4.5 A
• Voltage rating: 250 VAC/125 VDC
• Interrupt rating: 300/100 kAIC

Product Highlights

This fuse is recognized for its dual-element design and is a part of the Low-Peak series. It ensures optimal protection and works efficiently in various configurations.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Bussmann

Technical Specifications

• Body Size: 9/16 in Dia x 2 in L
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 8 s at 500%
• Series: LPN-RK
• Terminal Type: Ferrule End
• Type: Current Limiting Time Delay
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 4.5 A
• Interrupt Rating: 300/100 kAIC
• Class: RK1
• Body Type: Cartridge
