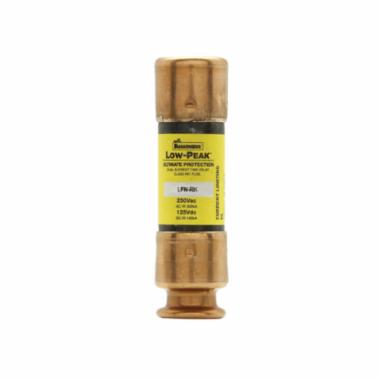

Bussmann LPN-RK-3-1/2SP Current Limiting Time Delay Fuse 3.5 A 250 VAC/125 VDC

Product Description

The Bussmann LPN-RK-3-1/2SP is a Low-Peak current limiting time delay fuse designed for effective circuit protection. With a rating of three point five amperes, it operates at two hundred fifty volts alternating current or one hundred twenty-five volts direct current. This fuse features an interrupt current rating of three hundred kiloamperes and is classified as RK1. It is suitable for various electrical applications where reliable performance is essential.

• Time delay performance for motor protection.
• Dual-element design for enhanced protection.
• Holds up during inrush conditions without damage.

Product Highlights

The Bussmann LPN-RK-3-1/2SP fuse is known for its fast-acting short circuit protection and time delay function that safeguards electrical systems. Its insulated end caps minimize exposure and enhance safety during operation, preventing electrical hazards.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK1
• Amperage Rating: 3.5 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 300/100 kAIC
• Response Time: 8 s at 500%
• Body Size: 0.56 in Dia x 2 in L
• Material: Melamine
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Terminal Type: Ferrule End
• Element: Dual
• Body Type: Cartridge
