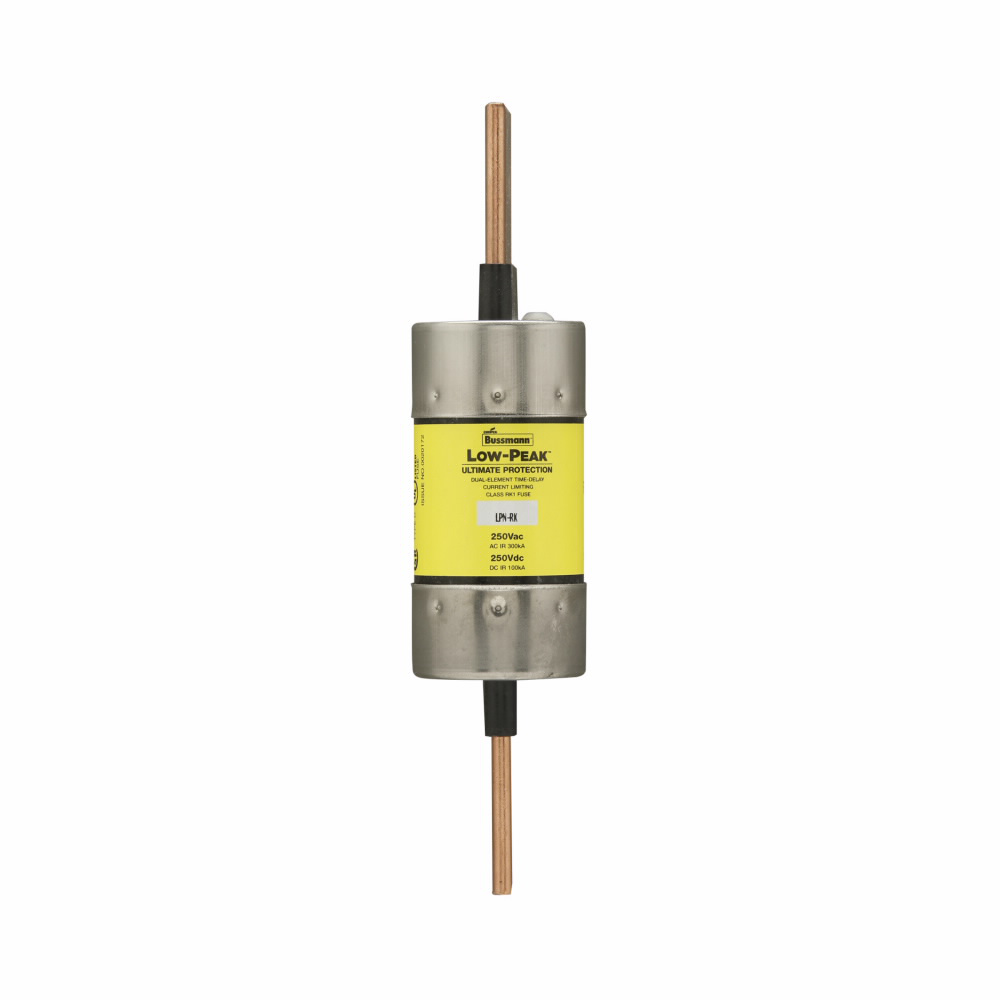

Bussmann LPN-RK-175SP Low Peak Dual Element Fuse 175 A 250 VAC/VDC 300/100 kAIC

Product Description

Bussmann LPN-RK-175SP is a low peak dual element fuse designed for effective current limiting and time delay applications. It operates at 175 amp and is rated for 250 volts alternating current (VAC) and direct current (VDC). This fuse is suitable for various industrial applications, particularly those that require a reliable and efficient response to short circuits.

• Current limiting, time delay performance
• High interrupting capacity of 300/100 kAIC
• Compatible with large distribution switchboards and motor control centers

Product Highlights

This fuse offers a dependable solution for system protection, ensuring components are safeguarded from the damaging effects of short circuit currents.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPN-RK-175SP

Technical Specifications

• Voltage Rating: 250 VAC/VDC
• Amperage Rating: 175 A
• Interrupt Rating: 300/100 kAIC
• Response Time: 10 seconds at 500%
• Element: Dual
• Type: Current Limiting Time Delay
• Body Type: Cartridge
• Material: Melamine
• Diameter: 0.61 inches
• Length: 7.13 inches
• Mounting Type: Holder
• Class: RK1
• End Type: Blade
