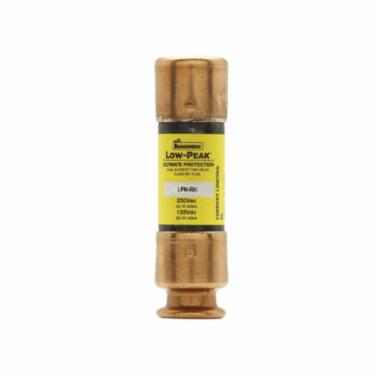

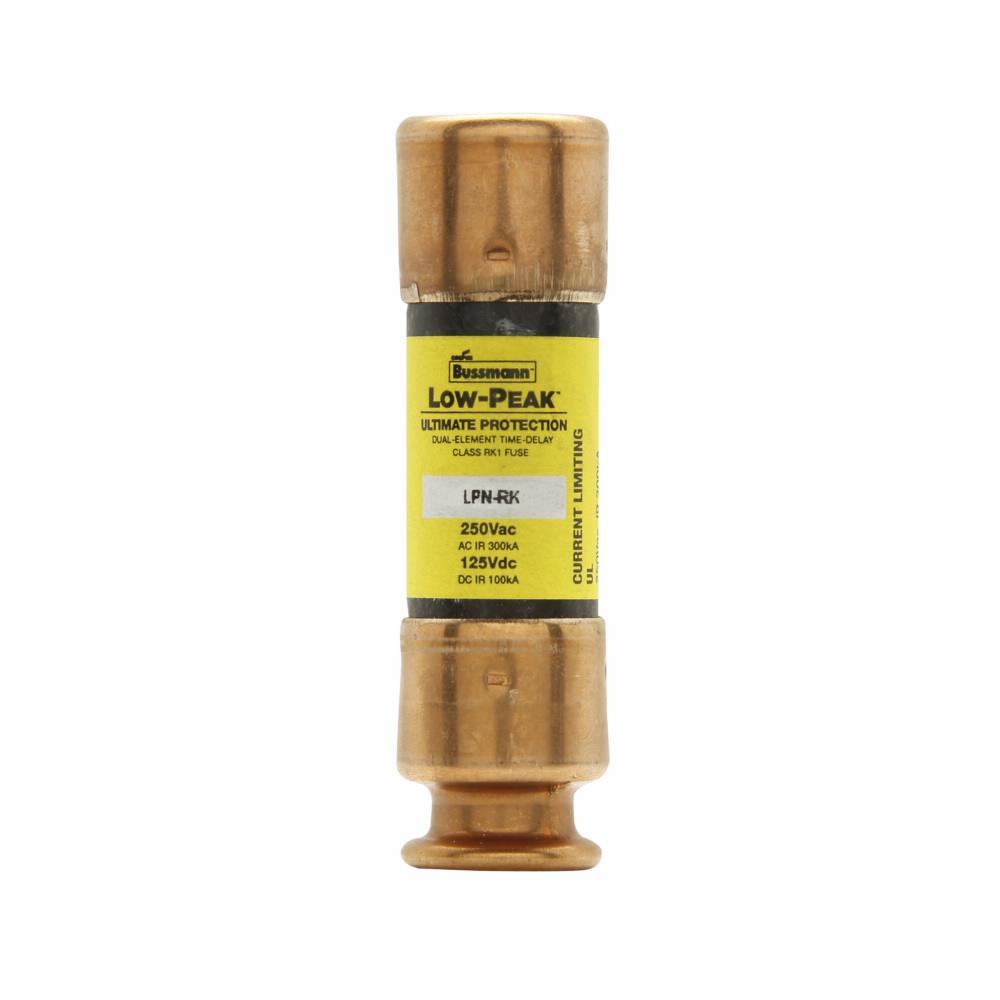

Bussmann LPN-RK-15SP Low-Peak 125/250V 15A Time Delay Fuse

Product Description

The Bussmann LPN-RK-15SP is a time delay fuse designed for electrical applications. It operates at 15 amperes and supports voltage ratings of 250 VAC and 125 VDC. This fuse is part of the Low-Peak series, which offers optimal protection for electrical systems.

• Time delay feature for managing inrush currents
• Current limiting functionality for enhanced circuit protection
• 300 kA interrupt rating for safety and reliability

Product Highlights

This fuse is ideal for applications requiring secure protection against overloads and short circuits. It ensures safe operation and reduces the risk of damage to electrical equipment.

Product Information

Standard Information

• Amperage Rating: 15 A
• Voltage Rating: 250 VAC / 125 VDC

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK1
• Body Size: 0.56 inches Diameter x 2 inches Length
• Element: Dual
• Material: Melamine
• Mounting Type: Holder
• Terminal Type: Ferrule End
• Response Time: 8 seconds at 500%
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 300/100 kAIC
