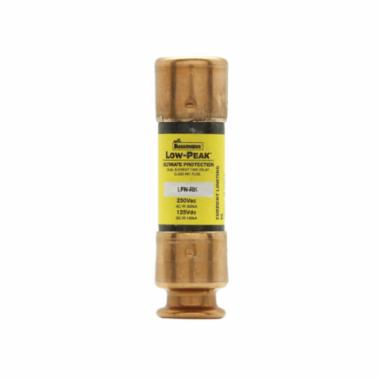

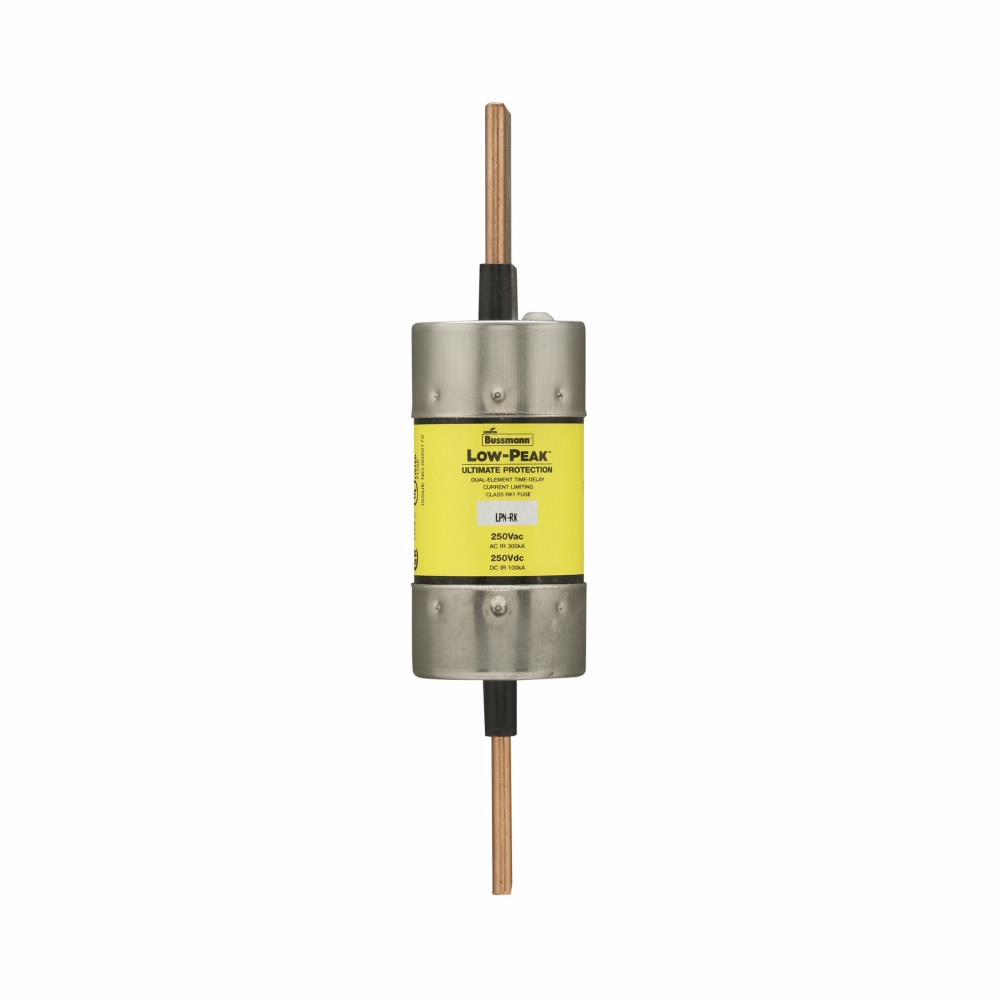

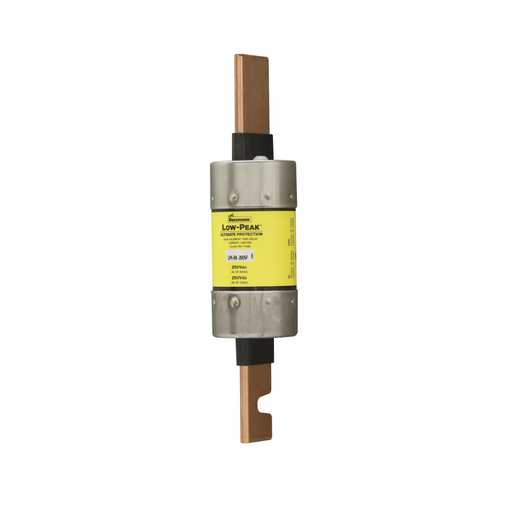

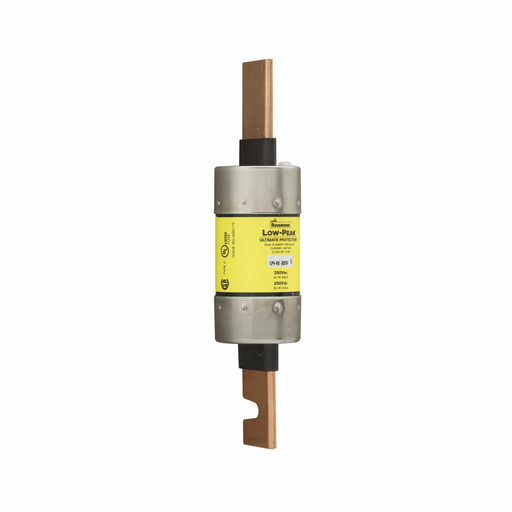

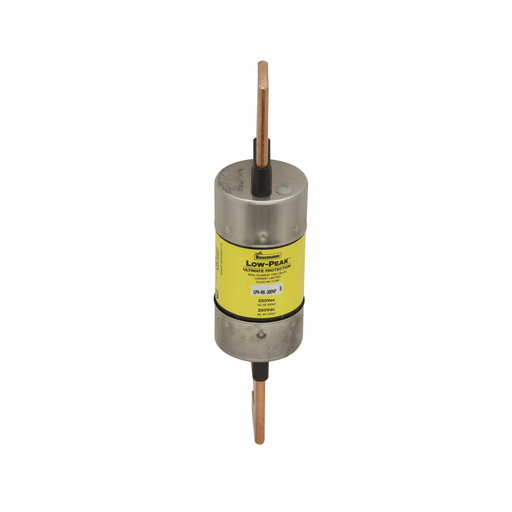

Bussmann LPN-RK-110SP Low Peak Dual Element Fuse 110 A

Product Description

The Bussmann LPN-RK-110SP is a low peak dual element fuse designed for reliable circuit protection. This fuse features a current limiting design to shield against short circuit conditions. It offers a time-delay, allowing high inrush currents to pass without nuisance blowing. The fuse is rated for 110 Amps and has an interrupting capacity of 300 kA at 250 Vac and 100 kA at 125 Vdc.

• Amperage rating: 110 Amps
• Interrupt Rating: 300 kAIC
• Dual element construction

Product Highlights

This fuse is suitable for applications such as large distribution switchboards and machinery disconnect switches. Its design simplifies circuit protection while enhancing safety.

Product Information

Standard Information

• Brand: Bussmann
• Sub Brand: Low-Peak

Technical Specifications

• Type: Current Limiting, Time-Delay
• Voltage Rating: 250 Volt
• Length: 7.13 Inch
• Diameter: 0.61 Inch
• Element: Dual
• End Type: Blade
• Response Time: 10 seconds at 500%
• Standard: CE, CSA C22.2, UL
