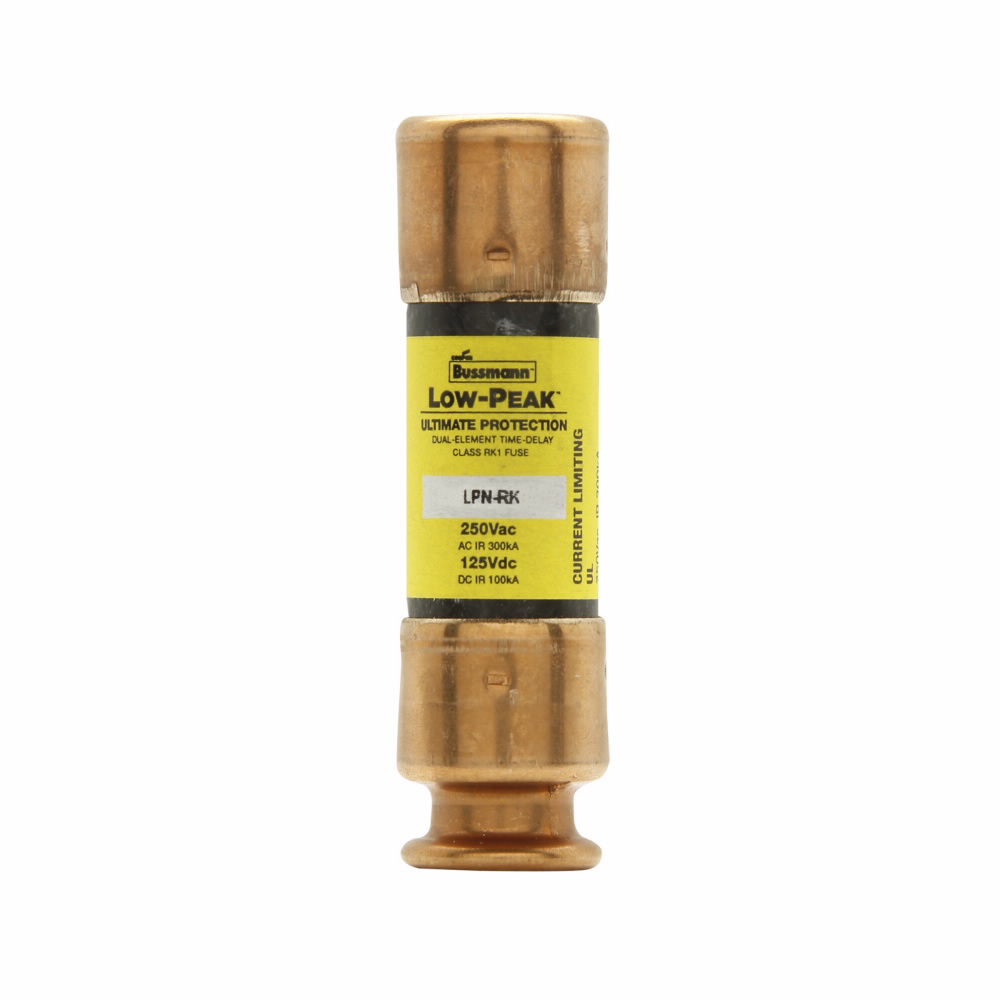

Bussmann LPN-RK-10SP Low Peak Dual Element Fuse 10 A 250 VAC/125 VDC 300/100 kAIC

Product Description

The Bussmann Series LPN-RK-10SP is a low peak dual-element fuse designed for effective circuit protection. This fuse operates at ten amps with a voltage rating of 250 VAC and 125 VDC. It is a time-delay and current-limiting type that provides enhanced protection for your electrical systems.

• Voltage Rating: 250 VAC/125 VDC
• Interrupting Rating: 300 kAIC at 250 VAC, 100 kAIC at 125 VDC
• Time Delay: 8 seconds at 500% overload

Product Highlights

This fuse is suitable for various applications, including large distribution switchboards and motor control centers. The construction features a ferrule end terminal type for ease of installation.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPN-RK-10SP

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK1
• Element: Dual
• Diameter: 0.56 inches
• Length: 2 inches
• Weight: 0.5 lb
• Material: Melamine
• Response Time: 8 seconds at 500%
• Mounting Type: Holder
• End Type: Ferrule
• Application: Large Distribution Switchboards, Power Panelboards
