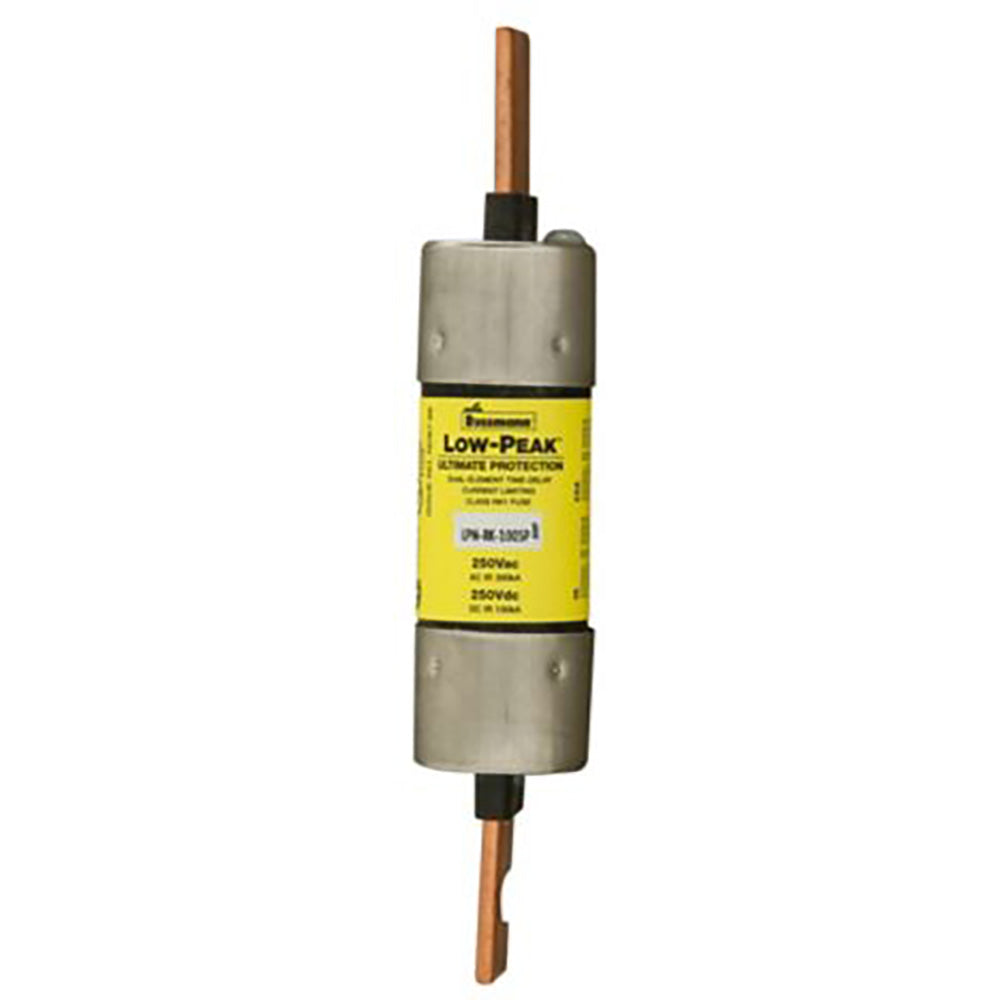

Bussmann LPN-RK-100SPI Fuse Class RK1 Time-Delay 100 A

Product Description

The BUSSMANN LPN-RK-100SPI is a Class RK1 time-delay, dual-element, current limiting fuse. Rated at 100 A, it is an indicating fuse with an interrupting rating of 300 kA at 250 Vac and 100 kAIC at 250 Vdc. It provides high in-rush current motor protection and tolerates brief spikes from short events such as motor starts or equipment startups.

• Indicating
• High in-rush current motor protection
• Time-delay

Product Highlights

The Bussmann LPN-RK-100SPI fuse is ideal for large distribution switchboards, power panelboards, and motor control centers.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPN-RK-100SPI
• Country of Origin: Mexico

Technical Specifications

• Product Name: Eaton Bussmann series LPN-RK fuse
• Catalog Number: LPN-RK-100SPI
• UPC: 051712626521
• Product Length/Depth: 5.88 in
• Product Height: 1.1 in
• Product Width: 1.1 in
• Product Type: Fuse
• Amperage Rating: 100 A
• Interrupt rating: 300 kAIC at 250 Vac 100 kAIC at 250 Vdc
• Voltage rating: 250 Vac, 250 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class RK1
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating With Indicator
• Special features: Indicating, High in-rush current motor protection
• UNSPSC Code: 39120000
• Application: Large distribution switchboards, power panelboards, motor control centers
• Brand: Bussmann by Eaton
• Dimensions: 1.10 in H X 1.10 in W X 5.88 in L
• Shape: RECTANGULAR
• Unit of Measure: EA
• AC Voltage Rating: 250 V AC
• Body Material: Melamine
• Compatible Fuse Block Series: HM250; RM250
• DC Voltage Rating: 250 V DC
• Element: Dual
• Fuse Block Style: Rejection
• Fuse Body Style: Blade
• Fuse Class or Type: RK1
• Interrupt Rating - AC: 300 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 1-3/32 in
• Overall Length: 5-7/8 in
• Speed: Time-Delay
• Standards: CE; CSA C22.2; CSA Class 1422-02; File 53787; File E4273; Guide JDDZ; No. 248.12; UL Special Purpose Guide JFHR
• Visual Indication: Indicating
• UNSPSC: 39121604
