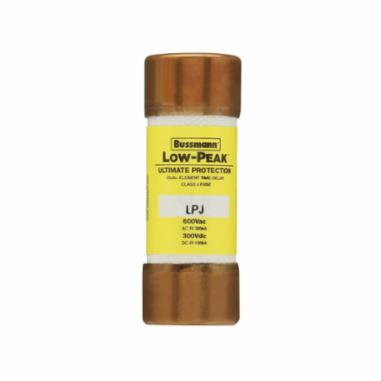

Bussmann LPJ-8SP Current Limiting Time Delay Fuse 8 A 600 VAC/300 VDC 100/300 kA Interrupt J Class

Product Description

The Bussmann LPJ-8SP is a current limiting time delay fuse designed to protect electrical circuits. This fuse operates at a rating of eight amperes with a voltage capacity of six hundred volts alternating current or three hundred volts direct current. It features a high interrupting rating of one hundred to three hundred kiloamps, making it suitable for various applications where overcurrent protection is critical.

• Current limiting design for enhanced safety
• Allows for high inrush load protection
• Compact cylindrical body fits standard holders

Product Highlights

The Bussmann Low-Peak™ LPJ-8SP fuse offers reliable overcurrent protection for electrical systems. It is ideal for motors and other equipment requiring a time delay function to accommodate startup inrush currents.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 8 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 100/300 kA
• Type: Current Limiting
• Class: J
• Body Type: Cylindrical
• Response Time: 10 s at 500%
• Mounting Type: Holder
• Material: Melamine
• Element: Dual
• Indicating: Non-Indicating
• Rejection: Non-Rejection
• Body Size: 0.81 in Dia x 2.25 in L
