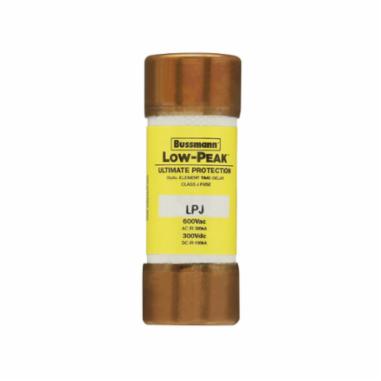

Bussmann LPJ-7SP Low-Peak Current Limiting Time Delay Fuse 7 A 600 VAC/300 VDC 100/300 kA

Product Description

The Bussmann LPJ-7SP is a Low-Peak current limiting time delay fuse, ideal for high inrush loads. This fuse has an amperage rating of seven Amps and operates at voltage ratings of 600 VAC and 300 VDC. With an interrupt rating of 100/300 kA, it ensures effective overcurrent protection.

• Current Limiting: Prevents excessive current from damaging downstream components.
• Time Delay: Provides a minimum of ten seconds of 500% rated current ride-through.
• Compact Design: The fuse features a cylindrical body with dimensions of 0.81 inches in diameter and 2.25 inches in length.

Product Highlights

The LPJ series fuses are designed for longevity and reliability in electrical systems. They offer a robust solution for motor controllers and other high-load applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 7 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 100/300 kA
• Class: J
• Response Time: 10 seconds at 500%
• Body Size: 0.81 inches diameter x 2.25 inches length
• Material: Melamine
• Terminal Type: Ferrule
• Mounting Type: Holder
• Type: Current Limiting
• Element Type: Dual
