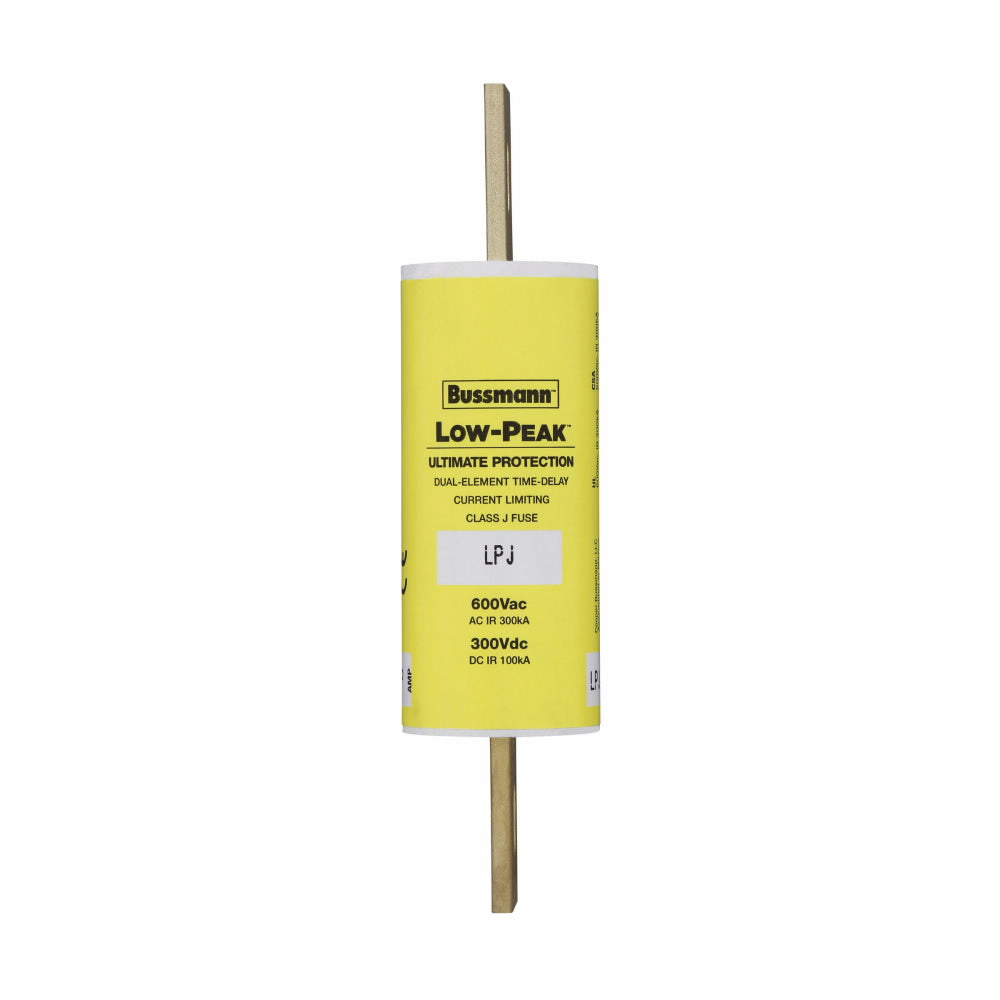

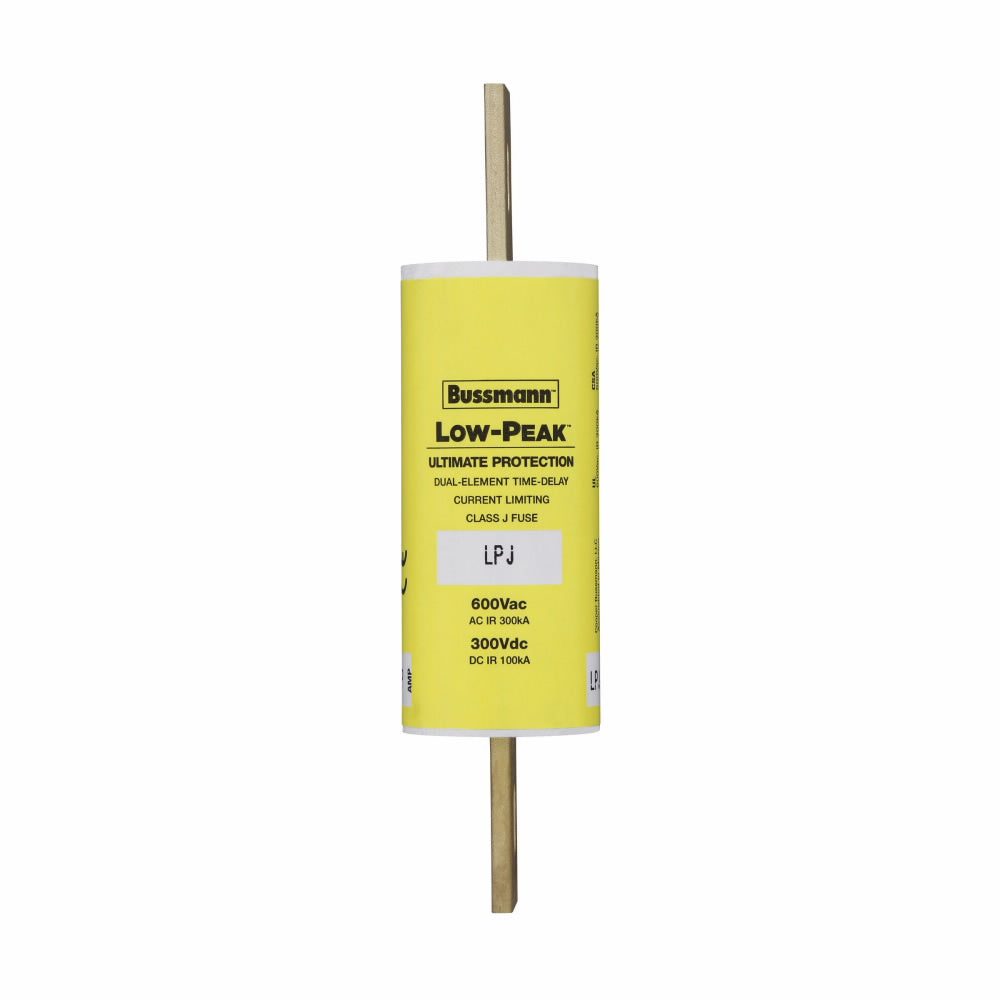

Bussmann LPJ-70SP 600V J TD FS

Product Description

The Bussmann LPJ-70SP is a Class J dual-element time-delay fuse. It is rated for seventy amps and can handle voltages of six hundred volts AC and three hundred volts DC. This current-limiting fuse is designed to protect electrical systems from overloads and short circuits.

• Interrupting rating of three hundred kilo-amperes at six hundred volts AC.
• Features a non-indicating, bolted blade terminal connection.
• Constructed with a durable melamine body.

Product Highlights

This fuse is ideal for various applications such as power panelboards and machinery disconnects.

Product Information

Standard Information

• Manufacturer: Bussmann
• Type: Non-Rejection, Current-Limiting

Technical Specifications

• Voltage Rating: 600 Volt AC, 300 Volt DC
• Amperage Rating: 70 Amp
• Interrupt Rating: 300 Kilo-Amp at 600 Volt AC, 100 Kilo-Amp at 300 Volt DC
• Size: 1.13 Inch Diameter x 4.63 Inch Length
• Body Style: Cylindrical
• Element Type: Dual
• Response Time: 10 sec at 500% Rated Load
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
