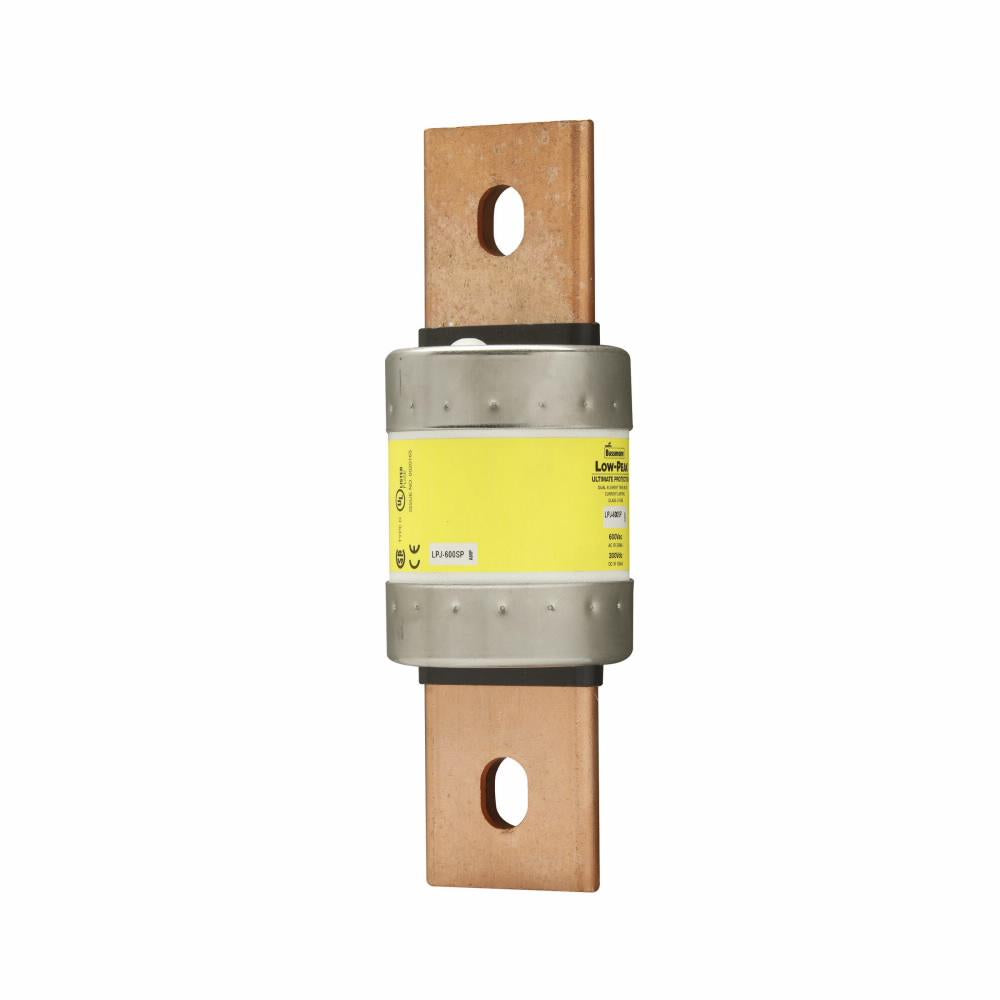

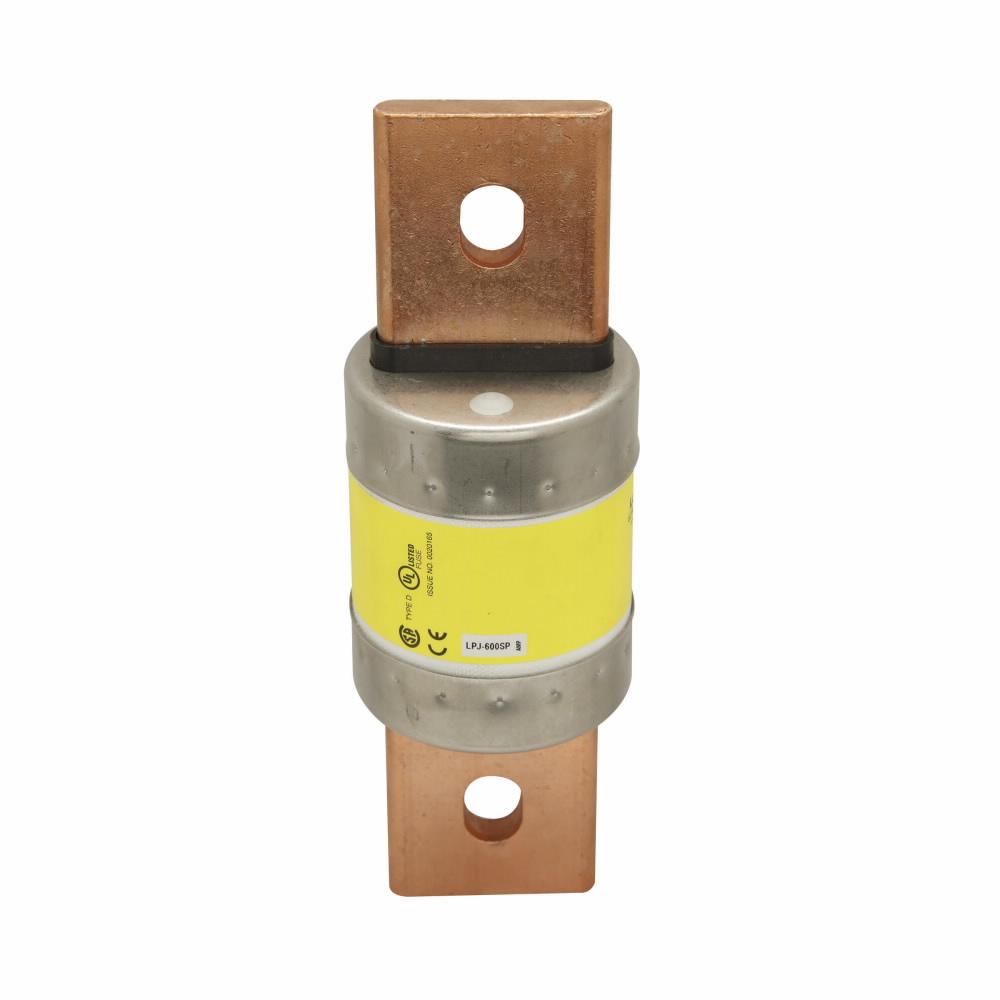

Bussmann LPJ-600SP Current Limiting Time Delay Fuse 600 A 600 VAC/300 VDC

Product Description

The Bussmann LPJ-600SP is a current limiting time delay fuse designed for high performance. With a rating of six hundred amps and capable of handling six hundred volts AC and three hundred volts DC, this fuse is suited for demanding applications. It features a dual-element design and is categorized as a Class J fuse, making it ideal for use in various high inrush load scenarios.

• Current limiting with a ten second delay at five hundred percent rated current.
• High interrupting capacity of three hundred kA at six hundred volts alternating current.
• Compact cartridge body is easy to install and handle.

Product Highlights

Designed to protect sensitive electrical components from overloads and short circuits, the LPJ-600SP offers exceptional reliability in electric systems.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 100/300 kA
• Body Size: 2.6 in Dia x 8 in L
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Response Time: 10 s at 500%
