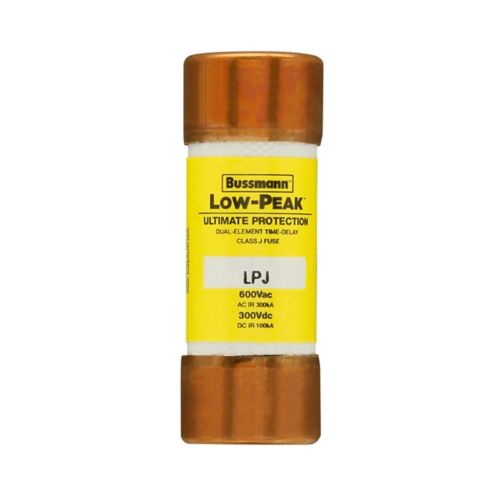

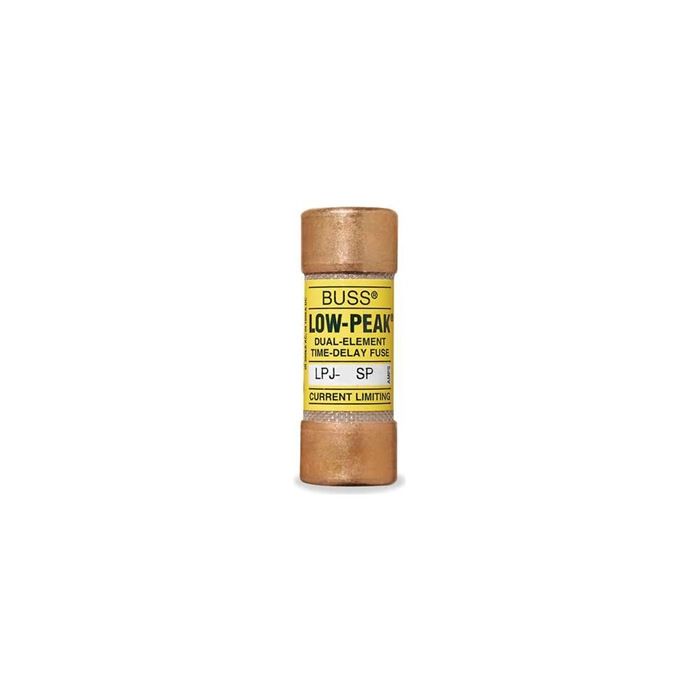

Bussmann LPJ-5-6/10SP LPJ Fuse 5.60A

Product Description

The BUSSMANN LPJ-5-6/10SP is an Eaton Bussmann Series Class J fuse. This time-delay, dual-element, current limiting fuse has a 5.6 A amperage rating and a 300 kA interrupting rating at 600 Vac and 100 kA at 300 Vdc. It provides high in-rush current motor protection.

• Non-indicating
• High in-rush current motor protection
• Time delay

Product Highlights

The BUSSMANN LPJ-5-6/10SP fuse is ideal for specialized circuits and industrial control. It offers a 10 sec response time at 500%.

Product Information

Standard Information

• Brand: BUSSMANN
• Manufacturer Part Number: LPJ-5-6/10SP
• Country of Origin: MX - Mexico

Technical Specifications

• Product Name: Eaton Bussmann series LPJ fuse
• Catalog Number: LPJ-5-6/10SP
• UPC: 051712522793
• EAN: 5027590101653
• Product Length/Depth: 0.81 in
• Product Height: 2.25 in
• Product Width: 0.81 in
• Product Type: Fuse
• Amperage Rating: 5.60A
• Interrupt rating: 100 kAIC Vdc 300 kAIC at 600 Vac
• Response time: 10 sec at 500%
• Voltage rating: 600 Vac, 300 Vdc
• Fuse type: Time delay Current-limiting
• Number of elements: Dual
• Packaging type: Standard
• Class: Class J
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating, High in-rush current motor protection
• Amps: 5 6/10
• Volts AC: 600
• Time Delay: 10 Second (Minimum) at 500% Rating
• Element: Dual Element
• Physical Size: 0.81" x 2.25"
• Current Limitation: High Degree
• Interrupting Rating: 300,000 AIC RMS @ 600VAC
• DC Interrupting Rating: 100,000 AIC
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• UL Listed: Special Purpose, Guide JFHR, File E56412
• CSA Certified: 200,000 AIR, Class J per CSA 22.2 No. 248.8, Class 1422-02, File 53787
• ECCN: EAR99
• Application: Specialized circuits and industrial control
• Fuse Interrupt Rating: 300 kAIC at 600V ac
• Fuse Type: Time Delay, Current-Limiting
• Rated Voltage: 600V ac/300V dc
• Shape: Rectangular
• Fuse Amps: 5.60A
• Length: 0.81 in.
• Height: 2.25 in.
• Width: 0.81 in.
