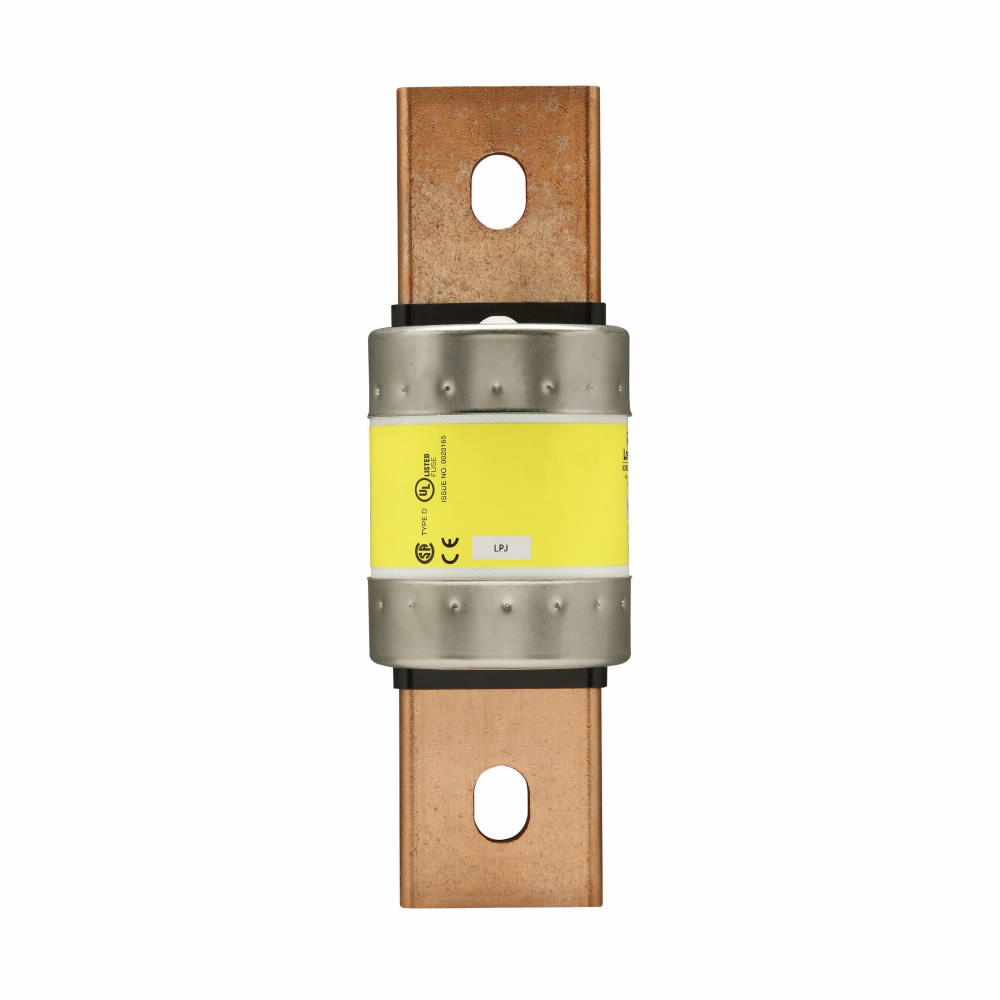

Bussmann LPJ-450SP Class J Low Peak Fuse

Product Description

The Bussmann series LPJ-450SP Class J Low Peak Fuse is designed for reliable overcurrent protection. With an amperage rating of four hundred fifty amps, this dual-element fuse is current-limiting and time-delay. It features bolted blade ends for secure connections and is suitable for various applications including branch circuit breaker panelboards and industrial controls.

• Amperage rating: 450 Amp
• Voltage ratings: 600 Volt AC and 300 Volt DC
• Interrupting rating: 100 kAIC at 300 Volt DC, 300 kAIC at 600 Volt AC

Product Highlights

This fuse is ideal for protecting machinery disconnects and power panelboards. Its response time is ten seconds at five hundred percent load, ensuring safety in high-demand environments.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPJ-450SP

Technical Specifications

• Type: Current Limiting, Time-Delay
• Diameter: 2.6 Inch
• Length: 8 Inch
• Width: 2.5 Inch
• Height: 2.5 Inch
• Weight: 2.65 lb
• End Type: Blade, Bolted
• Standards: CE, CSA C22.2, UL
• Applications: Branch Circuit Breaker Panelboard Mains, Industrial Control, Machinery Disconnects, Power Panelboards
